Cooling Fan: Notes

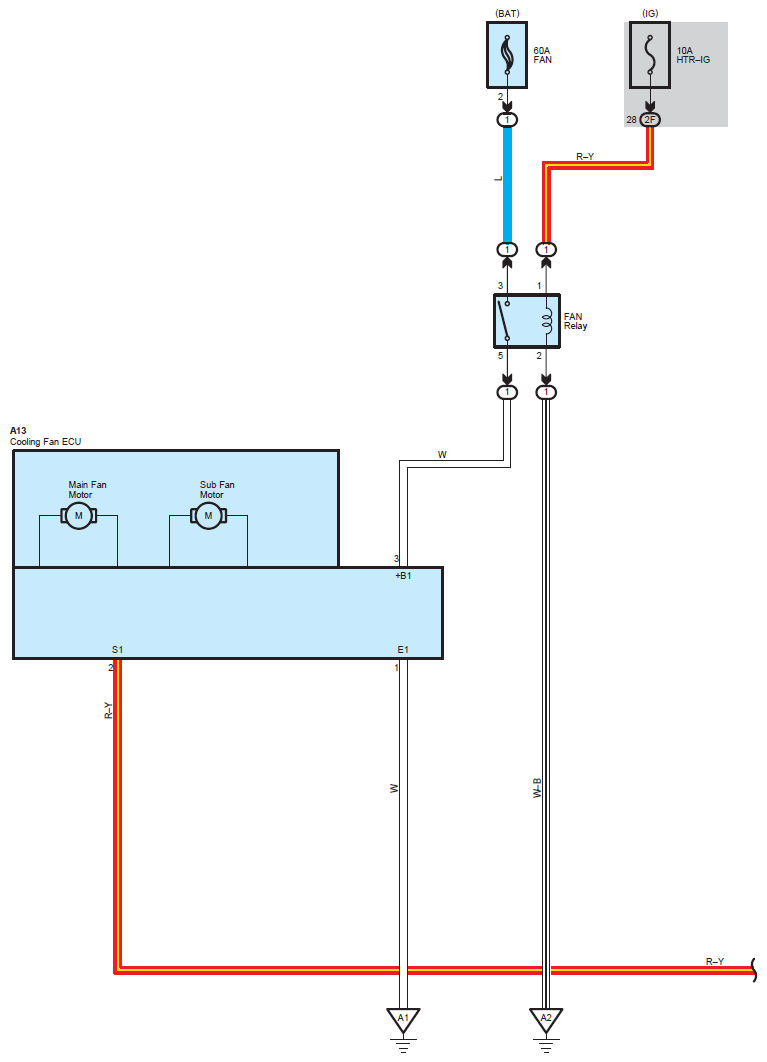

Fig 1: Cooling Fan System Wiring Diagram (1 Of 6)
G07113158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

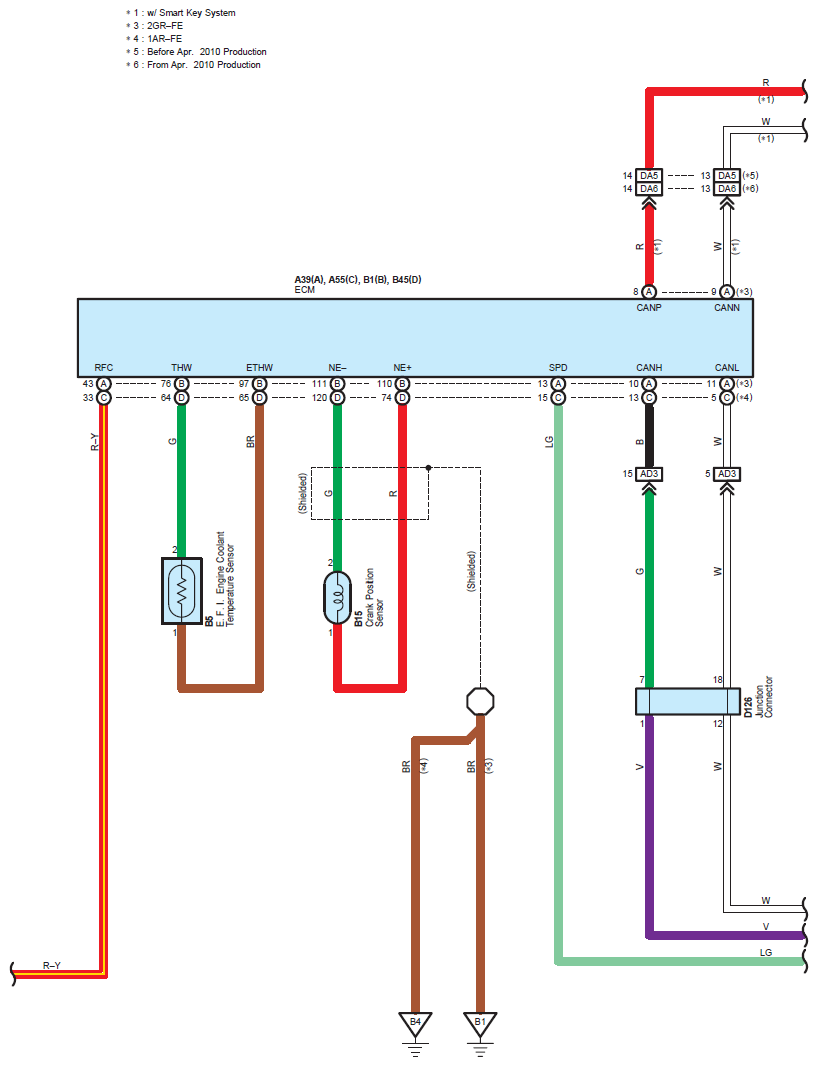

Fig 2: Cooling Fan System Wiring Diagram (2 Of 6)
G07113159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

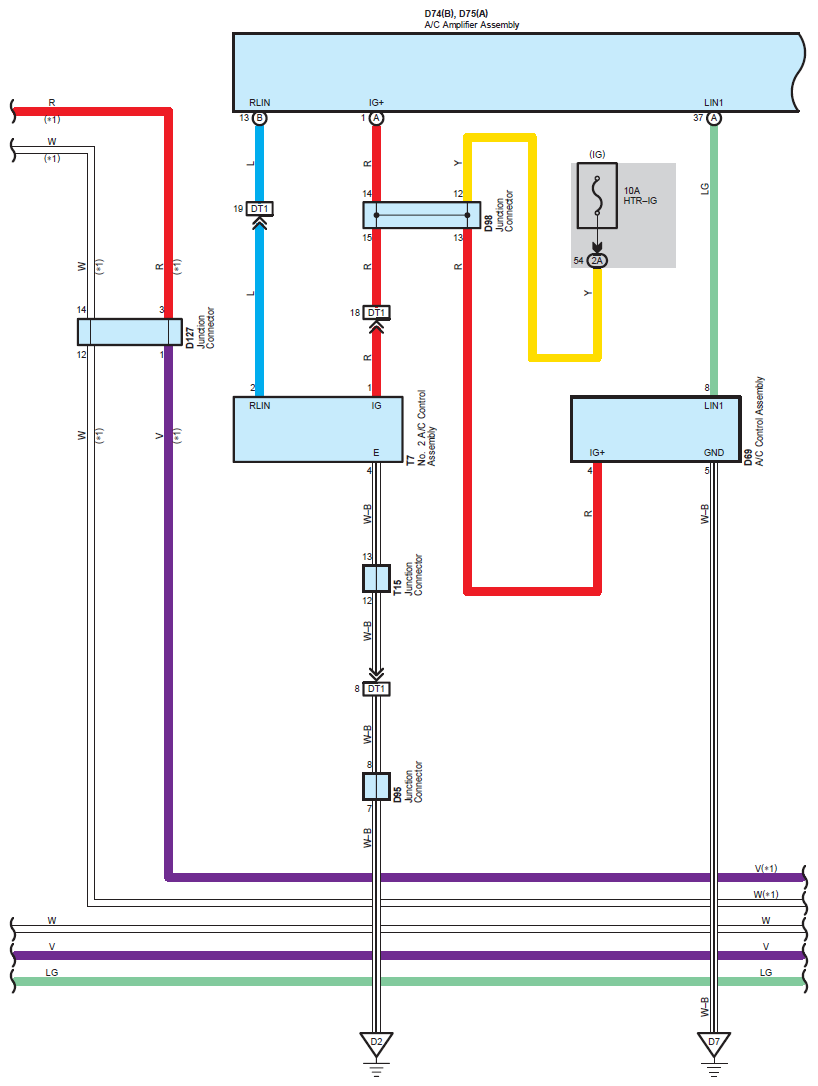

Fig 3: Cooling Fan System Wiring Diagram (3 Of 6)
G07113160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

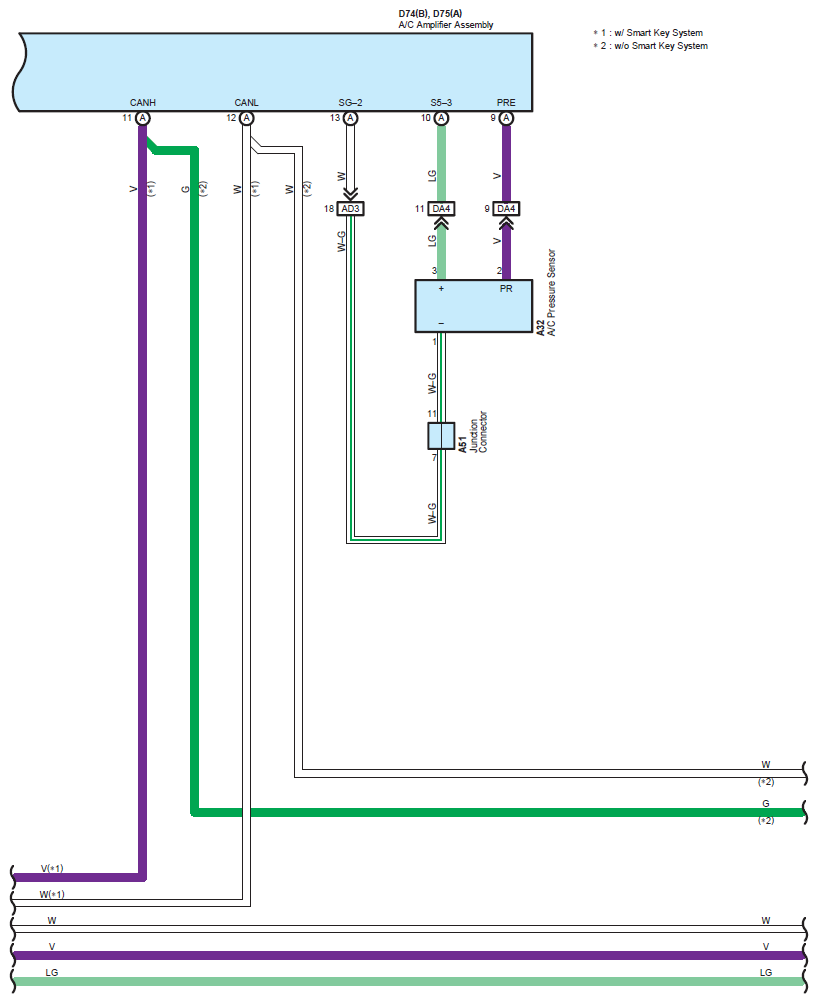

Fig 4: Cooling Fan System Wiring Diagram (4 Of 6)
G07113161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

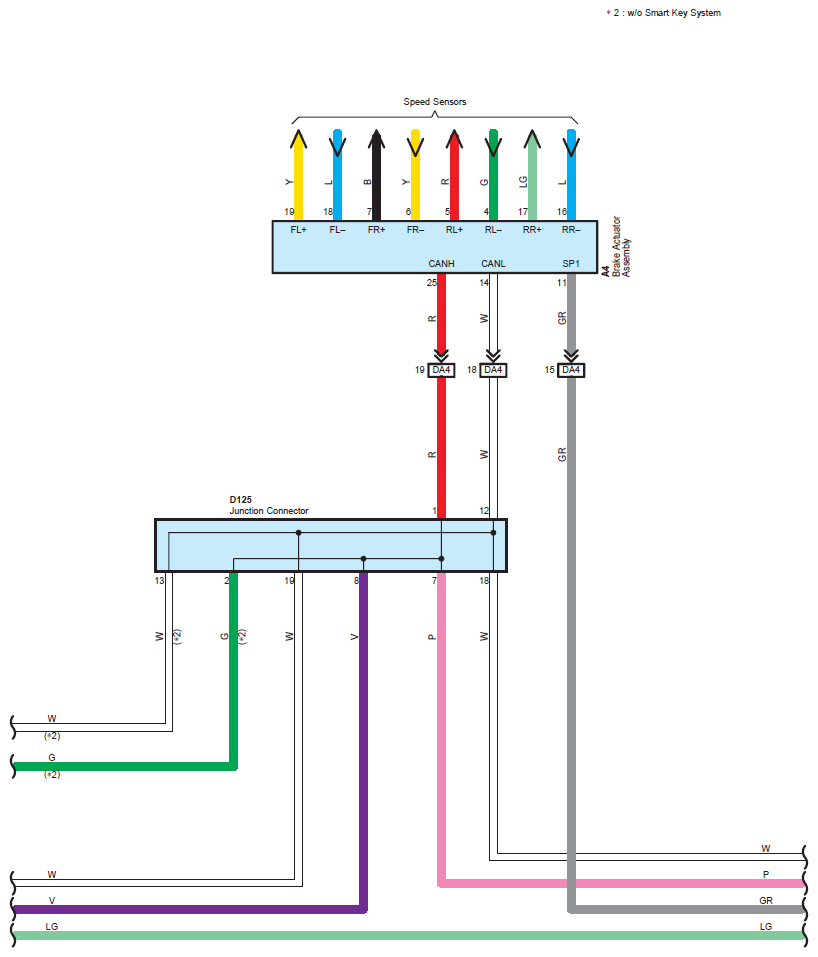

Fig 5: Cooling Fan System Wiring Diagram (5 Of 6)
G07113162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

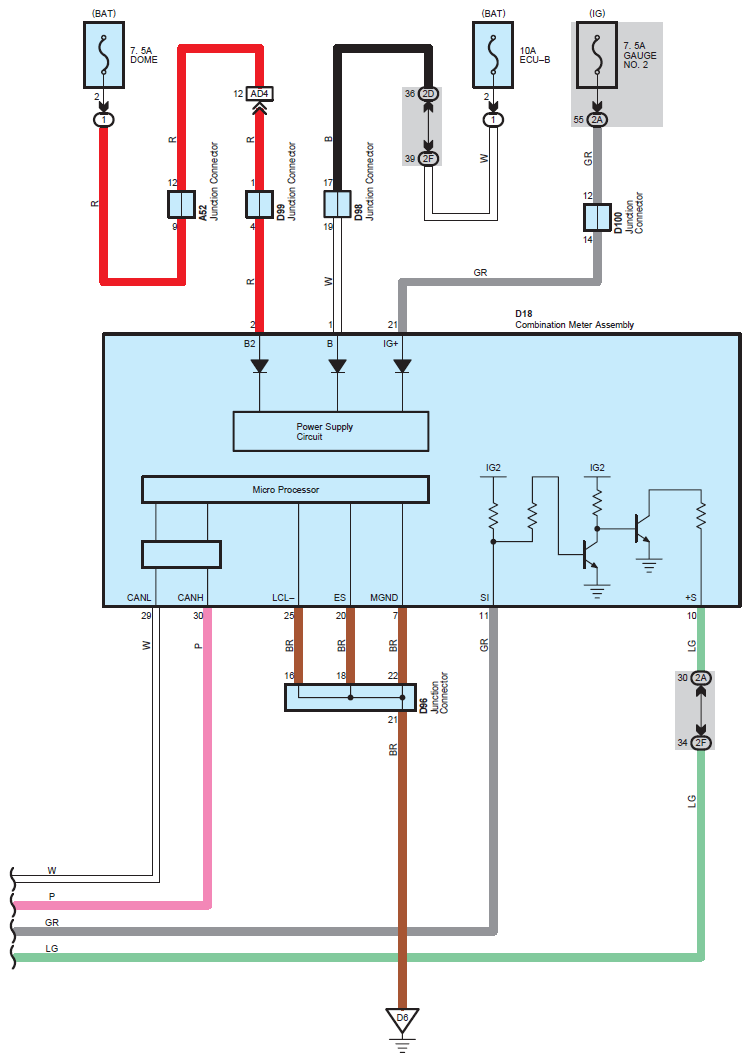

Fig 6: Cooling Fan System Wiring Diagram (6 Of 6)
G07113163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
