Power Rear Quarter Window: Notes

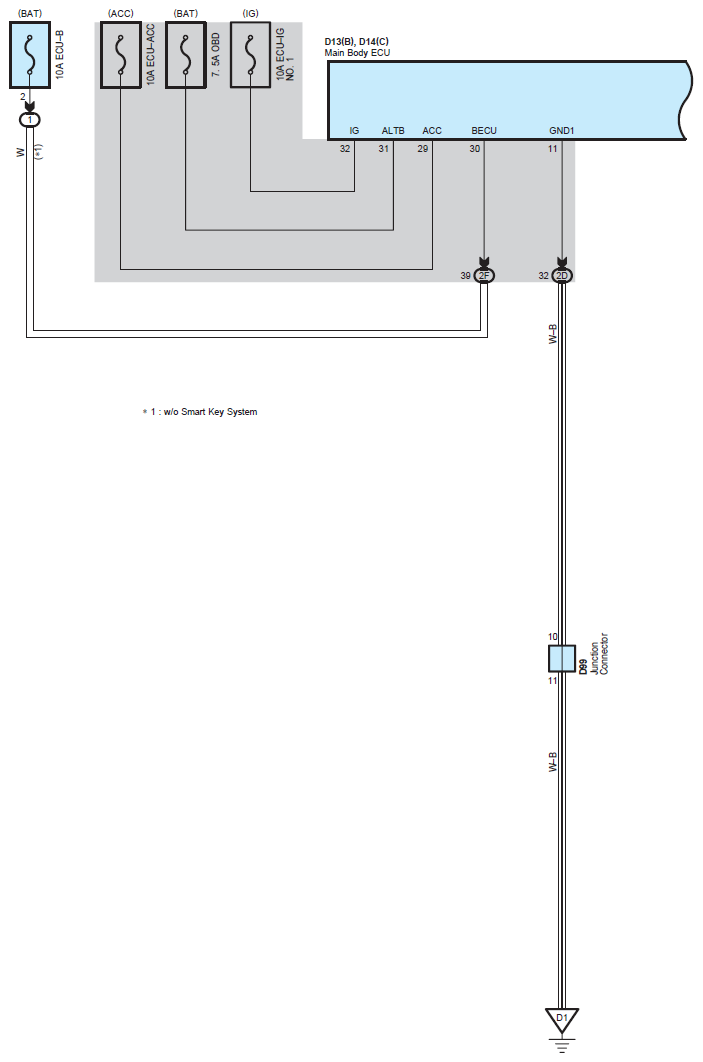

Fig 1: Power Rear Quarter Window System Wiring Diagram (1 Of 2)
G07112991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

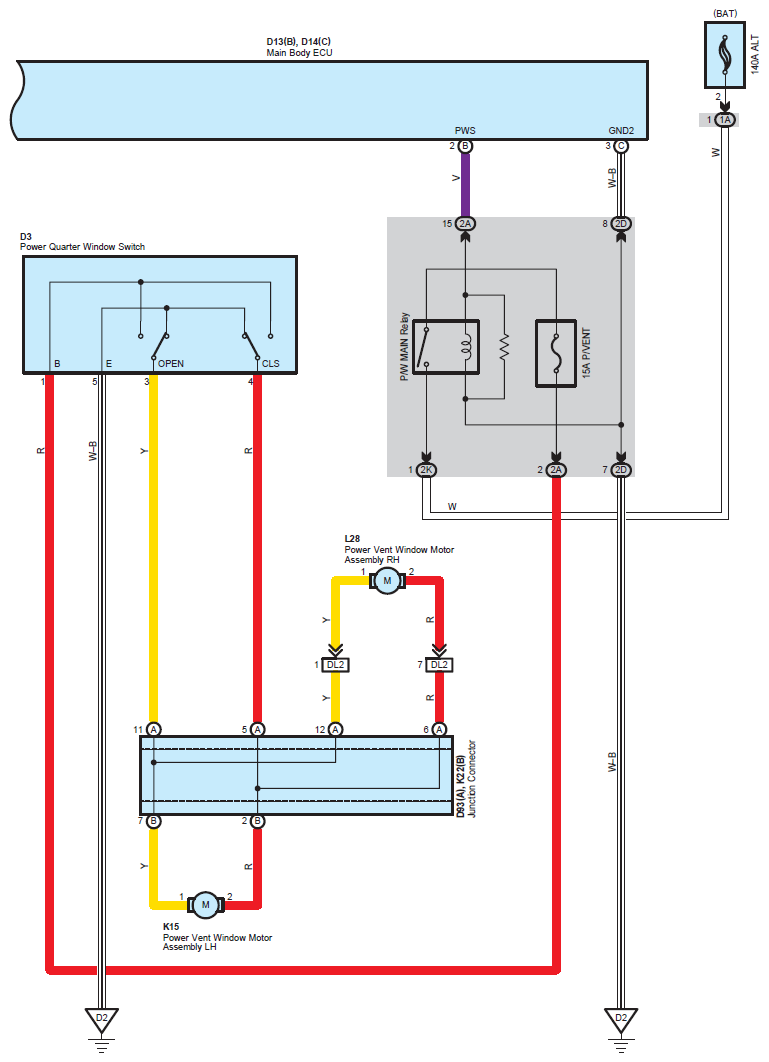

Fig 2: Power Rear Quarter Window System Wiring Diagram (2 Of 2)
G07112992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
