Driver Side Power Window does not Operate with Power Window Master Switch: Procedure

  1. INSPECT FUSE (D FR P/W)
    1. Remove the D FR P/W fuse from the driver side J/B.
    2. Check the resistance.

      Standard Resistance

      Below 1 Ω

    3. Reinstall the D FR P/W fuse.

    NG → REPLACE FUSE

    OK: Go to next step

  2. CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
    1. Turn the ignition switch to ON.
    2. Measure the voltage.

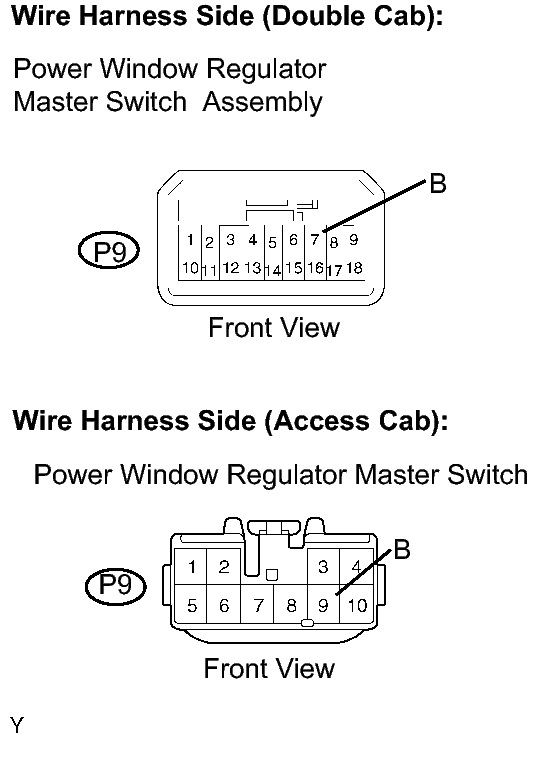

      Fig 1: Identifying Power Window Regulator Master Switch Assembly Connector Terminals
      GTY175620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage (Double cab)

      Tester Connection Condition Specified Condition
      P9-7 (B) - Body ground Ignition switch ON 10 to 14 V

      Standard Voltage (Access cab)

      Tester Connection Condition Specified Condition
      P9-9 (B) - Body ground Ignition switch ON 10 to 14 V

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (DRIVER SIDE J/B - REGULATOR MASTER SWITCH)

    OK: Go to next step

  3. CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY LH
    1. Disconnect the P9 power window regulator master switch connector.
    2. Using a service wire, connect the terminals according to the table below.
    3. Turn the ignition switch to ON.
    4. Check the operation of the power window regulator motor assembly LH.

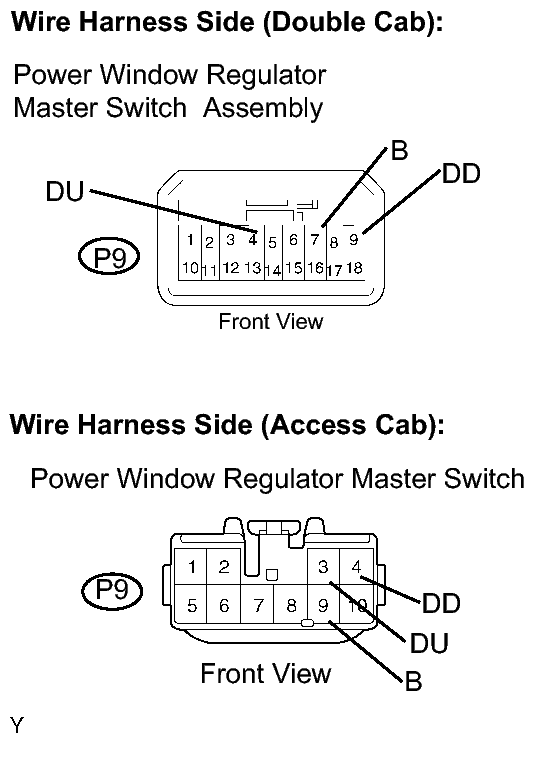

      Fig 2: Identifying Power Window Regulator Master Switch Assembly LH Connector Terminals
      GTY196262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK (Double cab)

      Wire Connection Specified Condition
      P9-4 (DU) - P9-7 (B)
      P9-9 (DD) - Body ground      		 Power window moves UP
      P9-4 (DU) - Body ground
      P9-7 (B) - P9-9 (DD)      		 Power window moves DOWN

      OK (Access cab)

      Wire Connection Specified Condition
      P9-3 (DU) - P9-9 (B)
      P9-4 (DD) - Body ground      		 Power window moves UP
      P9-3 (DU) - Body ground
      P9-9 (B) - P9-4 (DD))      		 Power window moves DOWN
    5. Reconnect the power window regulator master switch connector.

    OK → REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

    NG: Go to next step

  4. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (SWITCH OPERATION)
    1. Remove the power window regulator master switch.
    2. Disconnect the P9 power window regulator master switch connector.
    3. Measure the resistance between the terminals of the connector when the switch is operated.
      Fig 3: Identifying Power Window Regulator (Switch Operation) Connector Terminals
      GTY196261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard (Double cab)

      Tester Connection AUTO Switch Specified Condition
      P9-1 (E) - P9-9 (DD)
      P9-4 (DU) - P9-7 (B)      		 UP Below 1 Ω
      P9-1 (E) - P9-4 (DU)
      P9-1 (E) - P9-9 (DD)      		 OFF Below 1 Ω
      P9-1 (E) - P9-4 (DU)
      P9-7 (B) - P9-9 (DD)      		 DOWN Below 1 Ω

      Standard (Access cab)

      Tester Connection AUTO Switch Specified Condition
      P9-1 (E) - P9-4 (DD)
      P9-3 (DU) - P9-9 (B)      		 UP Below 1 Ω
      P9-1 (E) - P9-3 (DU)
      P9-1 (E) - P9-4 (DD)      		 OFF Below 1 Ω
      P9-1 (E) - P9-3 (DU)
      P9-9 (B) - P9-4 (DD)      		 DOWN Below 1 Ω
    4. Reconnect the power window regulator master switch connector.
    5. Reinstall the power window regulator master switch.

    NG → REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

    OK: Go to next step

  5. CHECK HARNESS AND CONNECTOR (REGULATOR MASTER SWITCH - REGULATOR MOTOR AND BODY GROUND)
    1. Disconnect the P9 power window regulator master switch connector.
    2. Disconnect the P10 power window regulator motor connector.
    3. Measure the resistance.

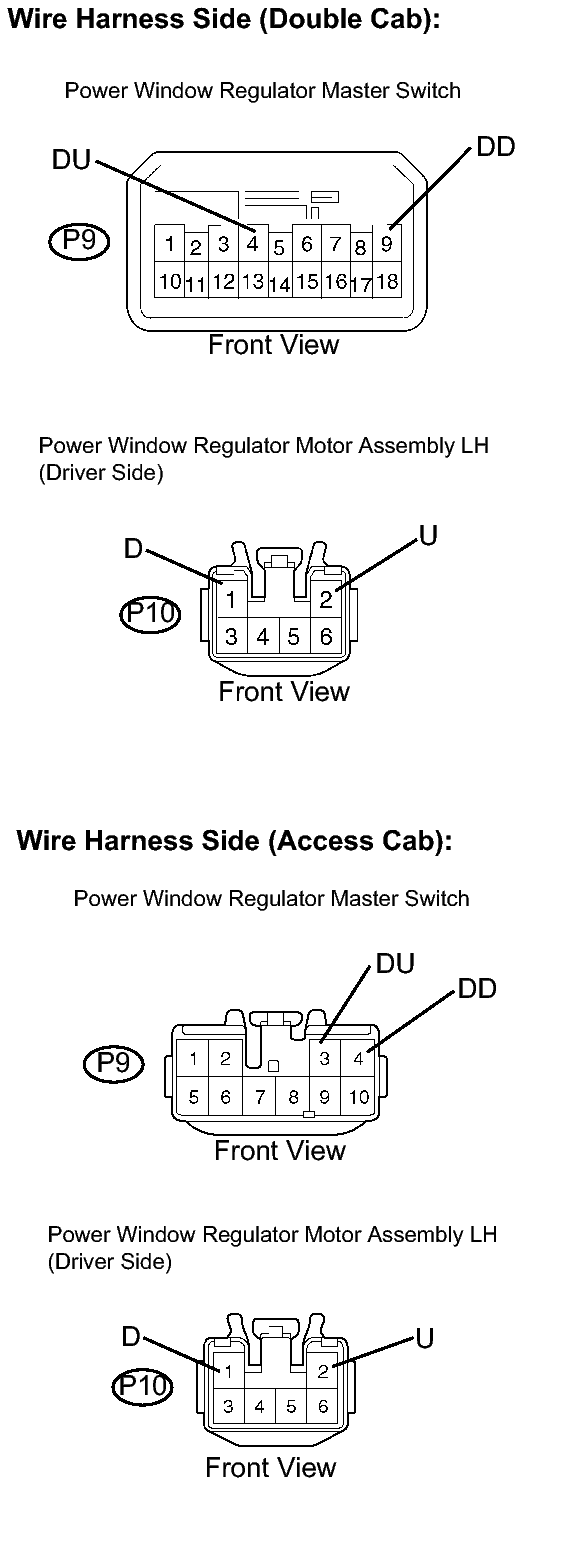

      Fig 4: Identifying Power Window Regulator Master Switch Assembly Connector Terminals
      GTY196260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard (Double cab)

      Tester Connection Specified Condition
      P9-9 (DD) - P10-1 (D) Below 1 Ω
      P9-4 (DU) - P10-2 (U) Below 1 Ω
      P9-9 (DD) - Body ground 10 kΩ or higher
      P9-4 (DU) - Body ground 10 kΩ or higher

      Standard (Access cab)

      Tester Connection Specified Condition
      P9-4 (DD) - P10-1 (D) Below 1 Ω
      P9-3 (DU) - P10-2 (U) Below 1 Ω
      P9-4 (DD) - Body ground 10 kΩ or higher
      P9-3 (DU) - Body ground 10 kΩ or higher
    4. Reconnect the power window regulator master switch connector.
    5. Reconnect the power window regulator motor connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  6. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH
    1. Remove the power window regulator motor.
    2. Apply battery voltage to connector terminals 1 and 2.
    3. Check that the motor smoothly rotates.
      Fig 5: Checking If Motor Rotates Smoothly
      GTY195410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not apply battery voltage to any terminals except terminals 1 and 2.

      OK

      Terminal No. Specified Condition
      Battery positive (+) → 2
      Battery negative (-) → 1      		 Motor gear rotates clockwise
      Battery positive (+) → 1
      Battery negative (-) → 2      		 Motor gear rotates counterclockwise
    4. Reinstall the power window regulator motor.

    NG → REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

    OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (MASTER SWITCH - REGULATOR SWITCH)
