Engine Control (2TR-FE): Notes

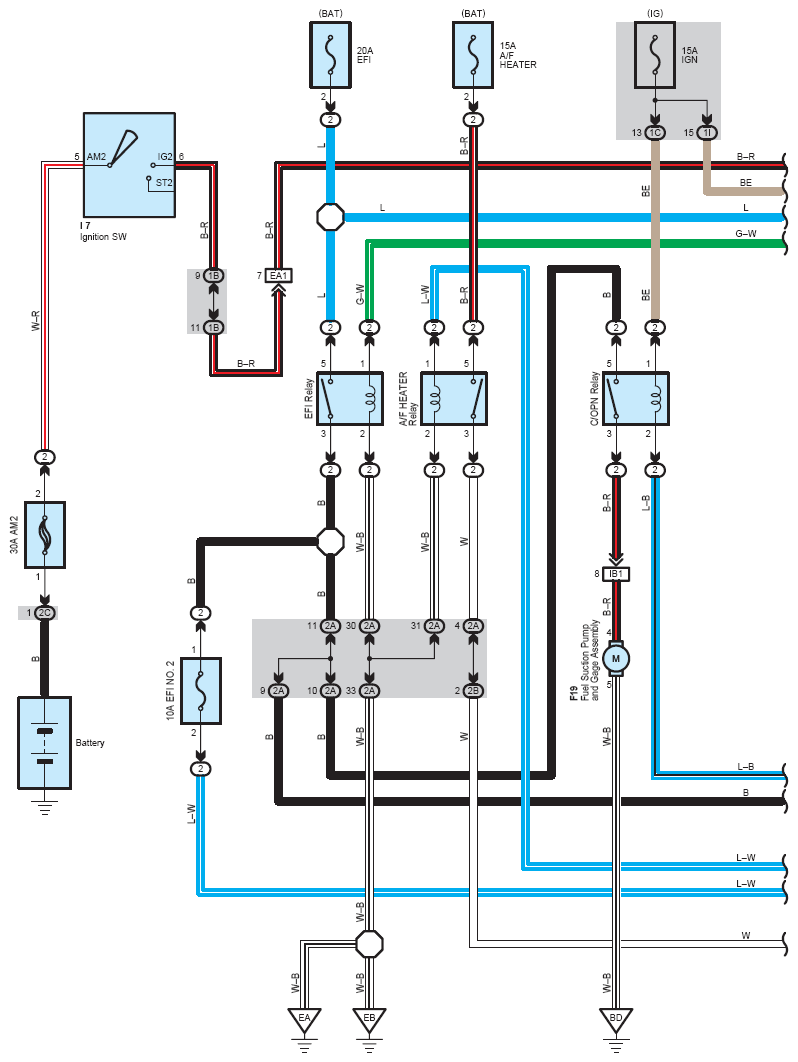

Fig 1: Engine Control (2TR-FE) System Wiring Diagram (1 Of 9)
G07117211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

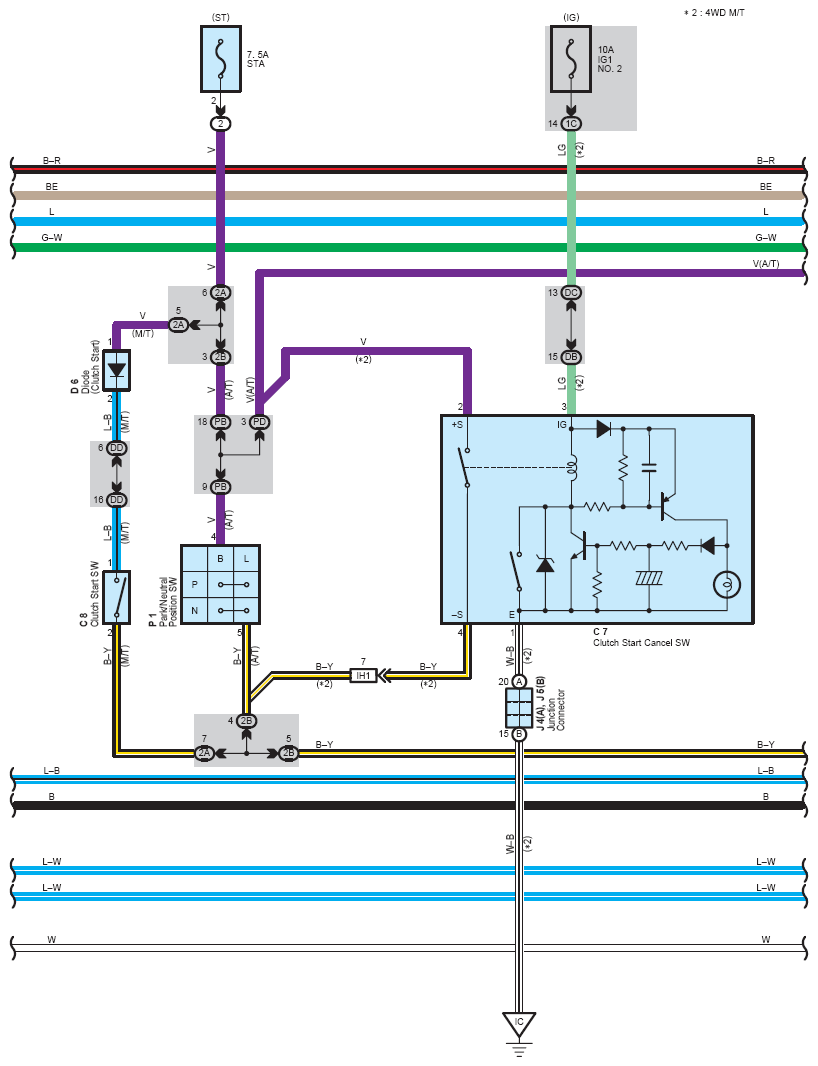

Fig 2: Engine Control (2TR-FE) System Wiring Diagram (2 Of 9)
G07117212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

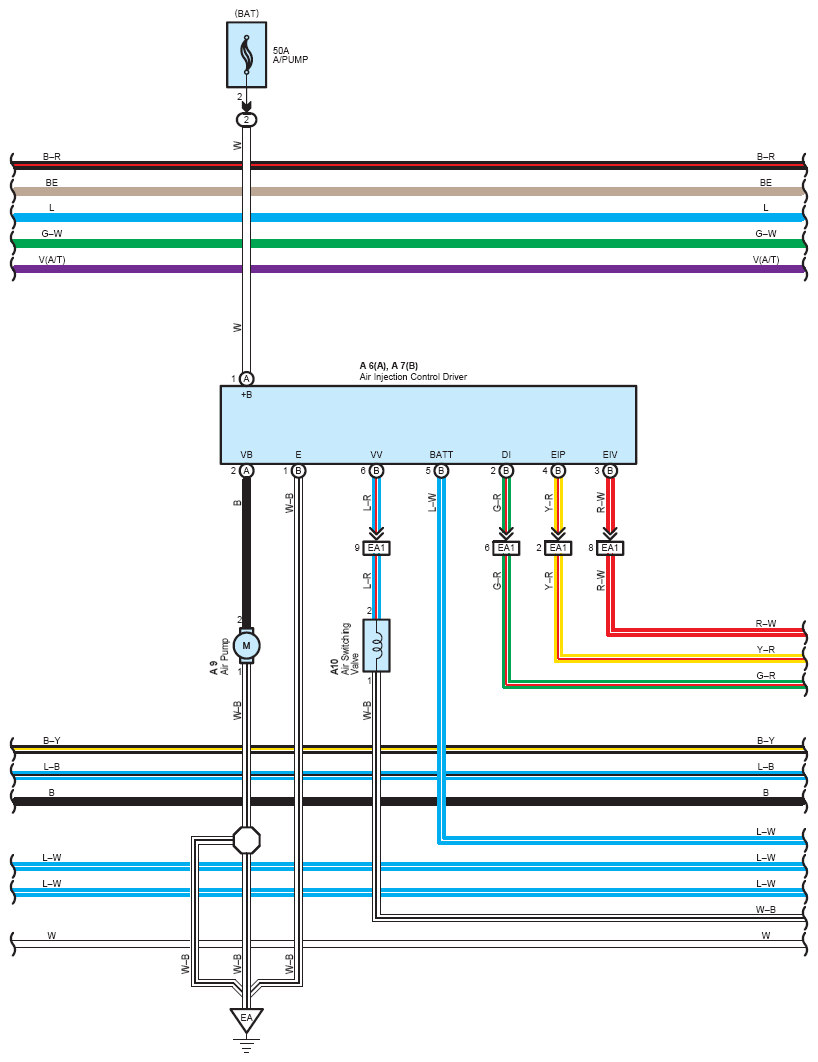

Fig 3: Engine Control (2TR-FE) System Wiring Diagram (3 Of 9)
G07117213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

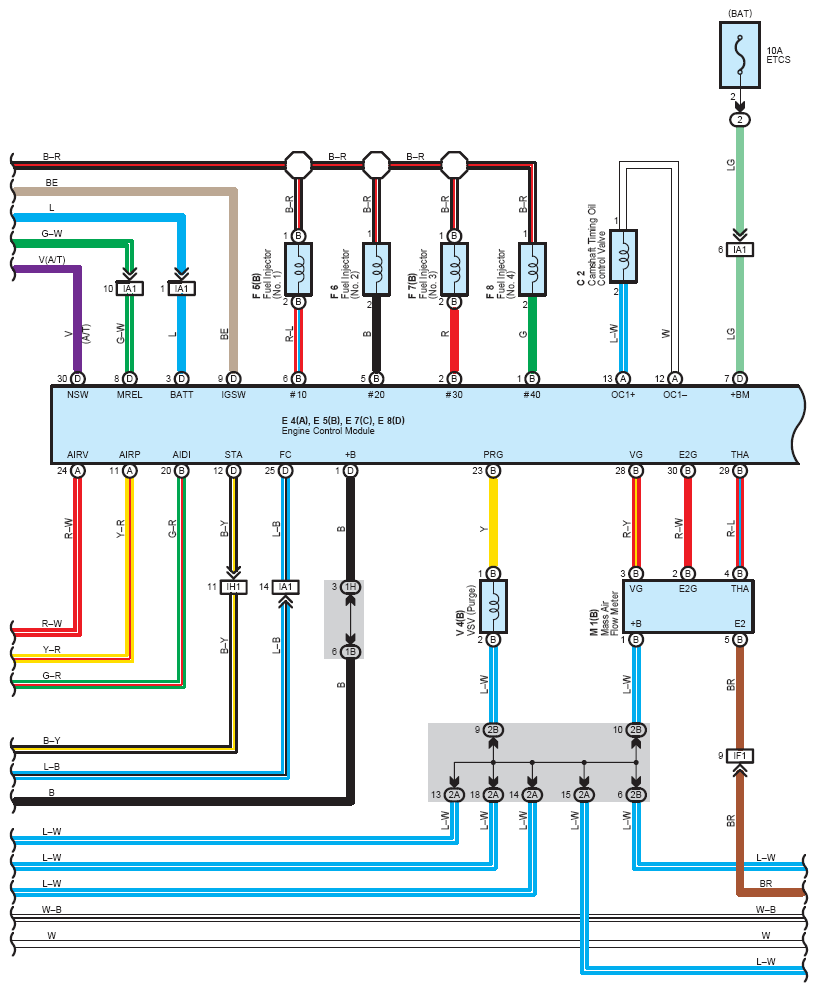

Fig 4: Engine Control (2TR-FE) System Wiring Diagram (4 Of 9)
G07117214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

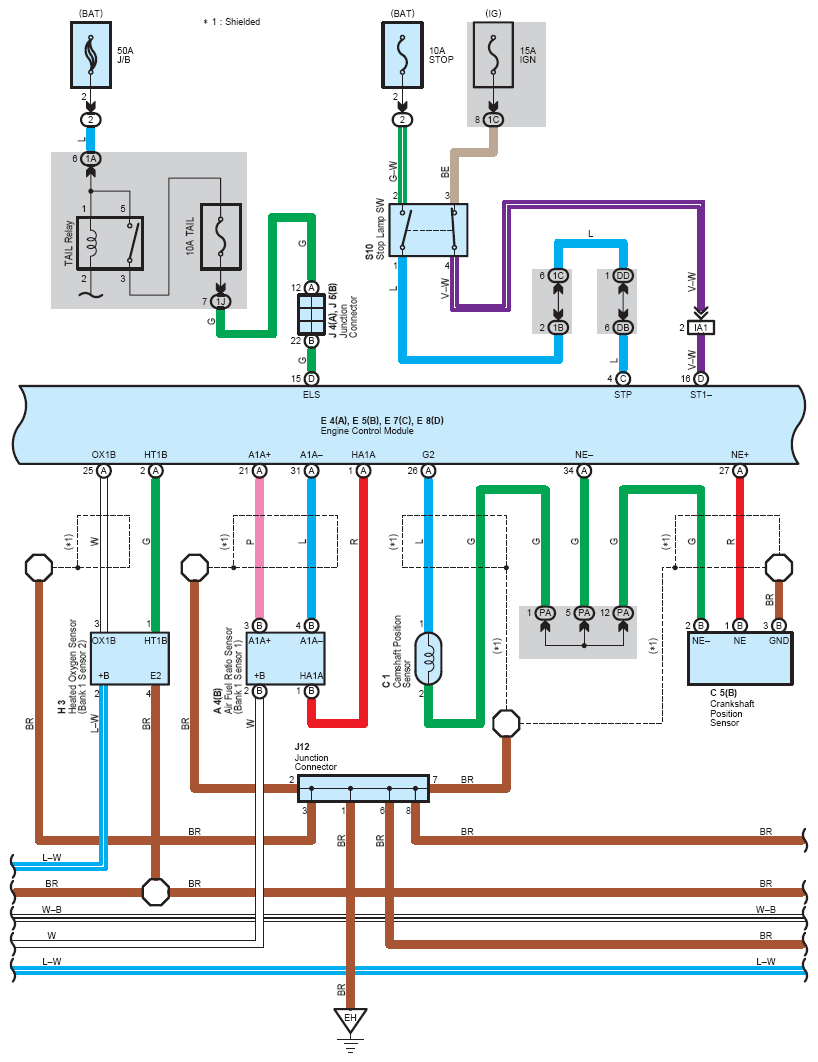

Fig 5: Engine Control (2TR-FE) System Wiring Diagram (5 Of 9)
G07117215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

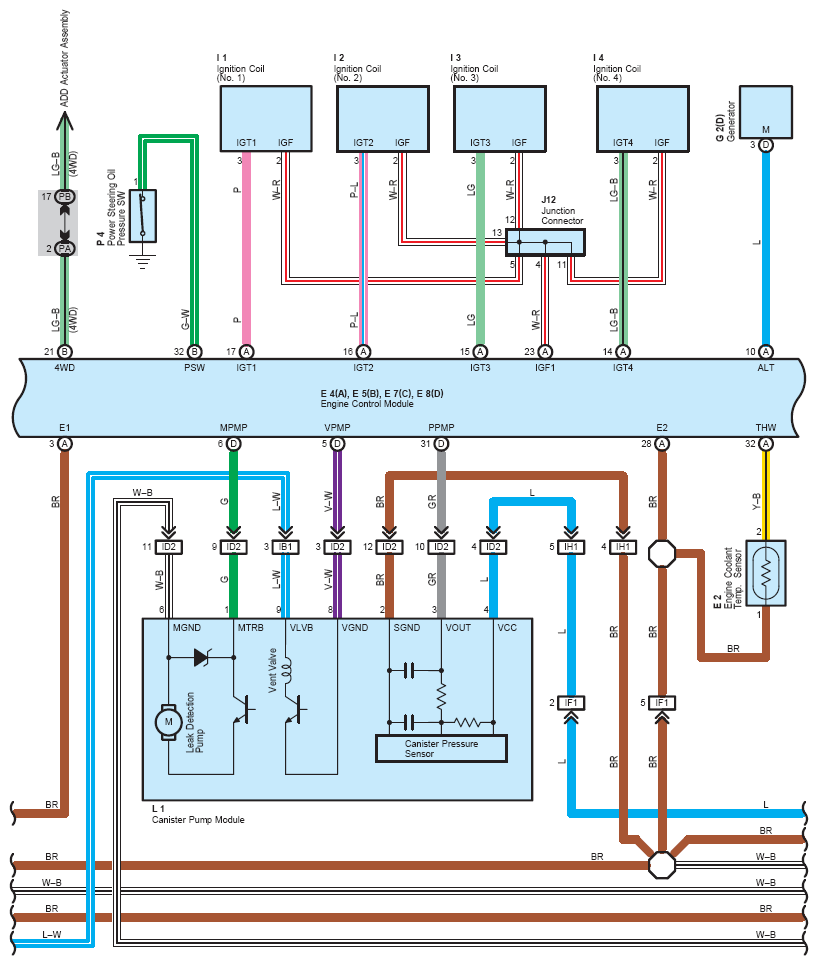

Fig 6: Engine Control (2TR-FE) System Wiring Diagram (6 Of 9)
G07117216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

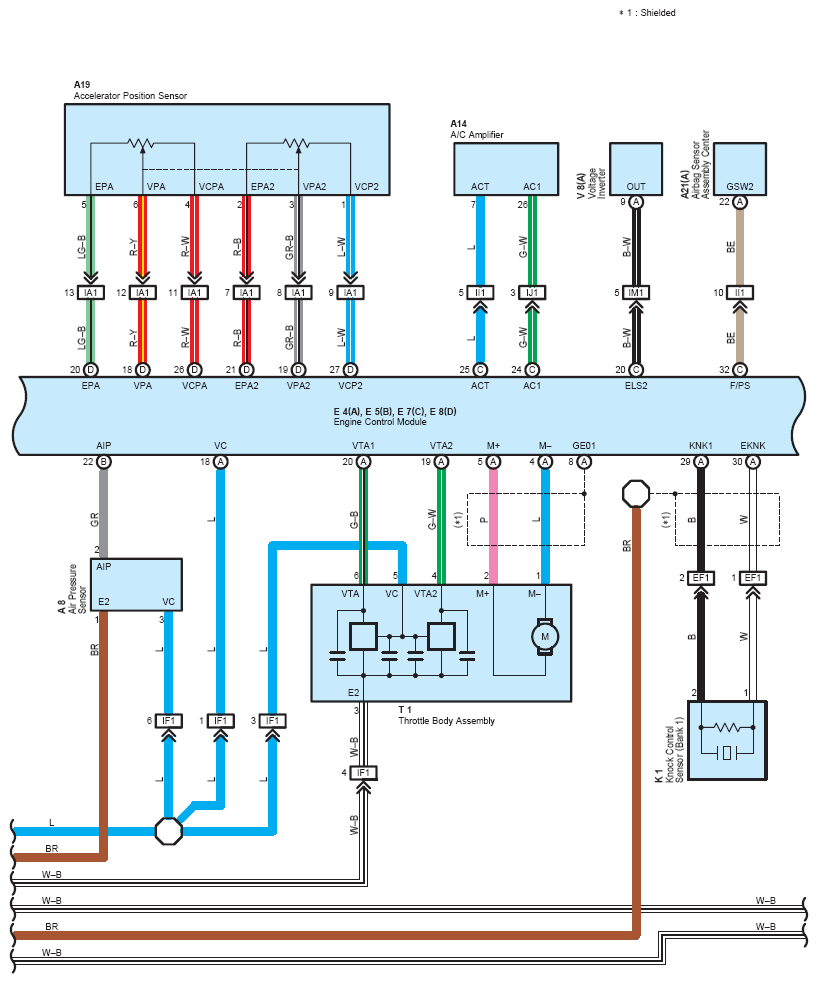

Fig 7: Engine Control (2TR-FE) System Wiring Diagram (7 Of 9)
G07117217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

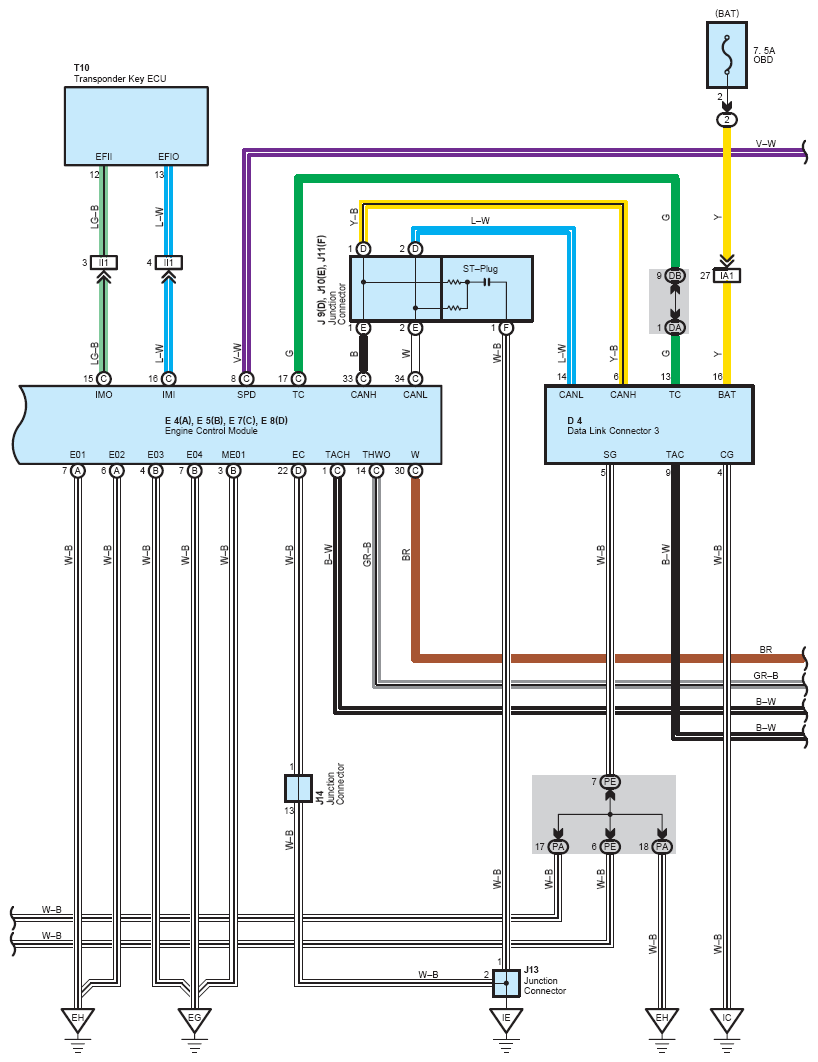

Fig 8: Engine Control (2TR-FE) System Wiring Diagram (8 Of 9)
G07117218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

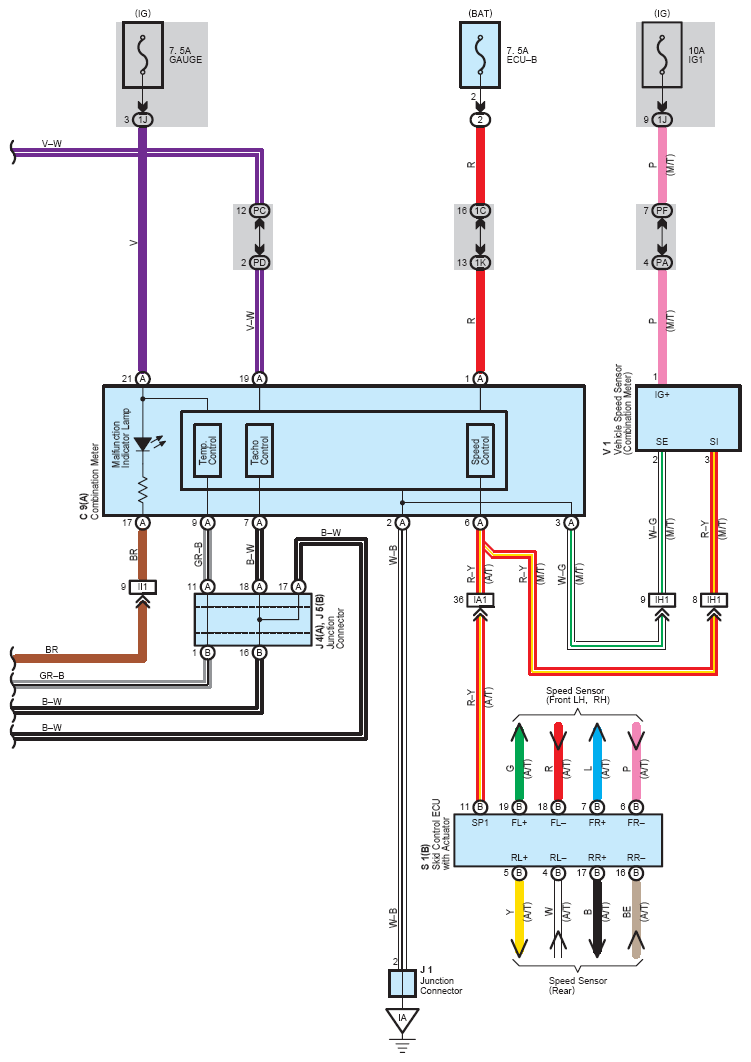

Fig 9: Engine Control (2TR-FE) System Wiring Diagram (9 Of 9)
G07117219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
