Engine Immobiliser System (2TR-FE): Notes

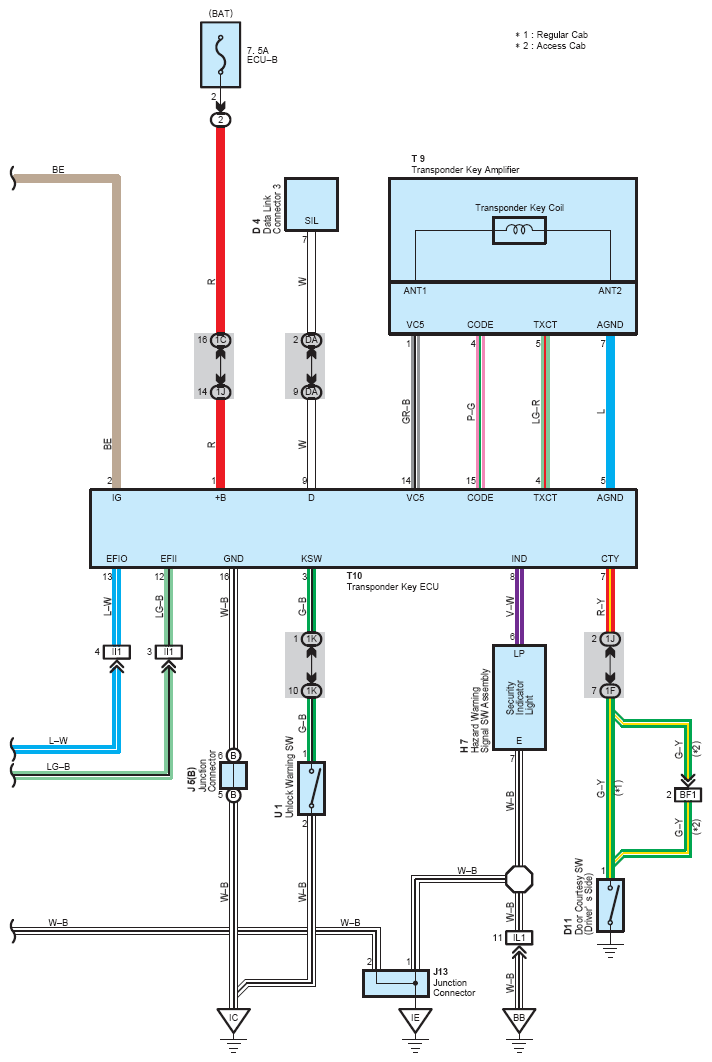

Fig 1: Engine Immobiliser System (2TR-FE) Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

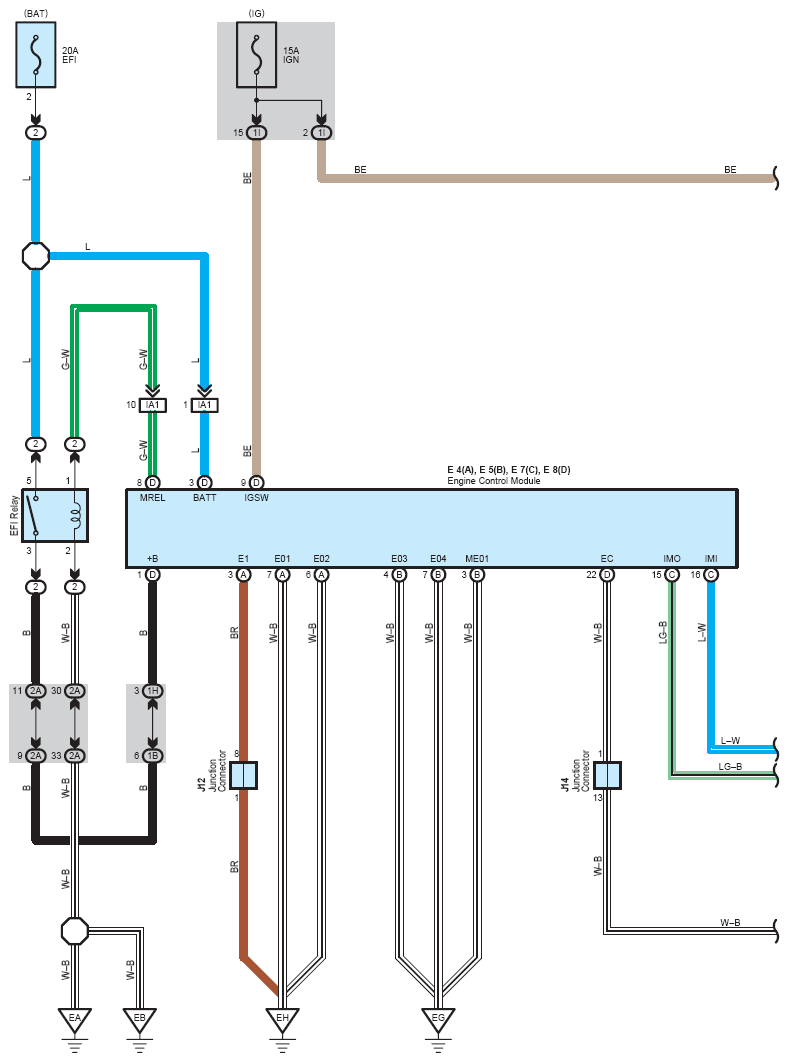

Fig 2: Engine Immobiliser System (2TR-FE) Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
