Power Outlet (115V): Notes

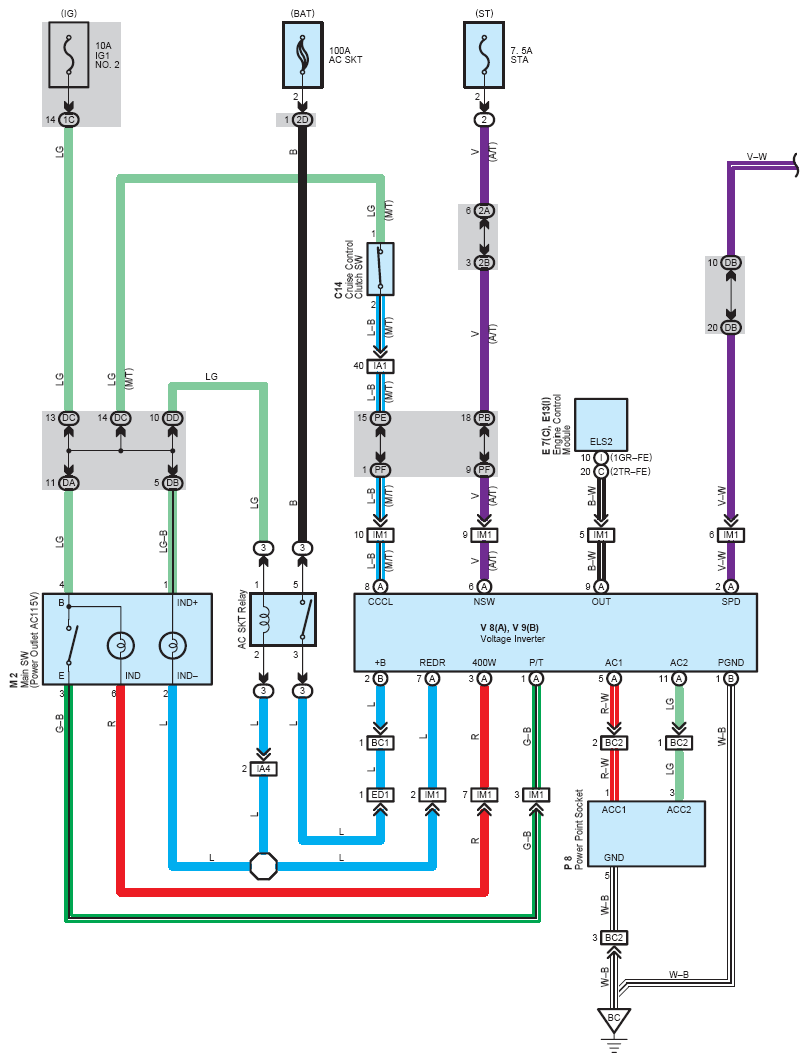

Fig 1: Power Outlet (115V) Wiring Diagram (1 Of 2)
G07117305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

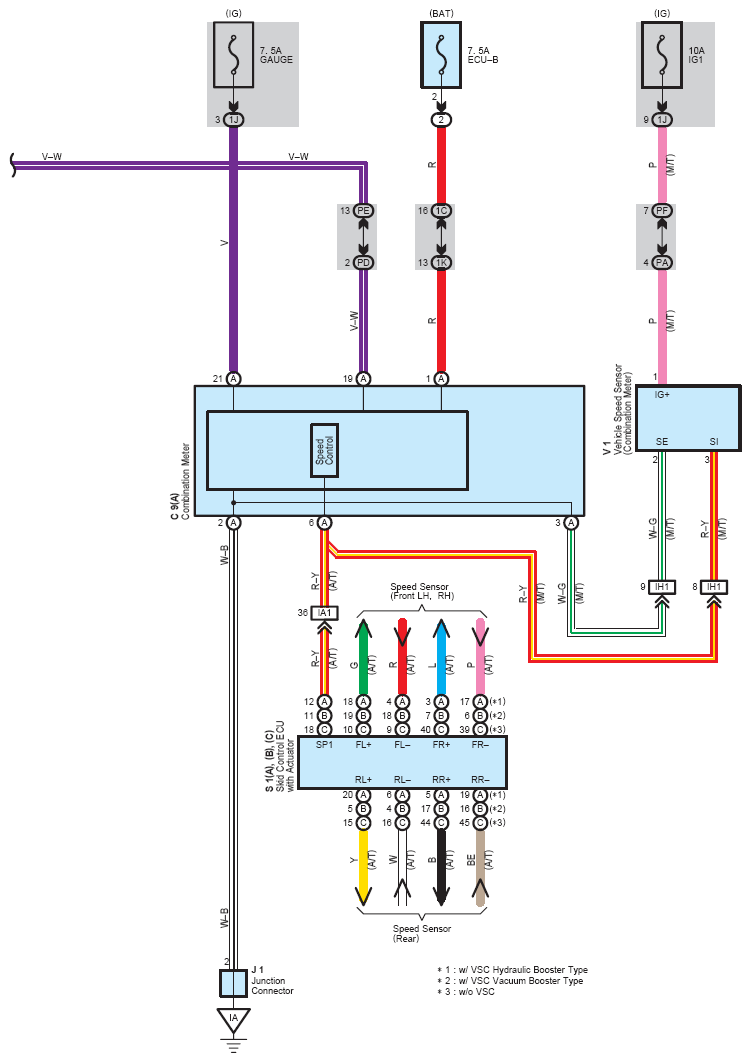

Fig 2: Power Outlet (115V) Wiring Diagram (2 Of 2)
G07117306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
