System Diagram

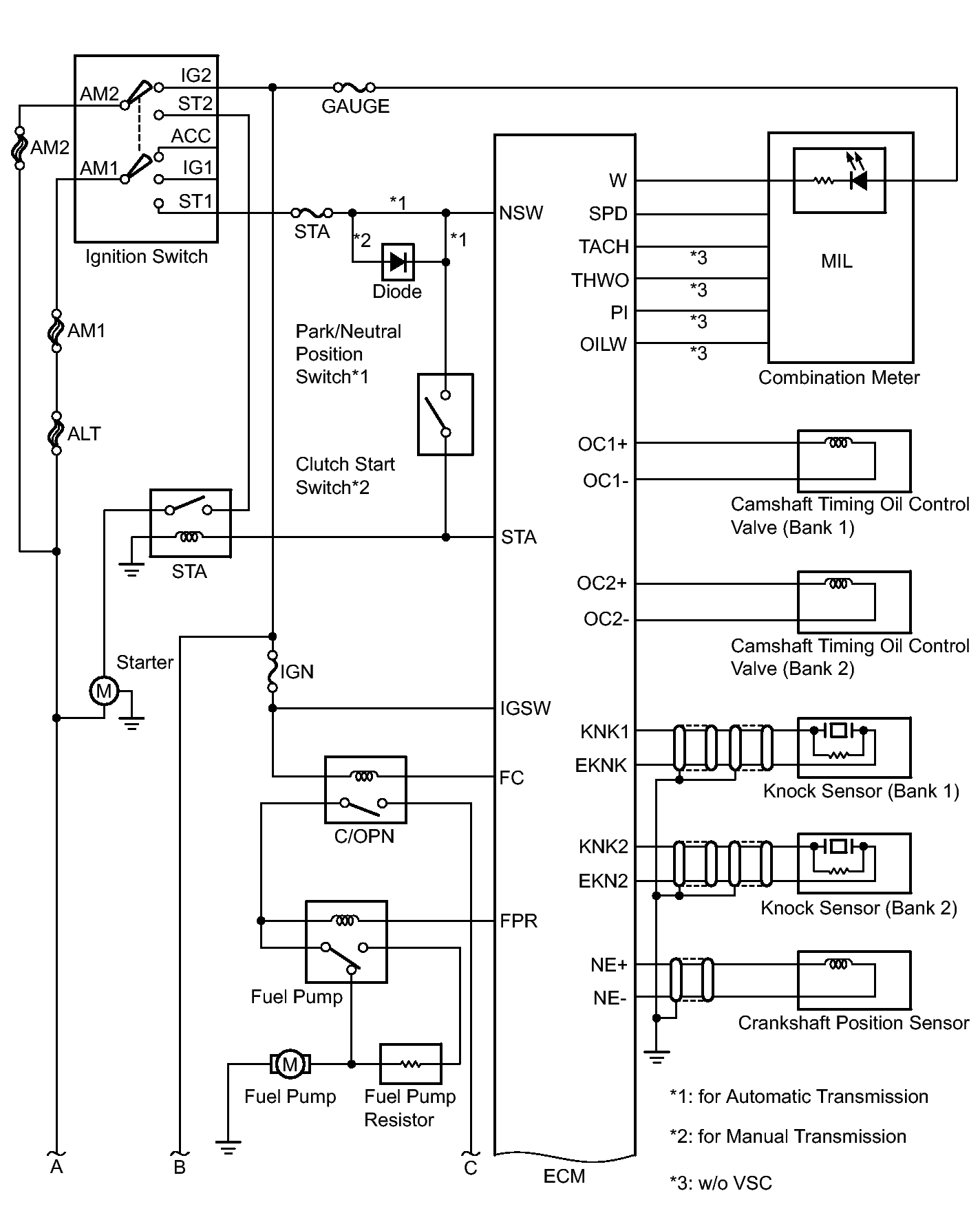

Fig 1: Identifying SFI System Diagram (1 Of 5)
GTY296904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

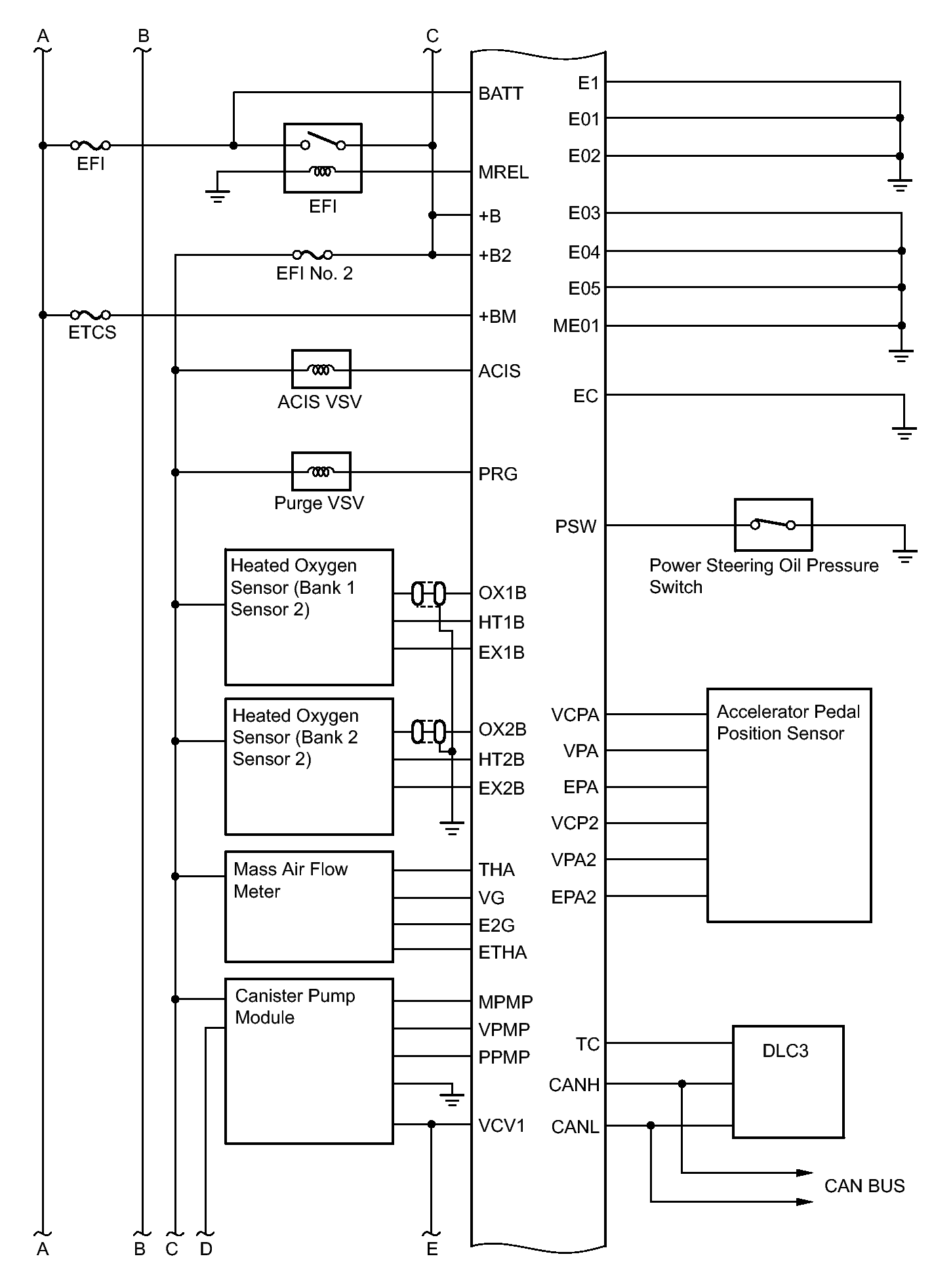

Fig 2: Identifying SFI System Diagram (2 Of 5)
GTY303000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

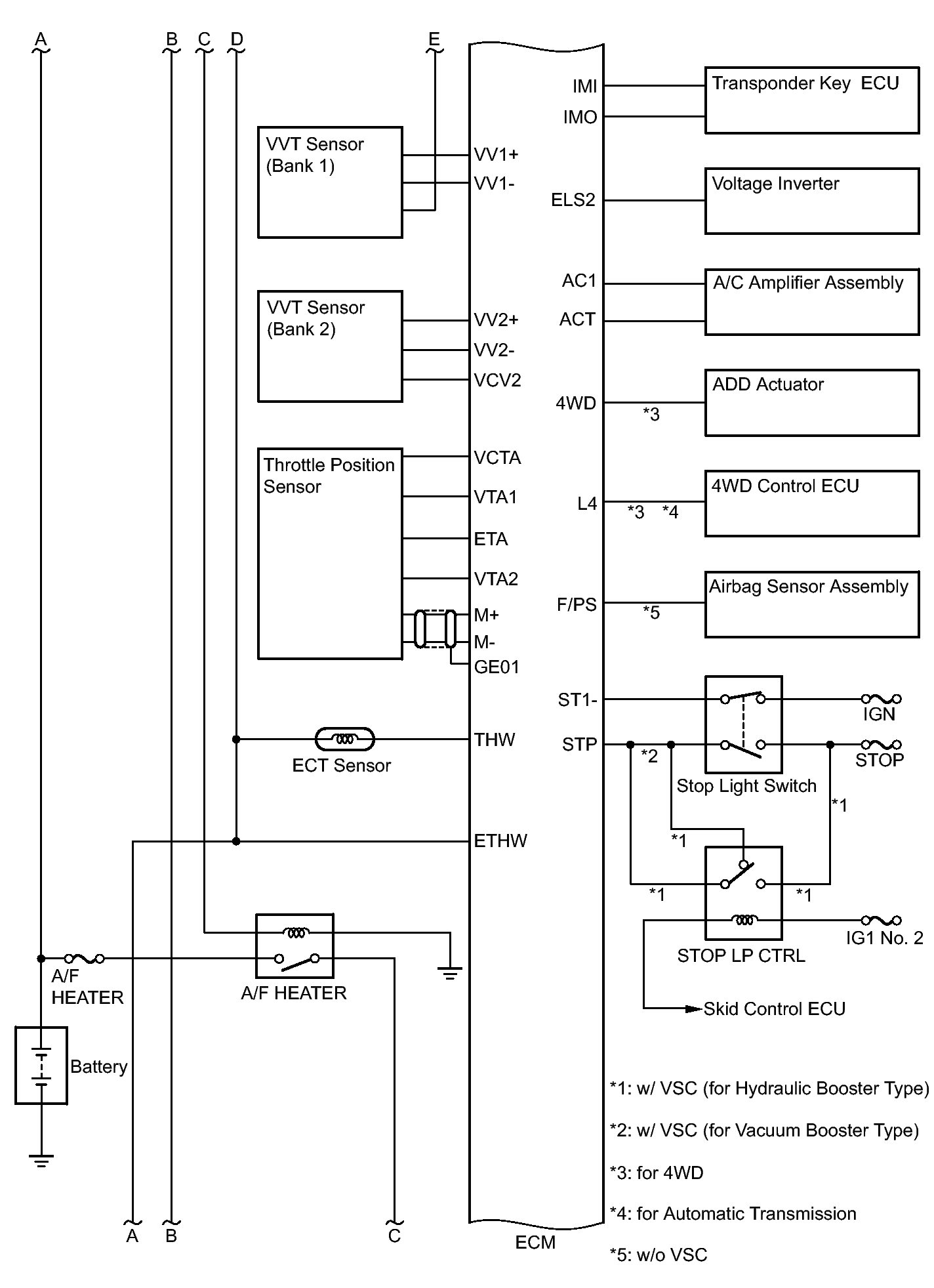

Fig 3: Identifying SFI System Diagram (3 Of 5)
GTY303652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

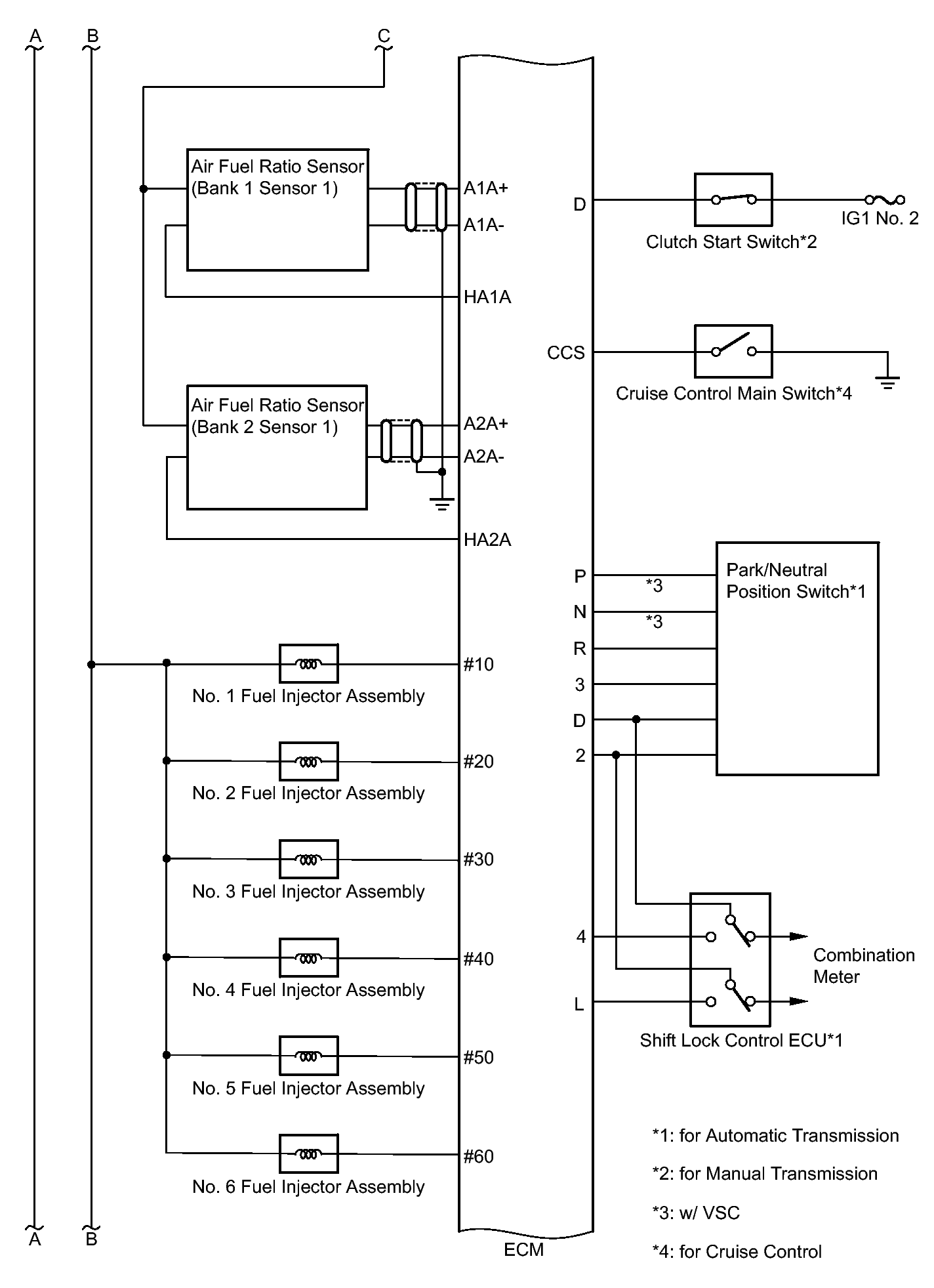

Fig 4: Identifying SFI System Diagram (4 Of 5)
GTY299934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

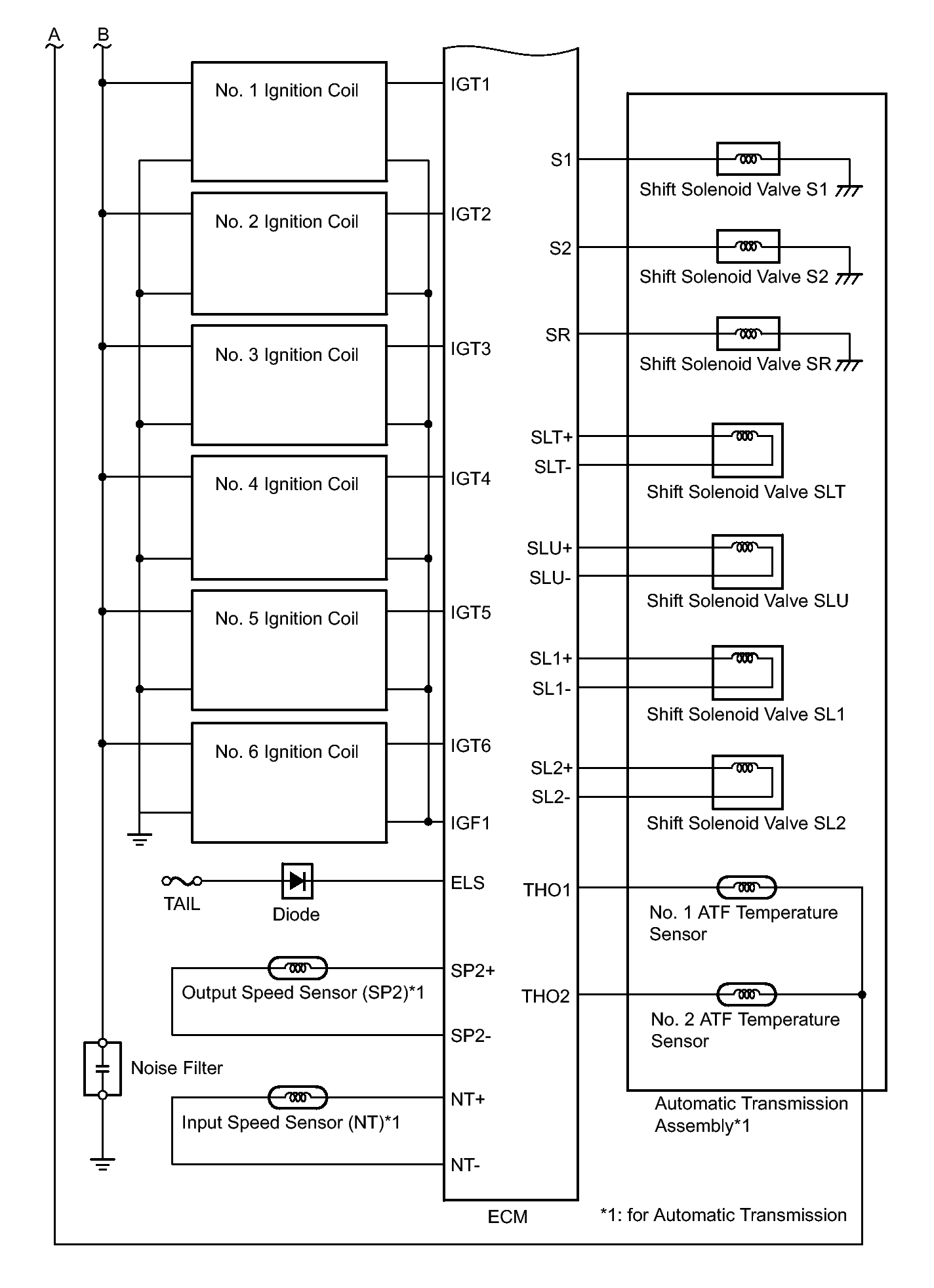

Fig 5: Identifying SFI System Diagram (5 Of 5)
GTY300194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
