System Diagram

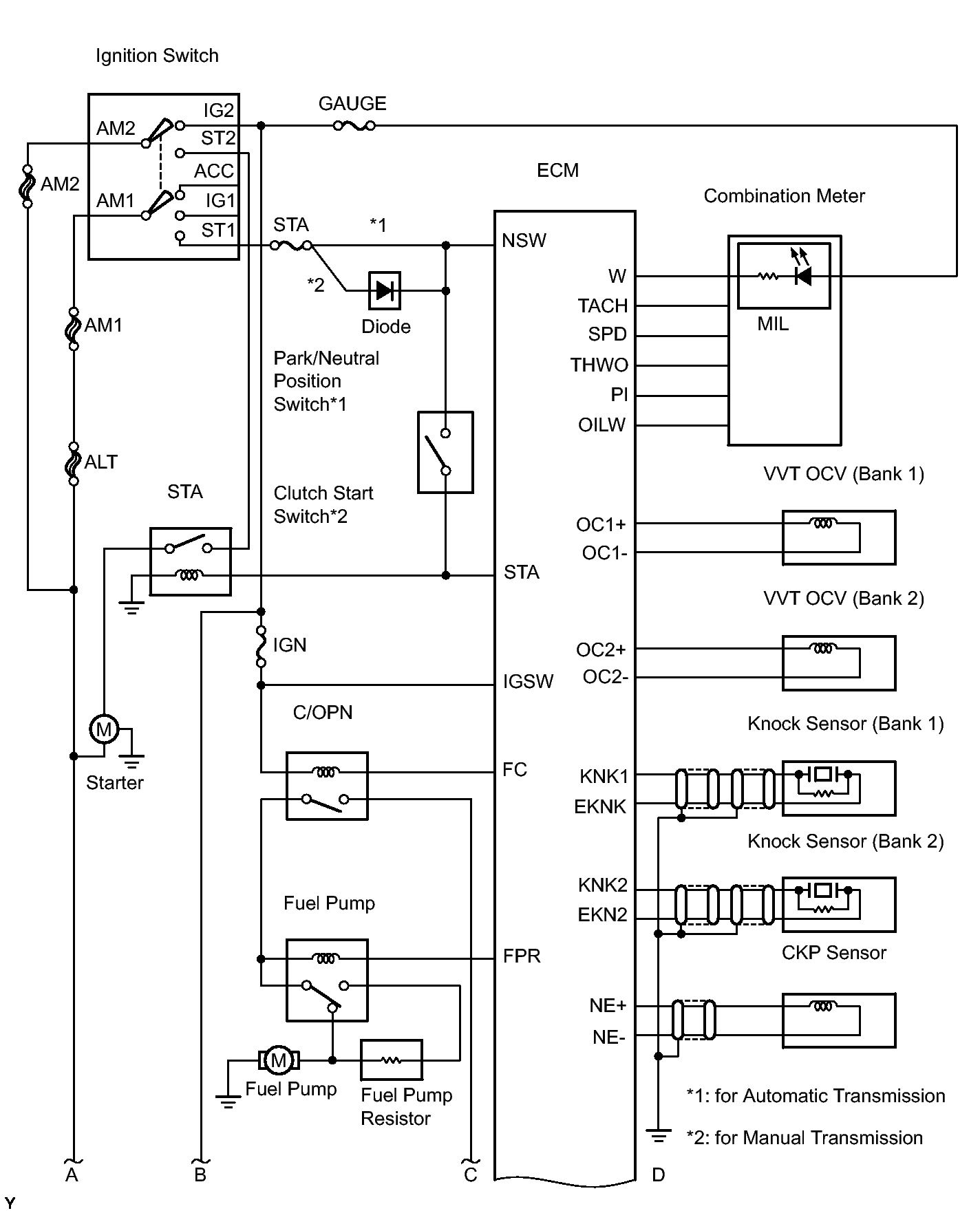

Fig 1: Identifying SFI System Diagram (1 Of 5)
GTY302714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

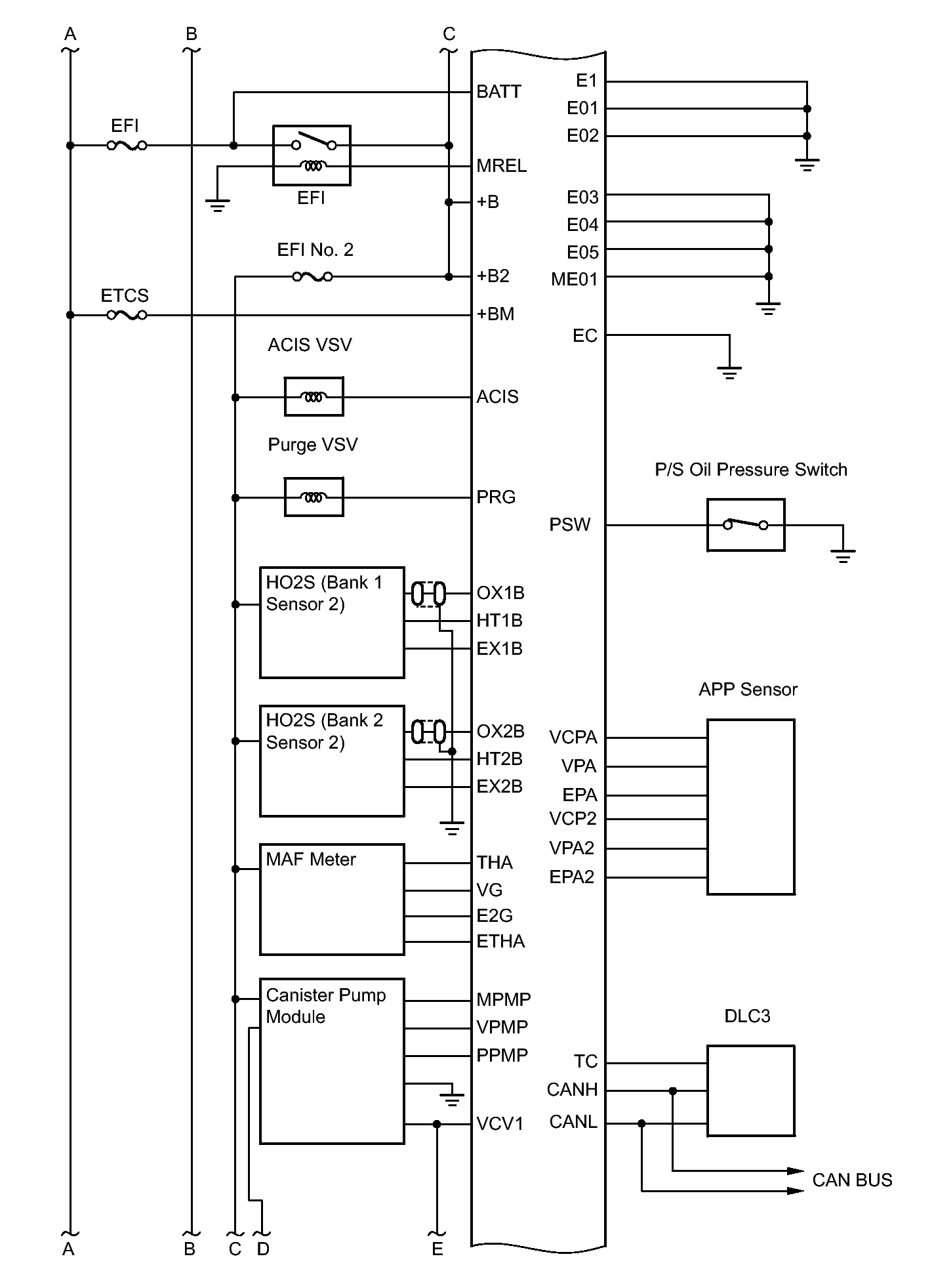

Fig 2: Identifying SFI System Diagram (2 Of 5)
GTY188919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

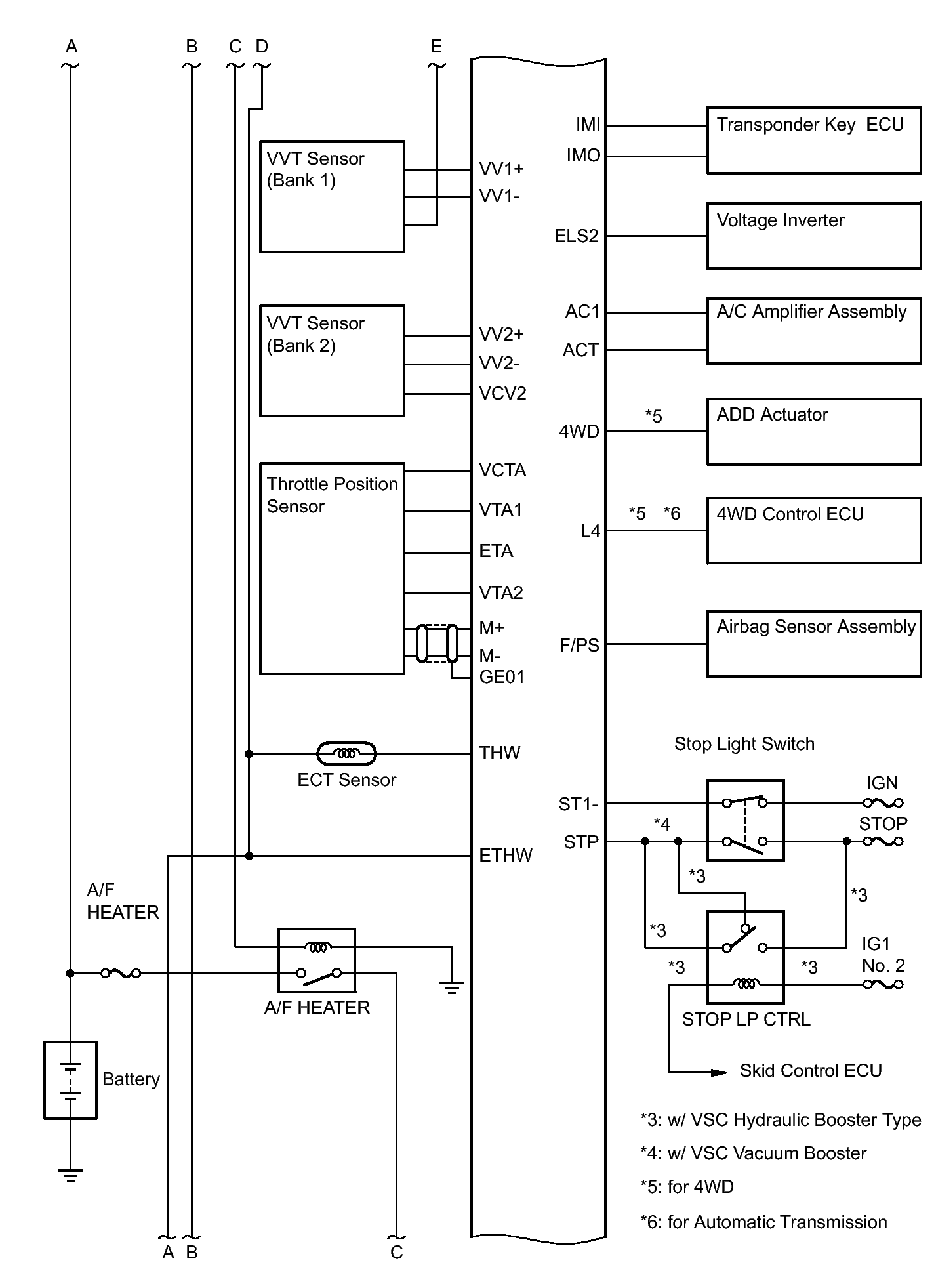

Fig 3: Identifying SFI System Diagram (3 Of 5)
GTY297131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

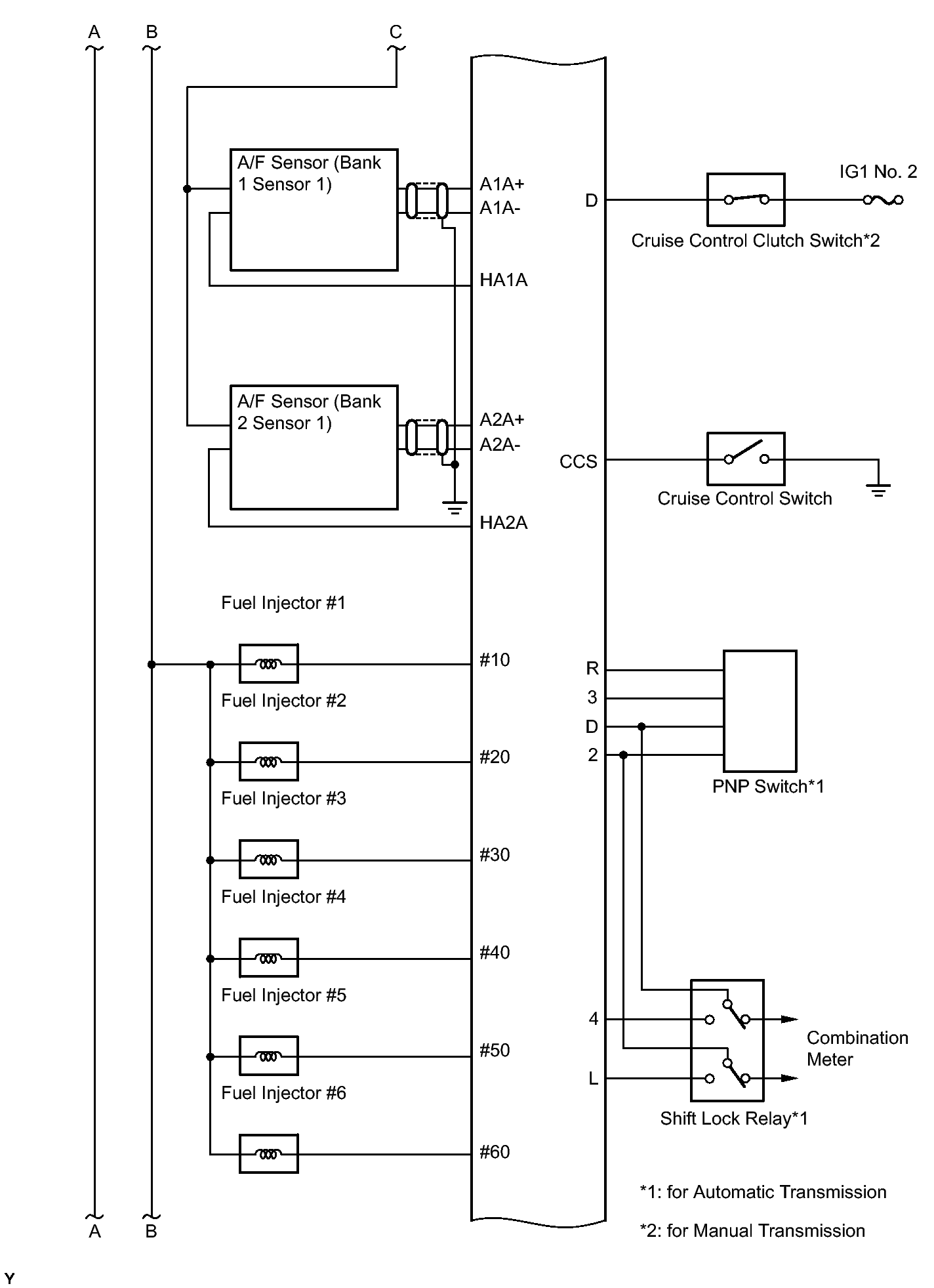

Fig 4: Identifying SFI System Diagram (4 Of 5)
GTY295636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

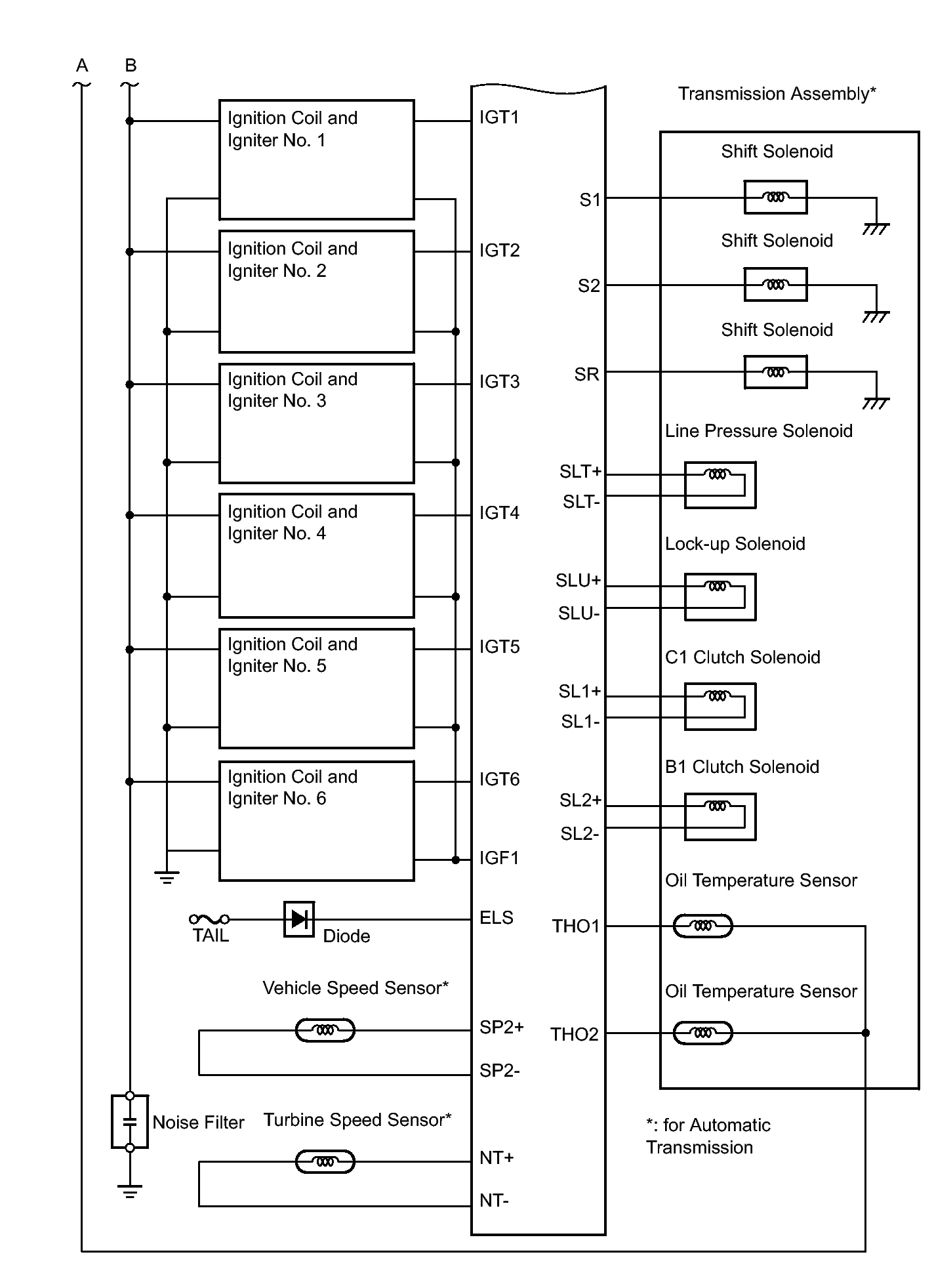

Fig 5: Identifying SFI System Diagram (5 Of 5)
GTY298788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
