Toyota
›
2011
›
Tundra Base, 5.7 W
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Accessory Meter
›
Notes
Accessory Meter: Notes

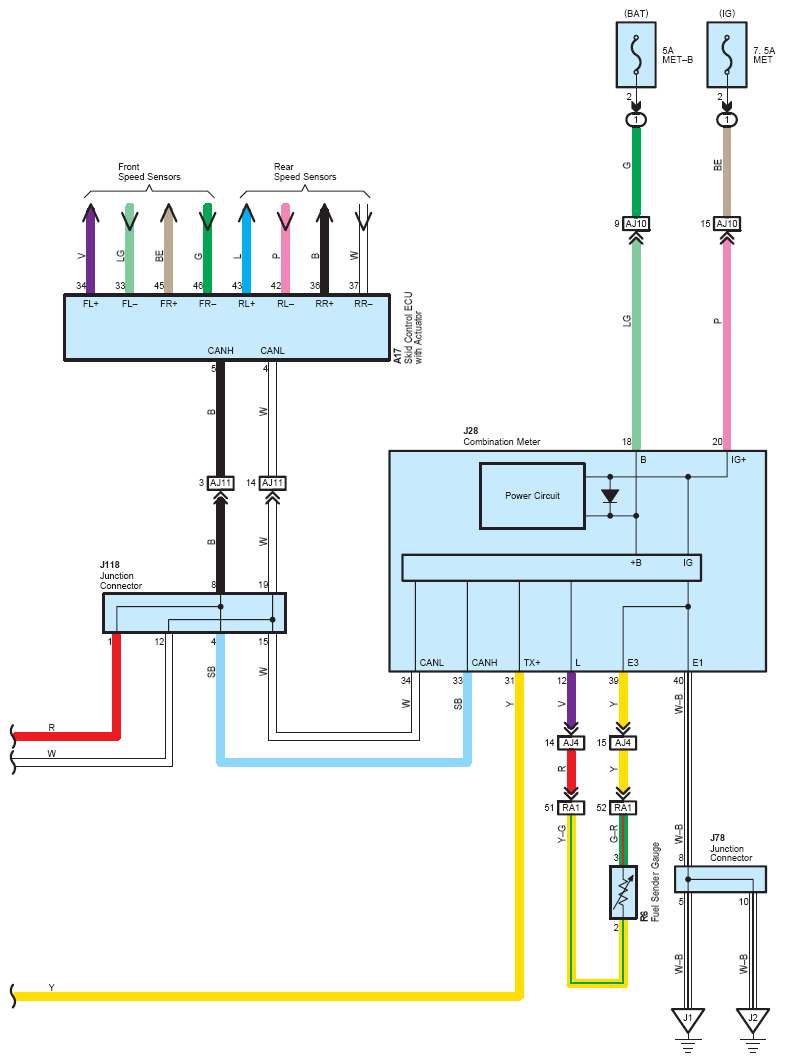

Fig 1: Accessory Meter System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

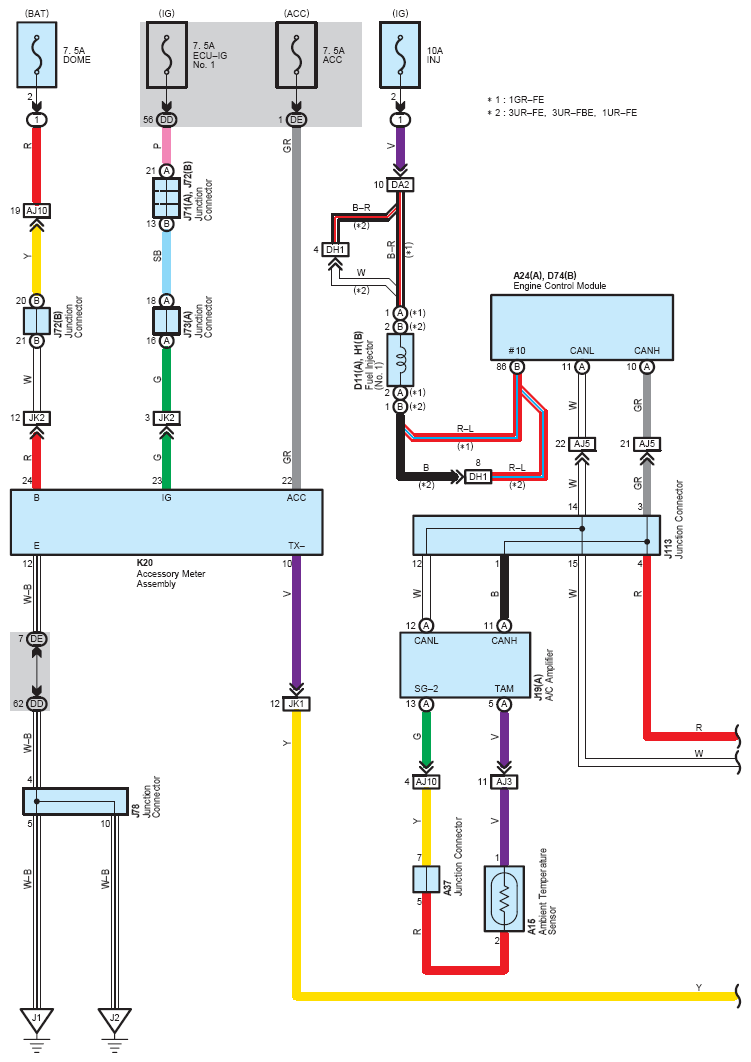

Fig 2: Accessory Meter System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
