Cruise Control (1UR-FE): Notes

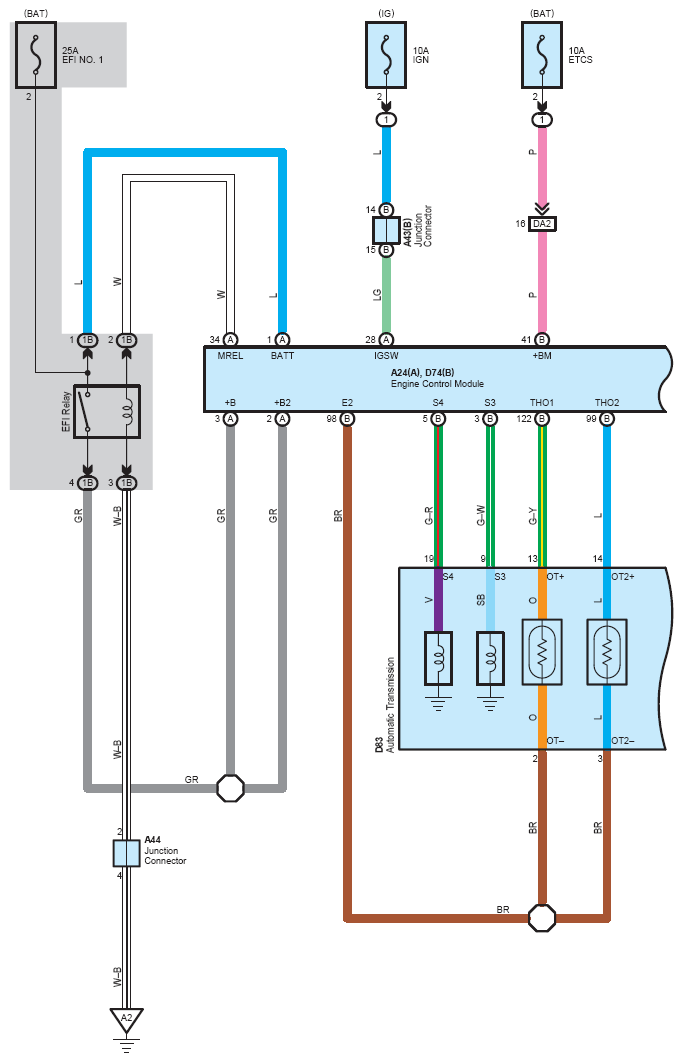

Fig 1: Cruise Control (1UR-FE) System Wiring Diagram (1 Of 7)
G07123637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

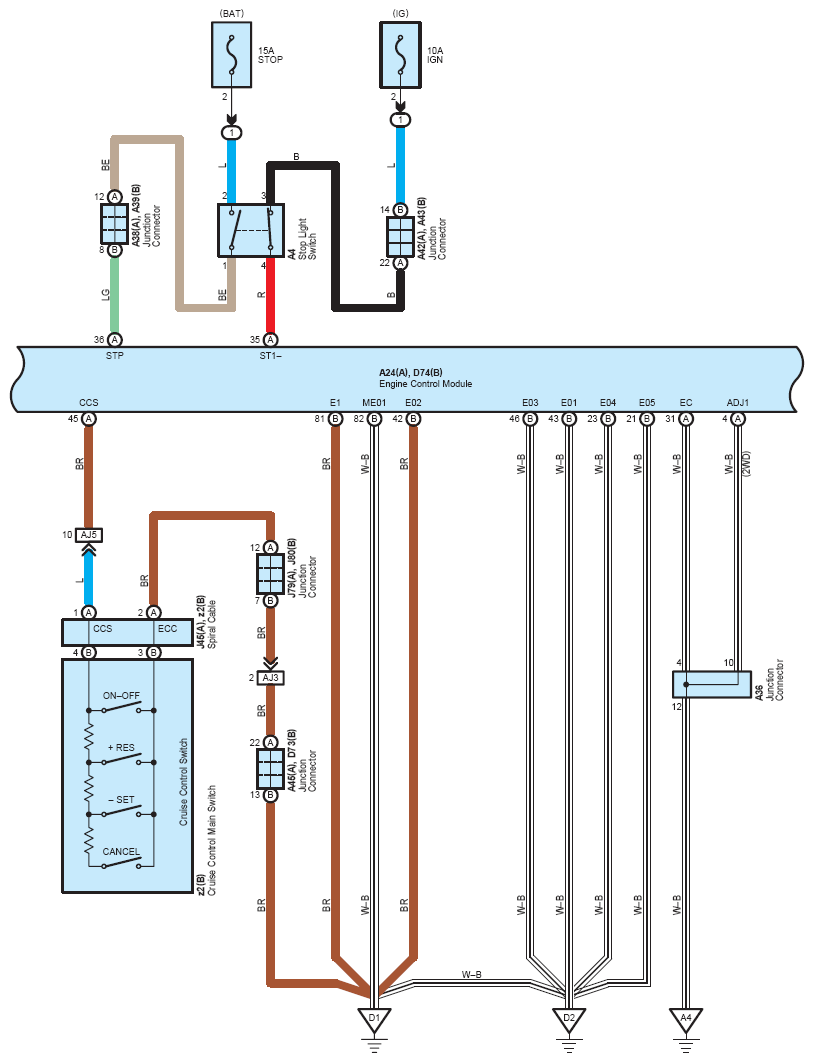

Fig 2: Cruise Control (1UR-FE) System Wiring Diagram (2 Of 7)
G07123638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

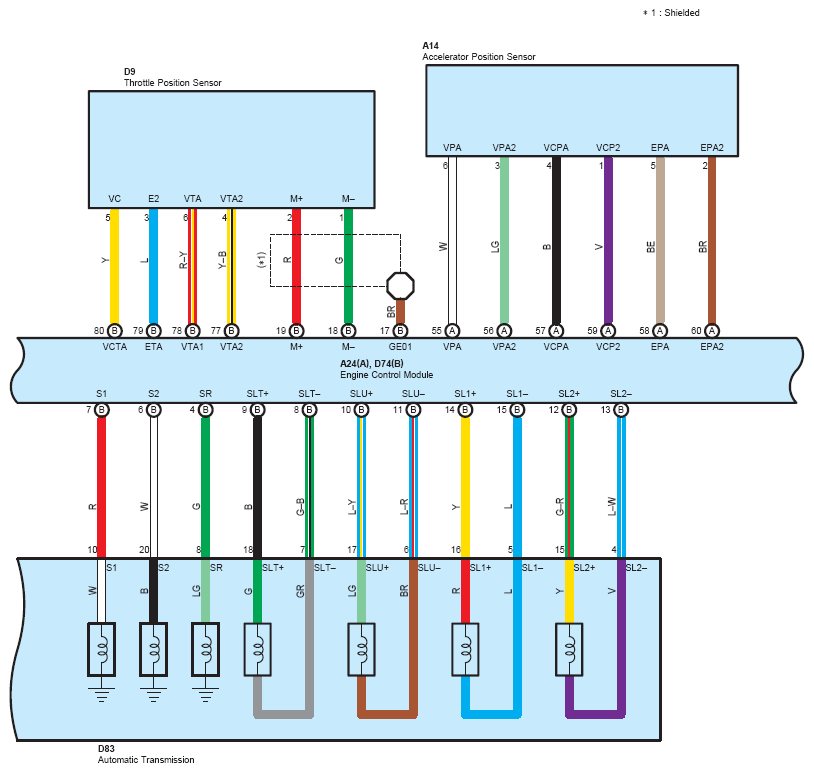

Fig 3: Cruise Control (1UR-FE) System Wiring Diagram (3 Of 7)
G07123639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

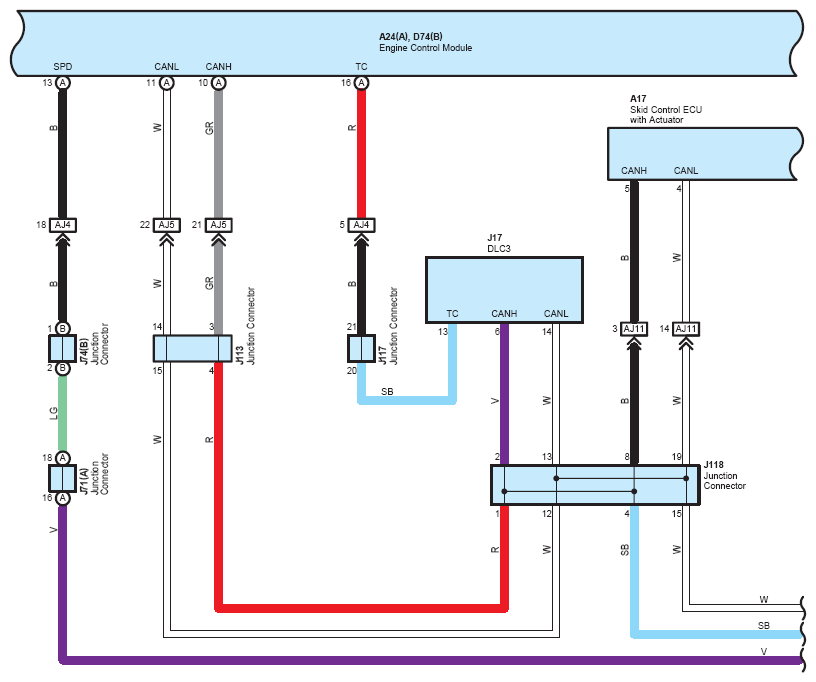

Fig 4: Cruise Control (1UR-FE) System Wiring Diagram (4 Of 7)
G07123640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

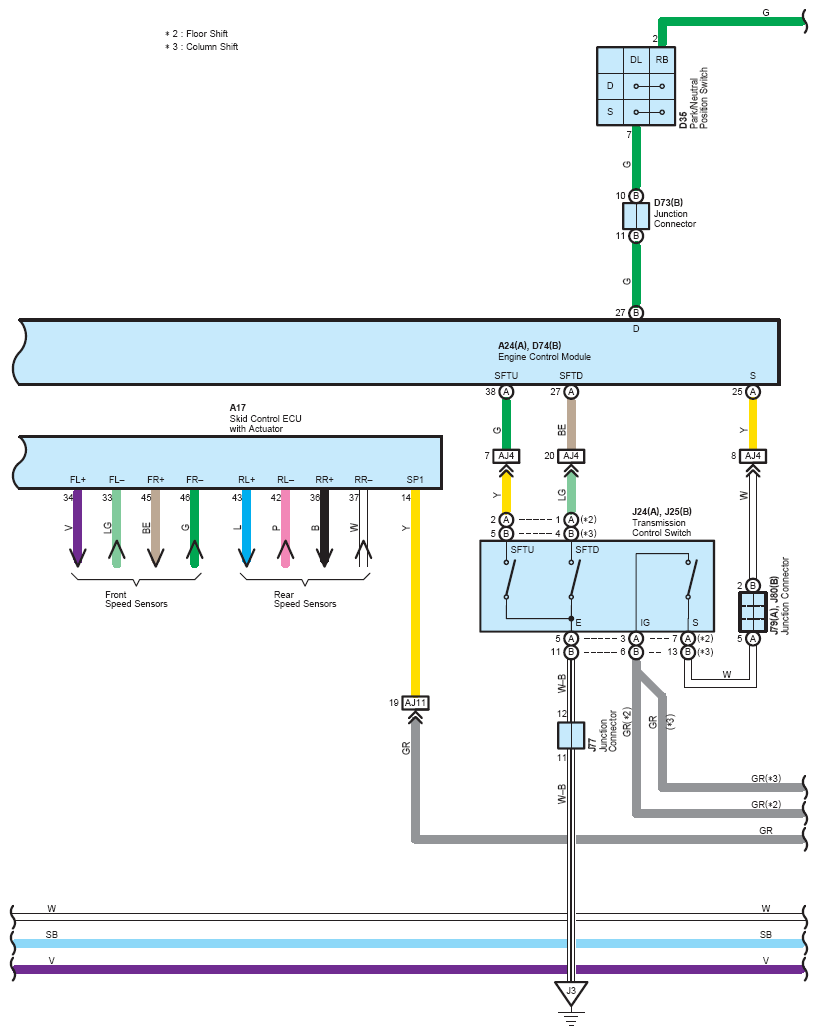

Fig 5: Cruise Control (1UR-FE) System Wiring Diagram (5 Of 7)
G07123641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

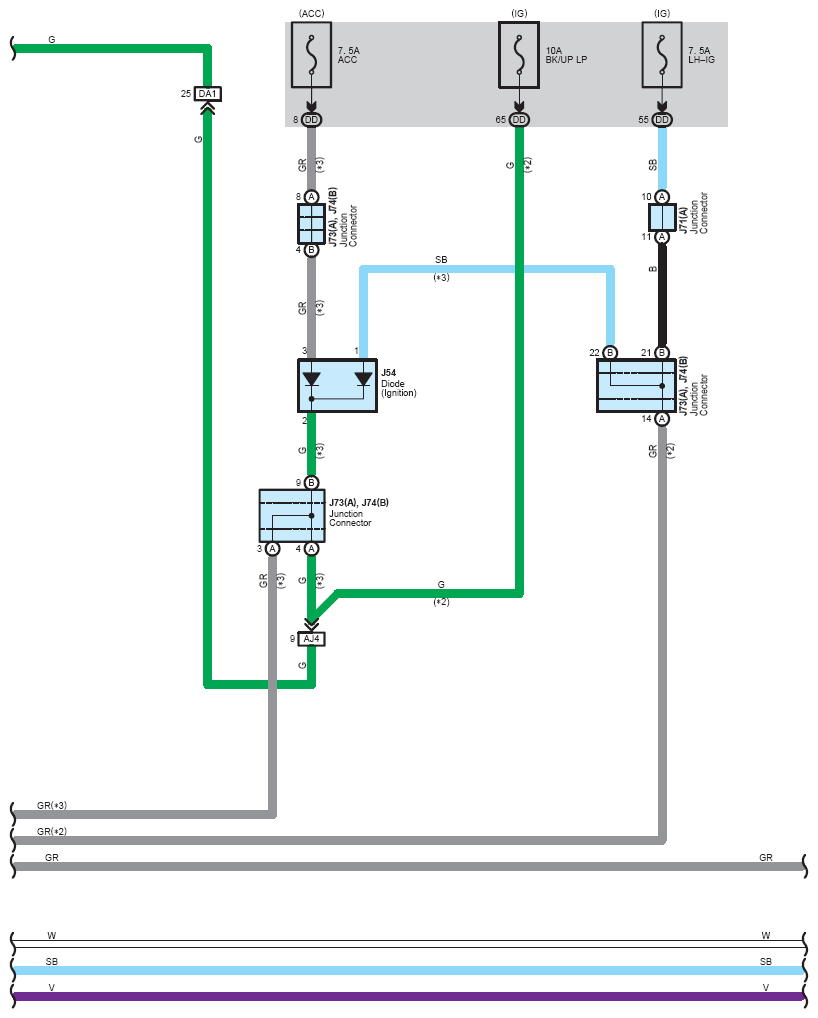

Fig 6: Cruise Control (1UR-FE) System Wiring Diagram (6 Of 7)
G07123642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

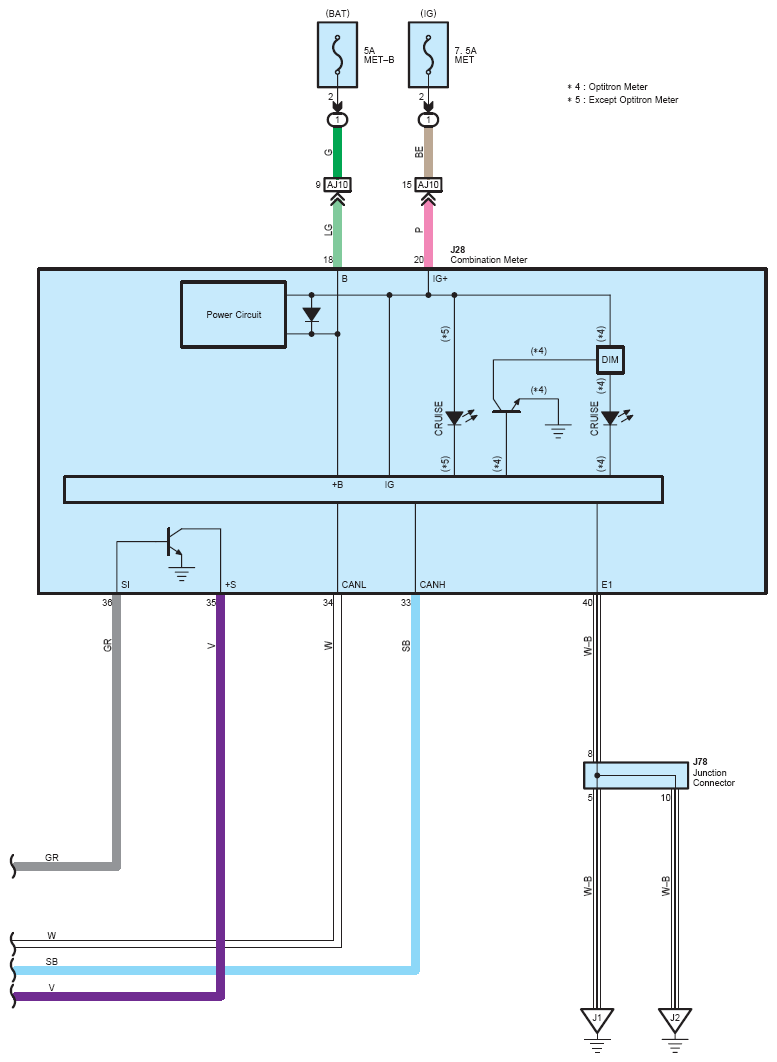

Fig 7: Cruise Control (1UR-FE) System Wiring Diagram (7 Of 7)
G07123643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
