Toyota
›
2011
›
Tundra Base, 5.7 W
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Mirror Heater
›
Notes
Mirror Heater: Notes

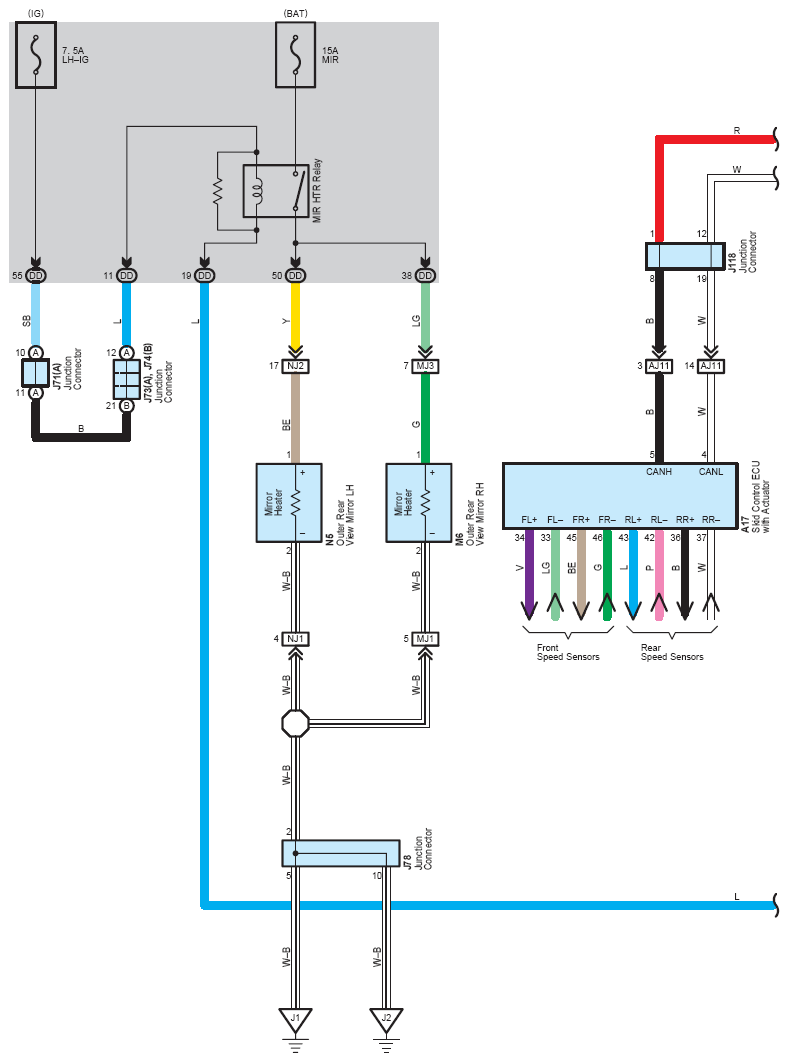

Fig 1: Mirror Heater System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

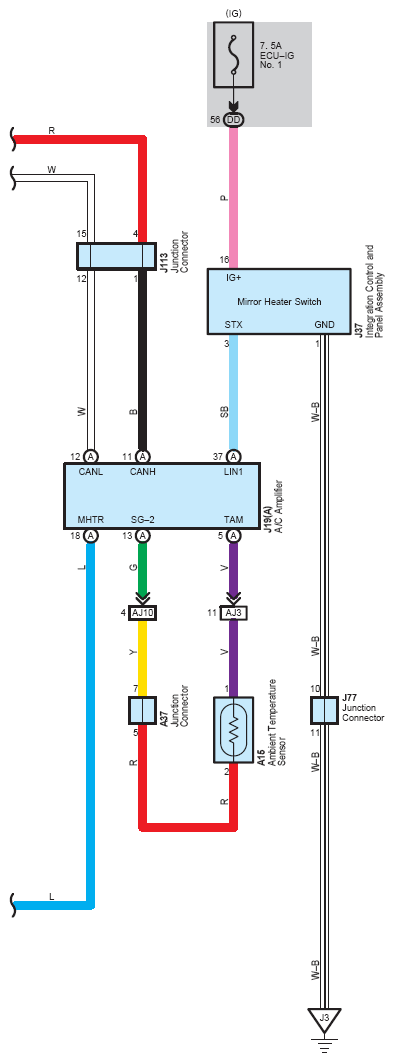

Fig 2: Mirror Heater System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
