Power Steering: Notes

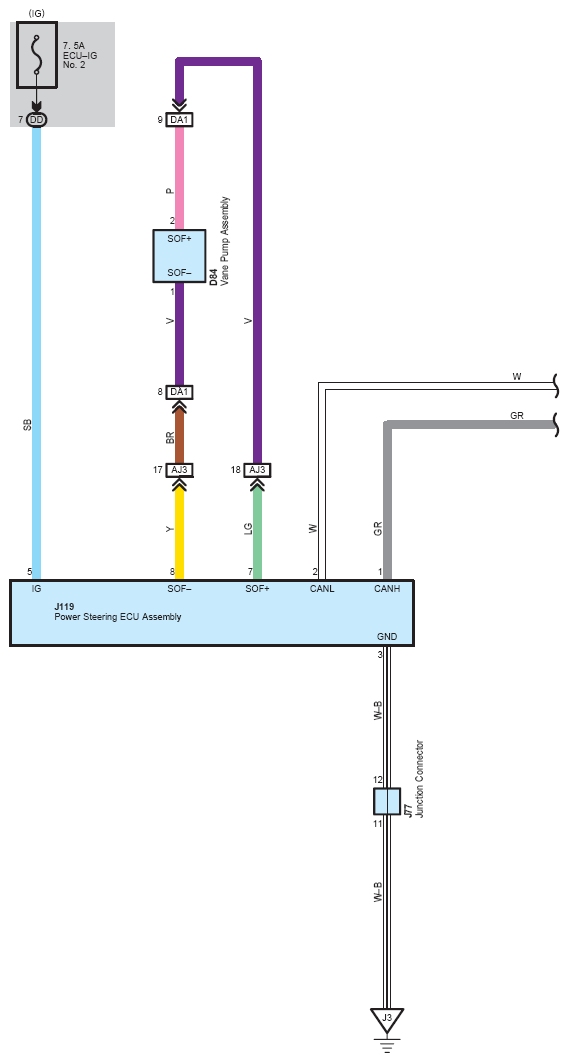

Fig 1: Power Steering System Wiring Diagram (1 Of 4)
G07123720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

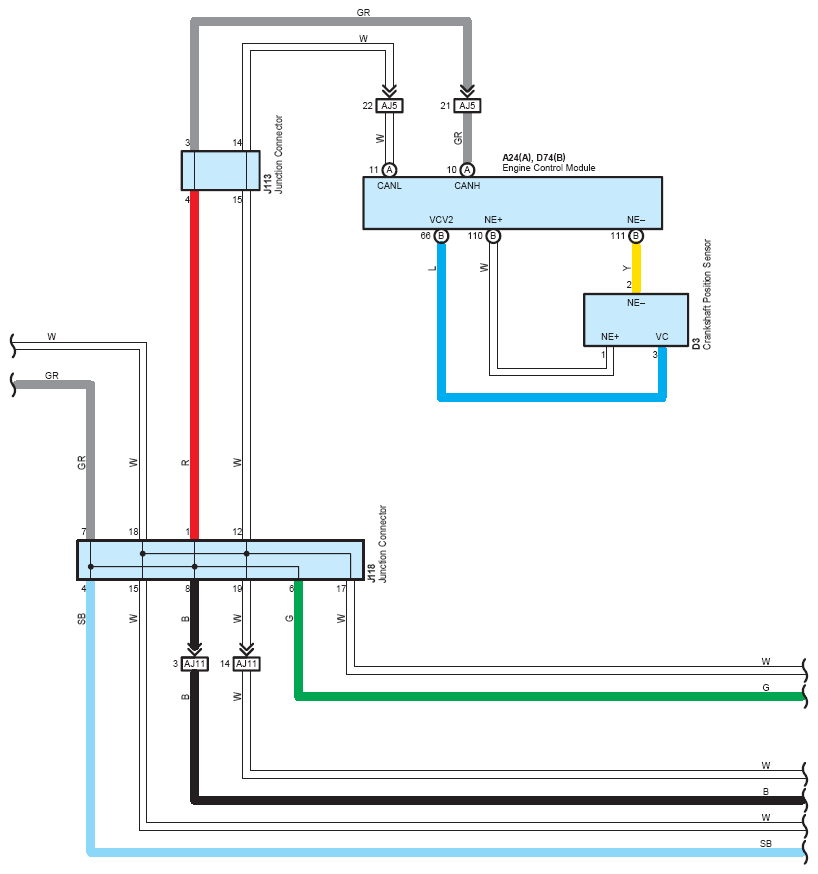

Fig 2: Power Steering System Wiring Diagram (2 Of 4)
G07123721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

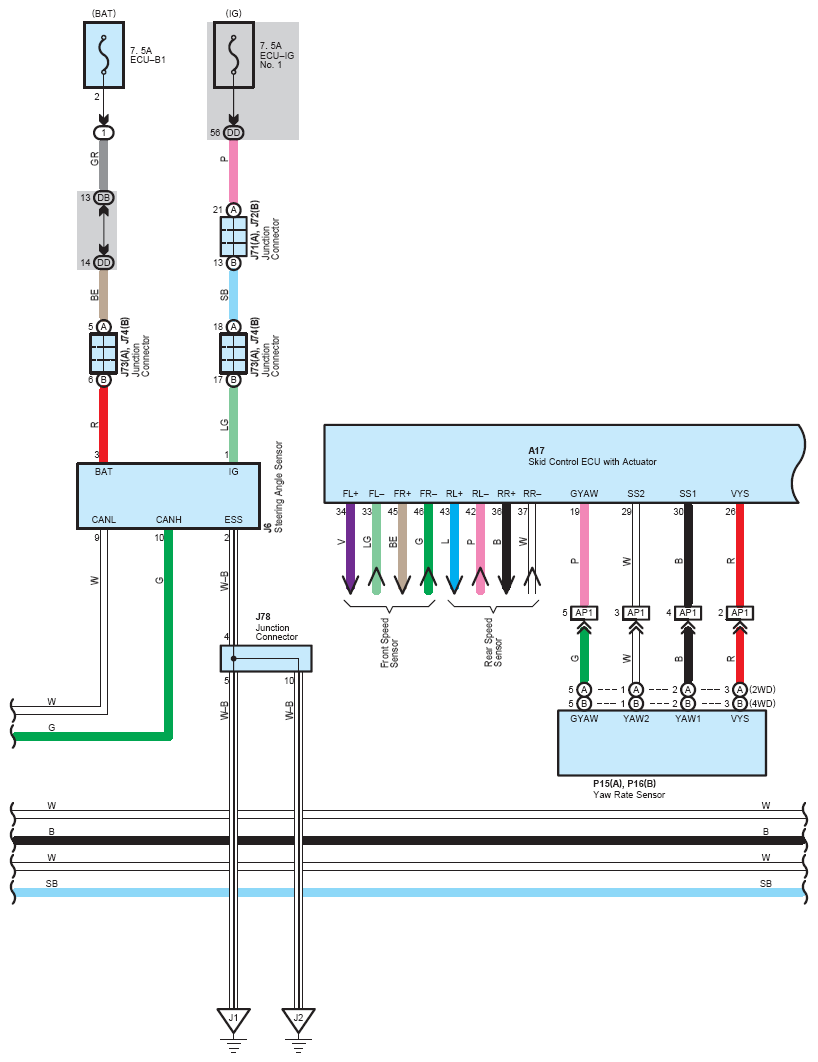

Fig 3: Power Steering System Wiring Diagram (3 Of 4)
G07123722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

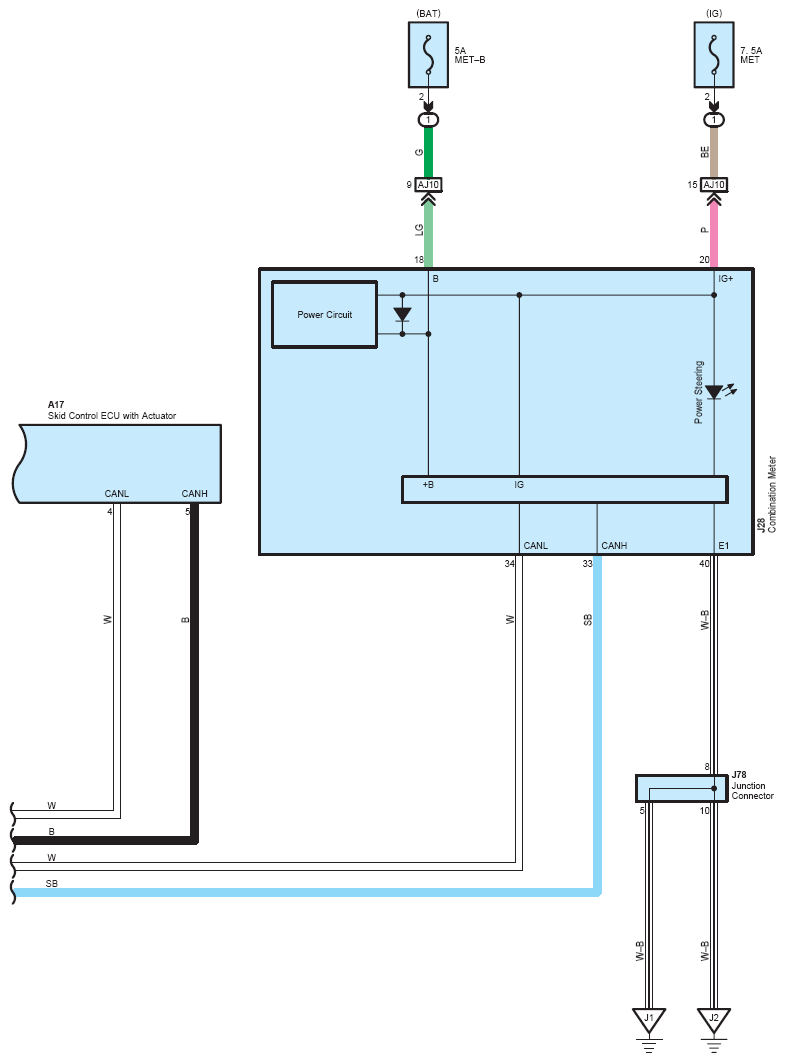

Fig 4: Power Steering System Wiring Diagram (4 Of 4)
G07123723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
