Shift Lock (Column Shift)
›
Notes
Shift Lock (Column Shift): Notes

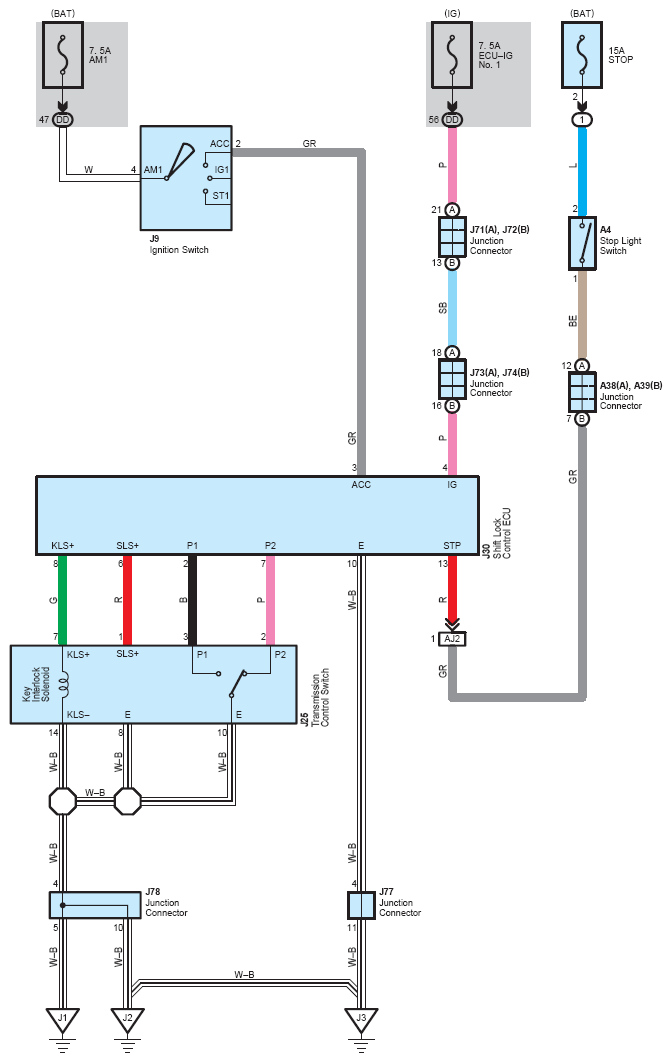

Fig 1: Shift Lock (Column Shift) System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
