Shift Lock (Floor Shift)
›
Notes
Shift Lock (Floor Shift): Notes

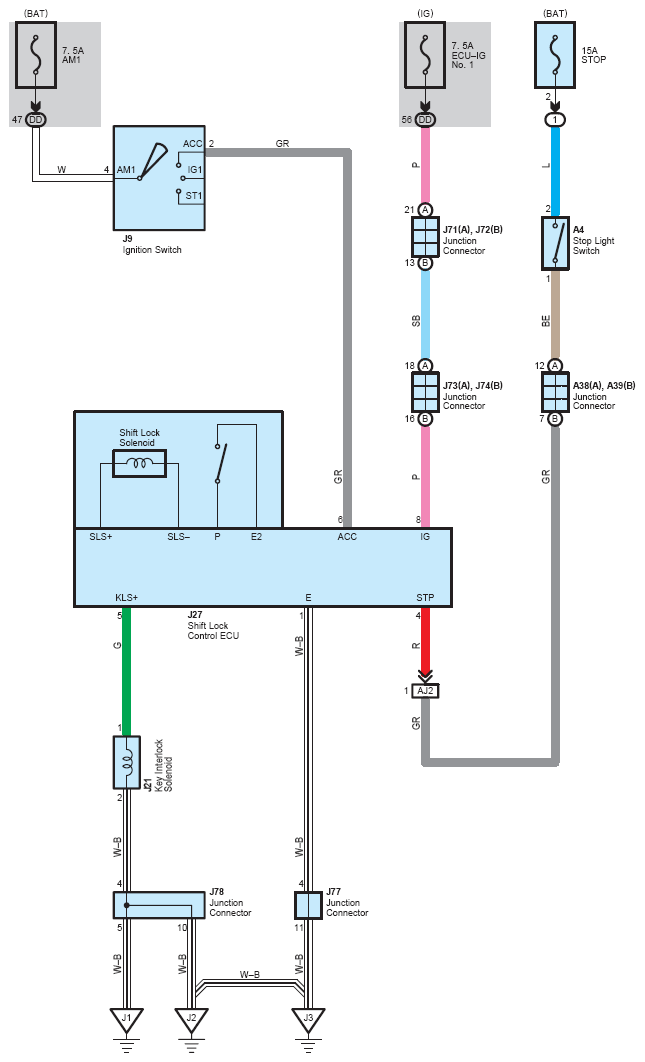

Fig 1: Shift Lock (Floor Shift) System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
