Front Fog Light: Notes

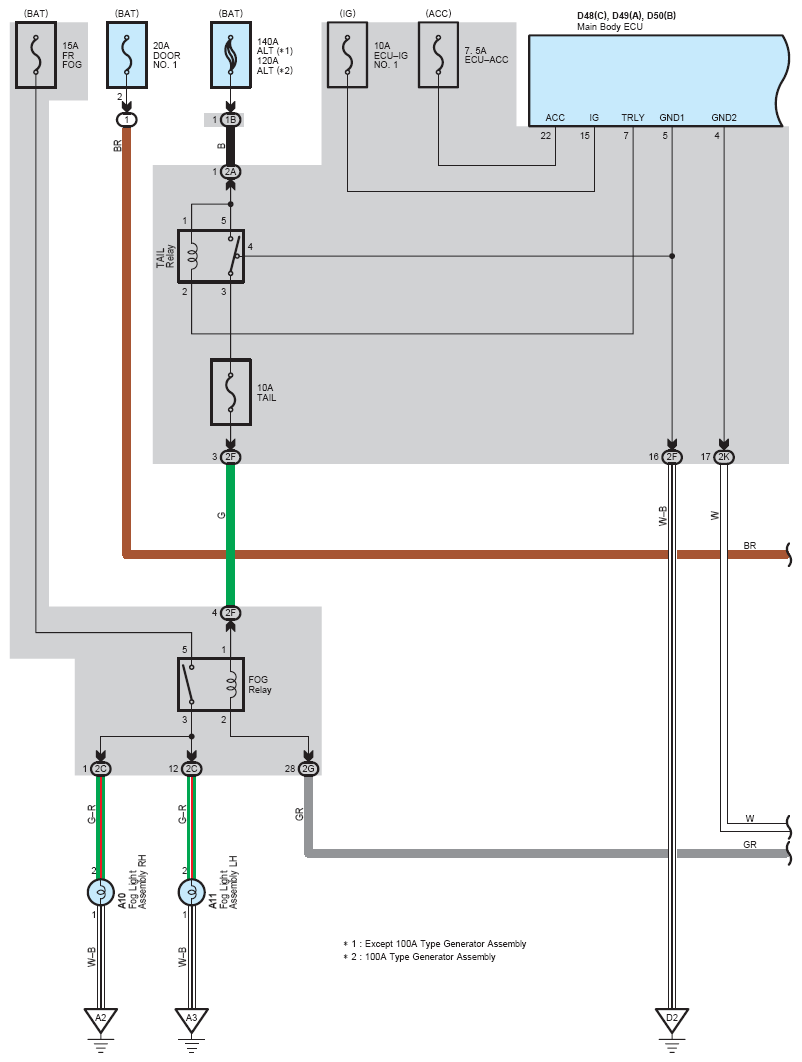

Fig 1: Front Fog Light System Wiring Diagram (1 Of 3)
G07124077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Front Fog Light System Wiring Diagram (2 Of 3)
G07124078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Front Fog Light System Wiring Diagram (3 Of 3)
G07124079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
