PCV Valve
›
Components
›
Illustration
PCV Valve: Components: Illustration

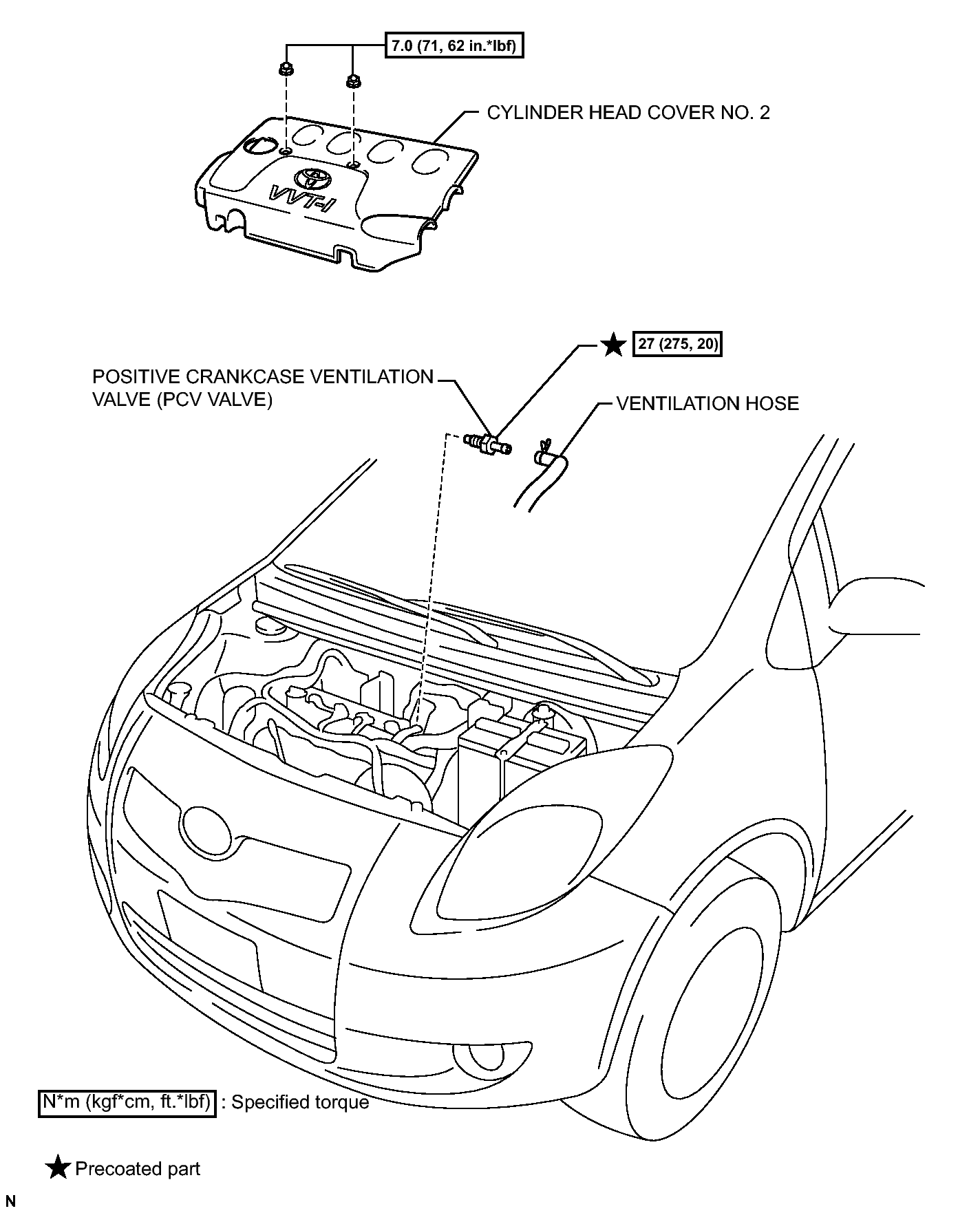

Fig 1: Ventilation Valve Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
