System Diagram

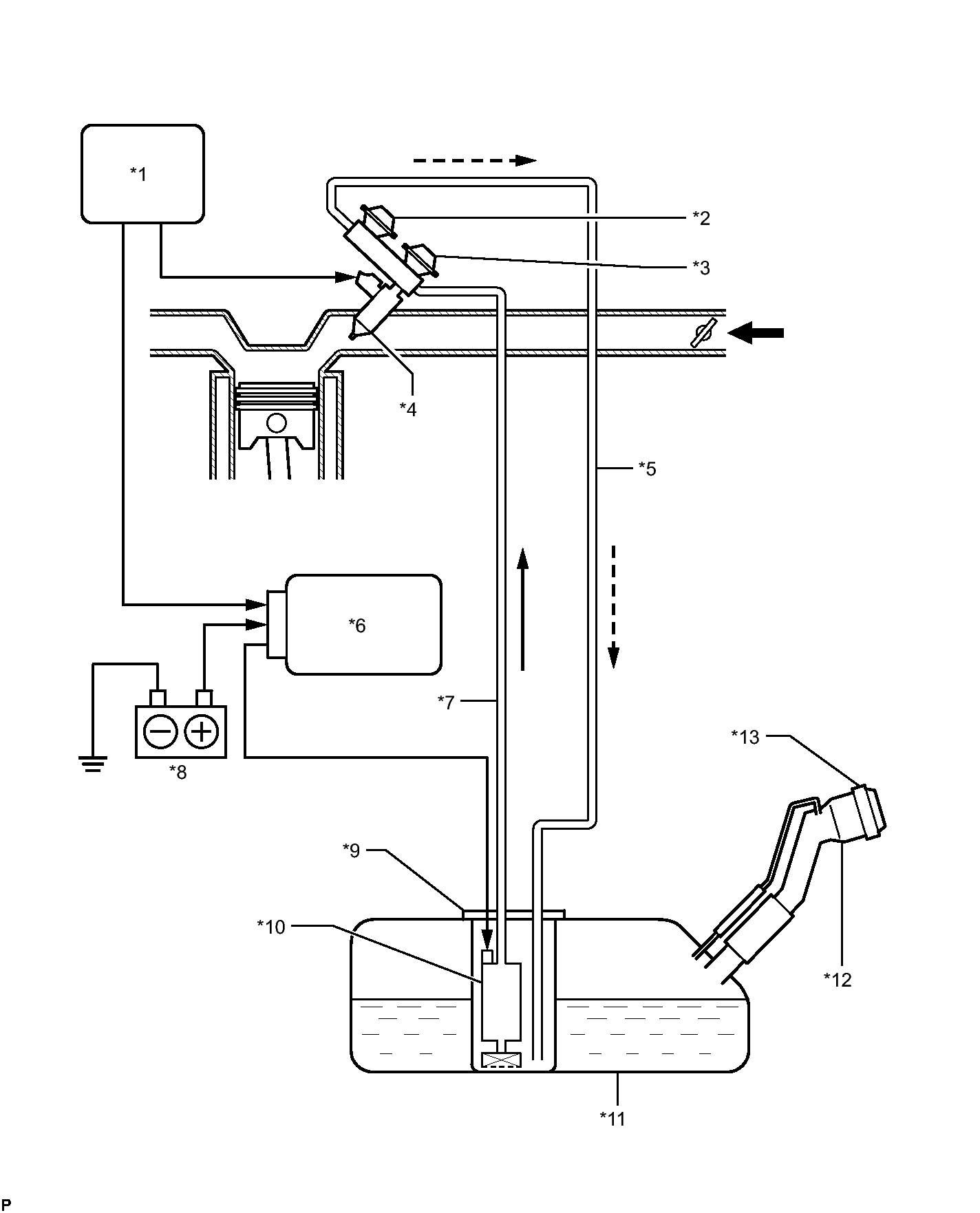

FUEL FLOW DIAGRAM

Fig 1: Identifying Fuel Flow System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	ECM	*2	Fuel Pressure Regulator
*3	Fuel Pressure Pulsation Damper	*4	Fuel Injector
*5	Fuel Return Tube	*6	Fuel Pump ECU
*7	Fuel Main Tube	*8	Battery
*9	Fuel Suction Tube	*10	Fuel Pump
*11	Fuel Tank	*12	Fuel Filler Pipe
*13	Fuel Tank Cap	-	-
	Intake Air	-	-

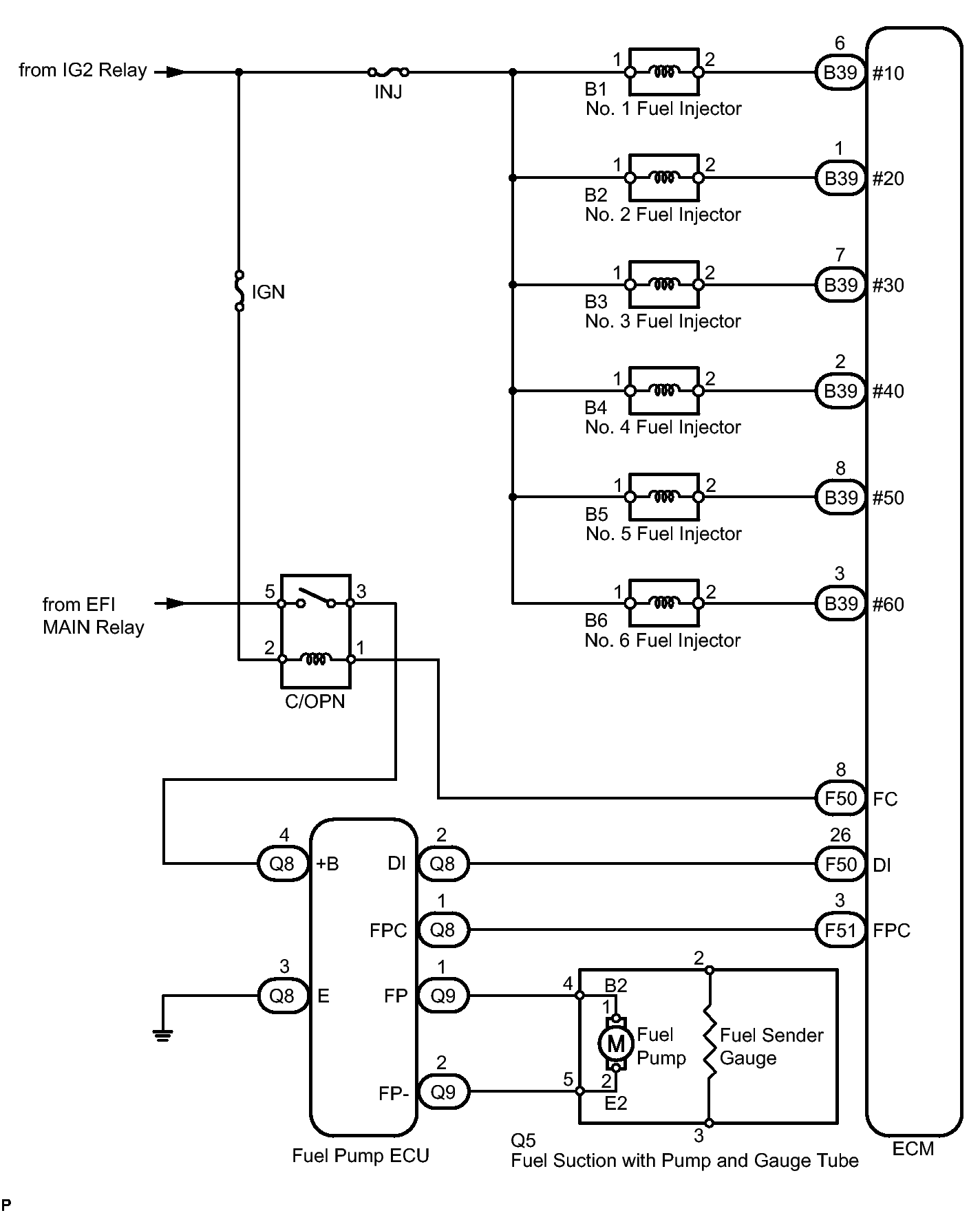

ELECTRICAL CONTROL DIAGRAM

Fig 2: Identifying Fuel Electrical Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
