Accessory meter: Notes

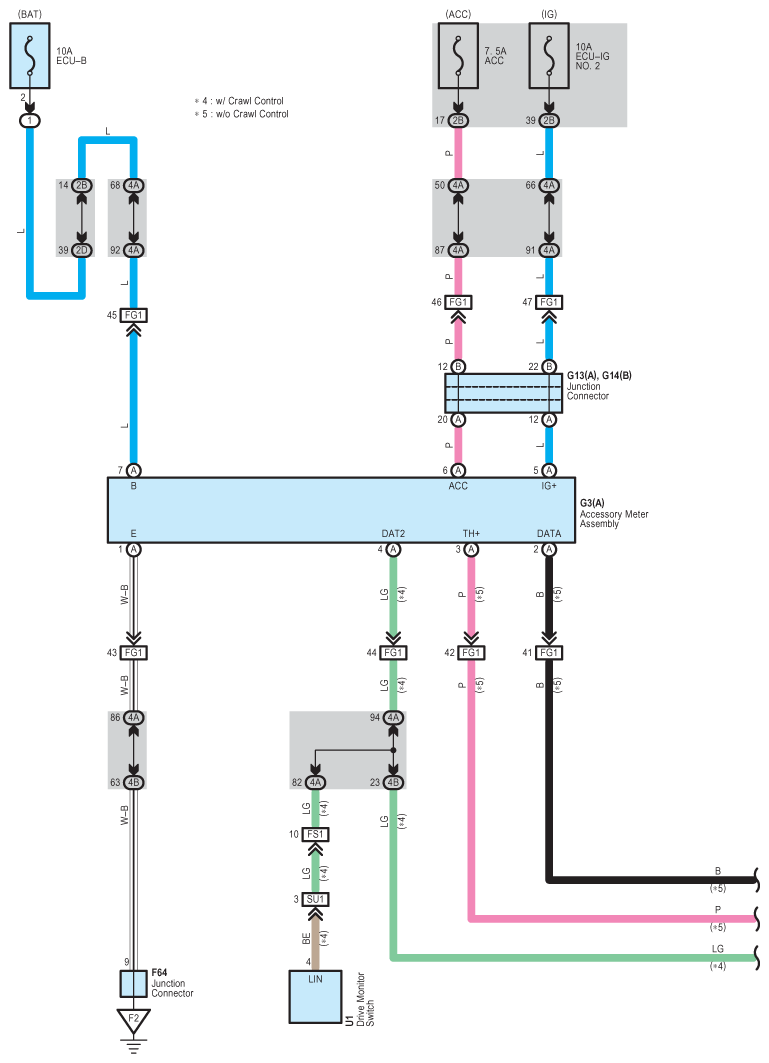

Fig 1: Accessory Meter System Wiring Diagram (1 Of 5)
G08792416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

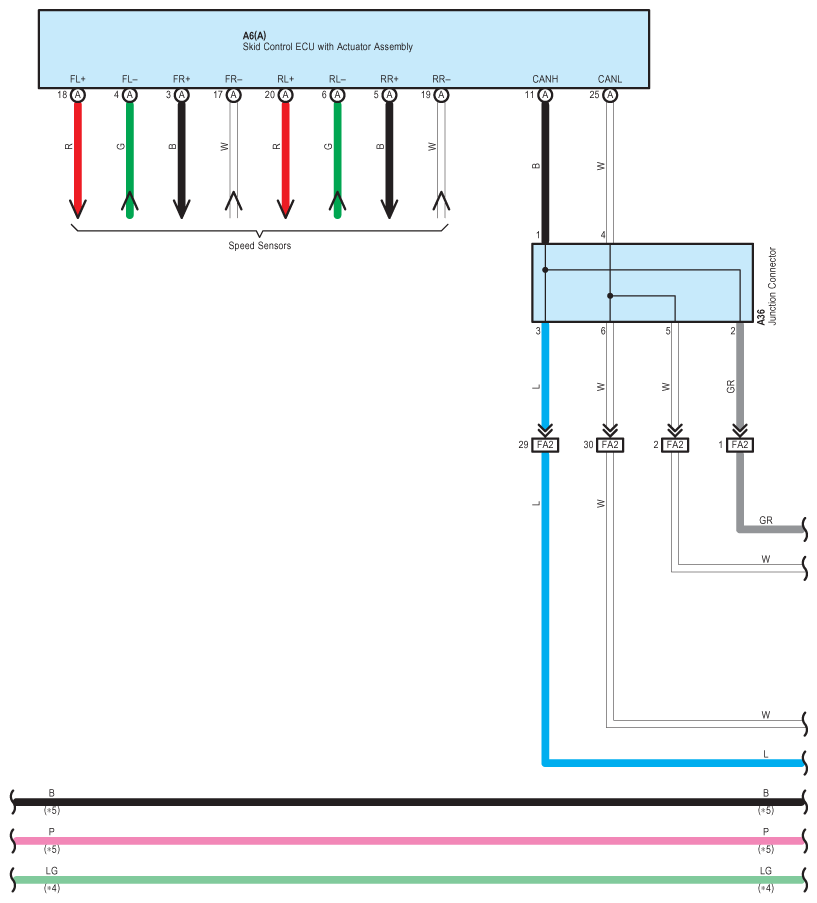

Fig 2: Accessory Meter System Wiring Diagram (2 Of 5)
G08792417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

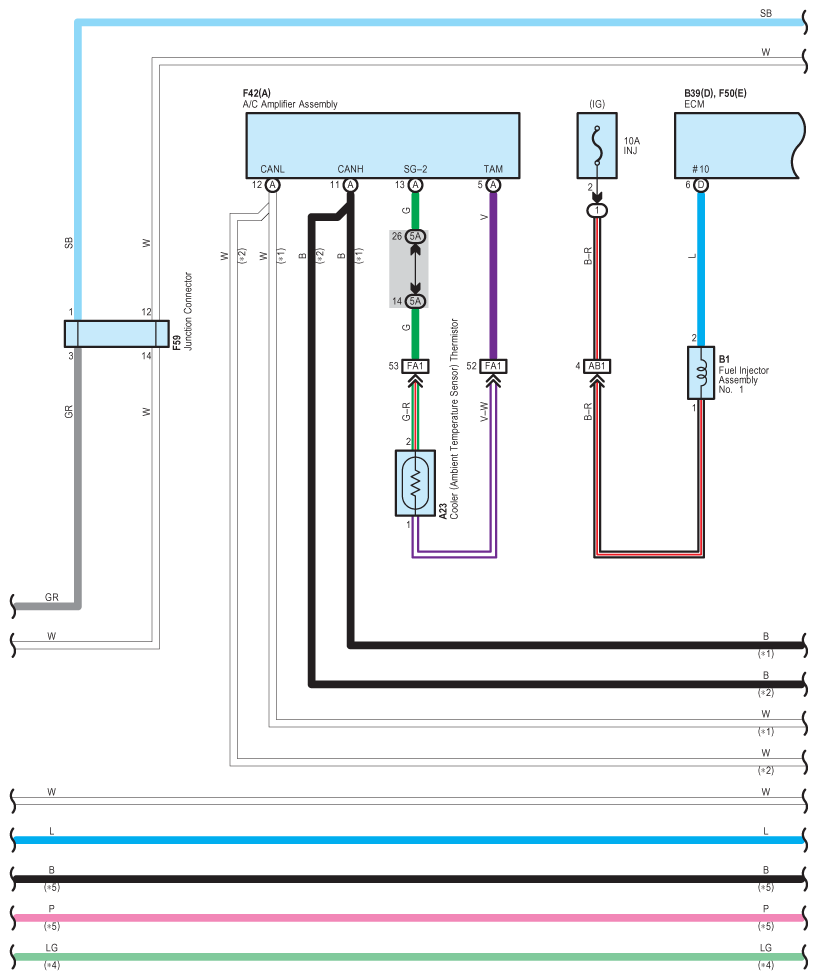

Fig 3: Accessory Meter System Wiring Diagram (3 Of 5)
G08792418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

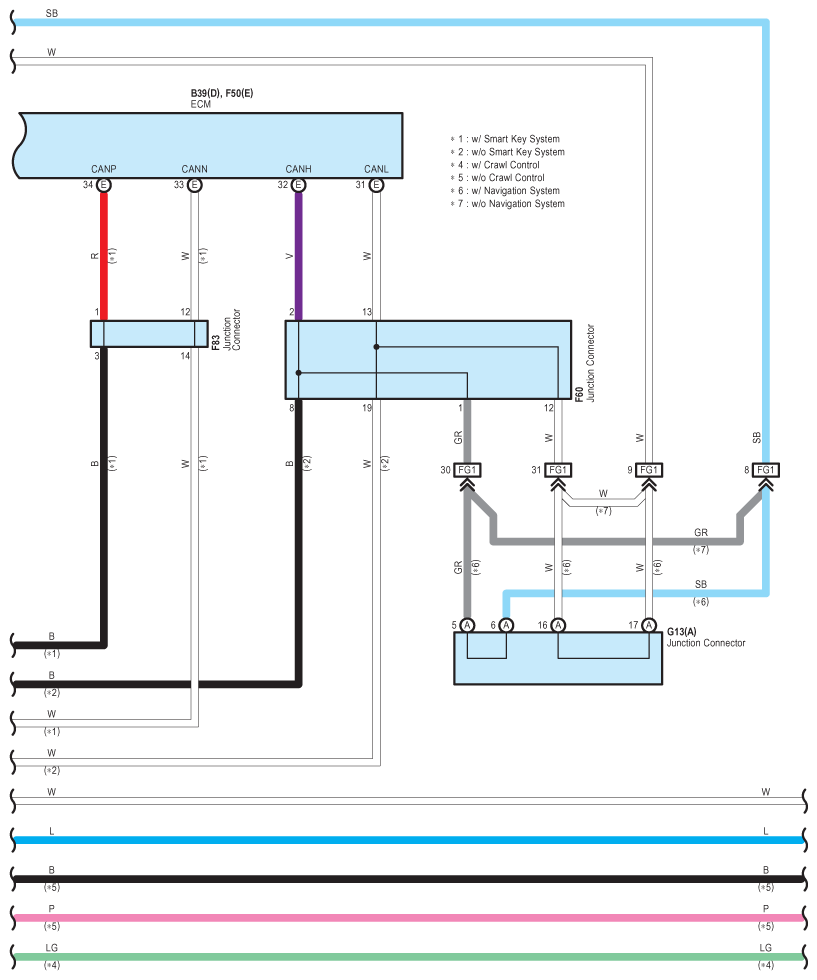

Fig 4: Accessory Meter System Wiring Diagram (4 Of 5)
G08792419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

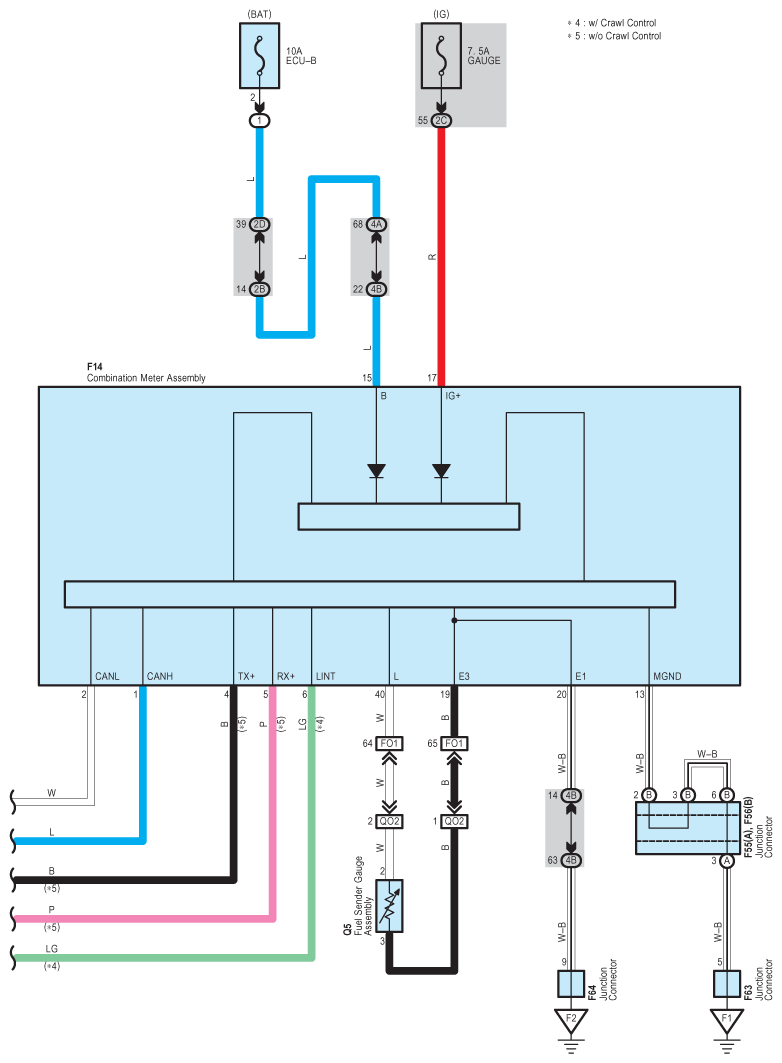

Fig 5: Accessory Meter System Wiring Diagram (5 Of 5)
G08792420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
