Engine Immobilizer System (w/o Smart Key System): Notes

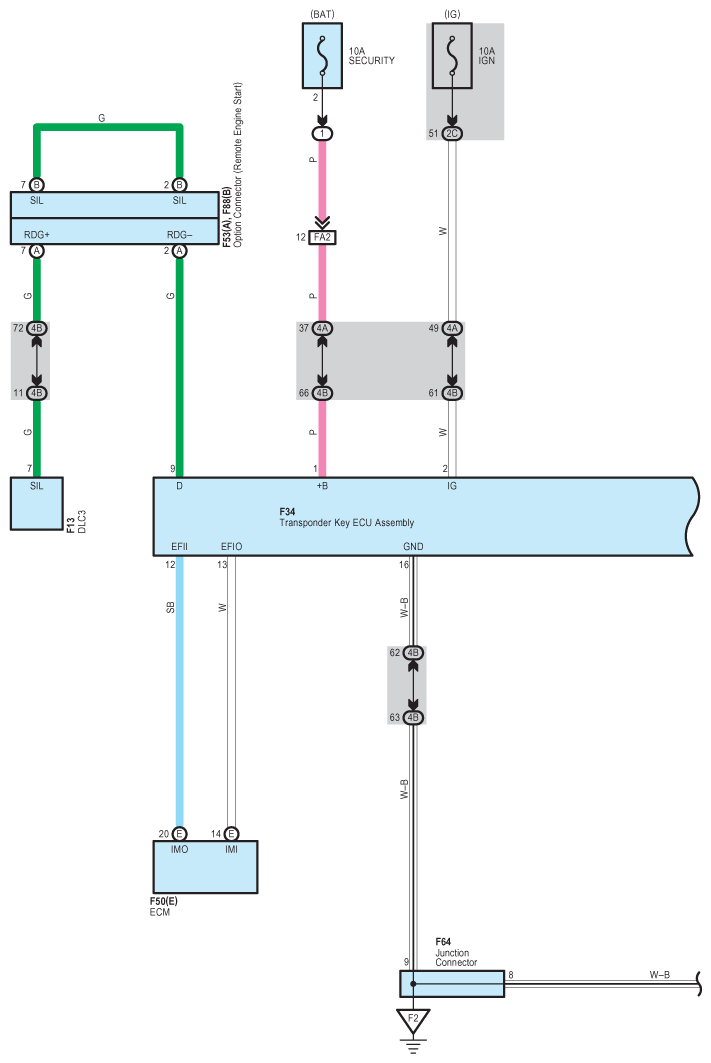

Fig 1: Engine Immobilizer System (w/o Smart Key) Wiring Diagram (1 Of 2)
G08792223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

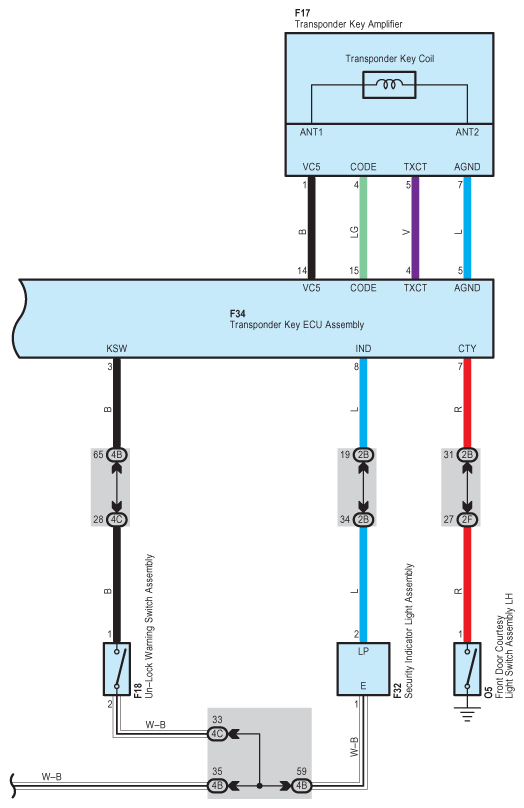

Fig 2: Engine Immobilizer System (w/o Smart Key) Wiring Diagram (2 Of 2)
G08792224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
