Kinetic Dynamic Suspension System: Notes

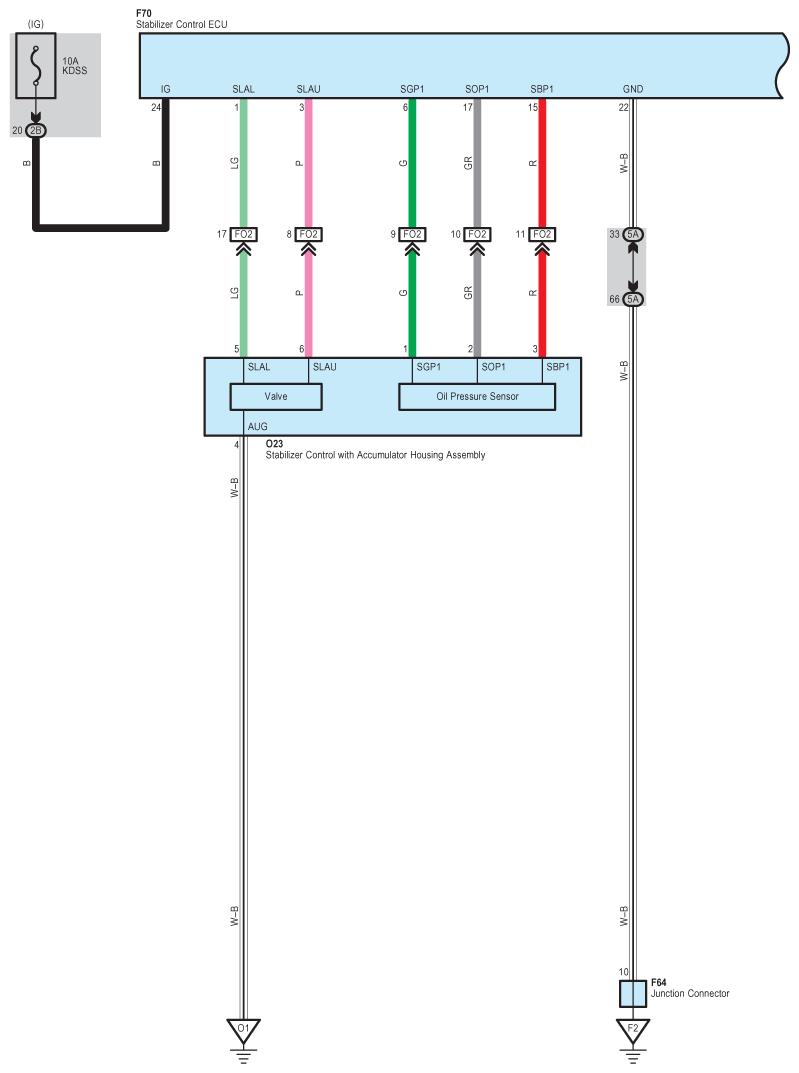

Fig 1: Kinetic Dynamic Suspension System Wiring Diagram (1 Of 5)
G08792346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

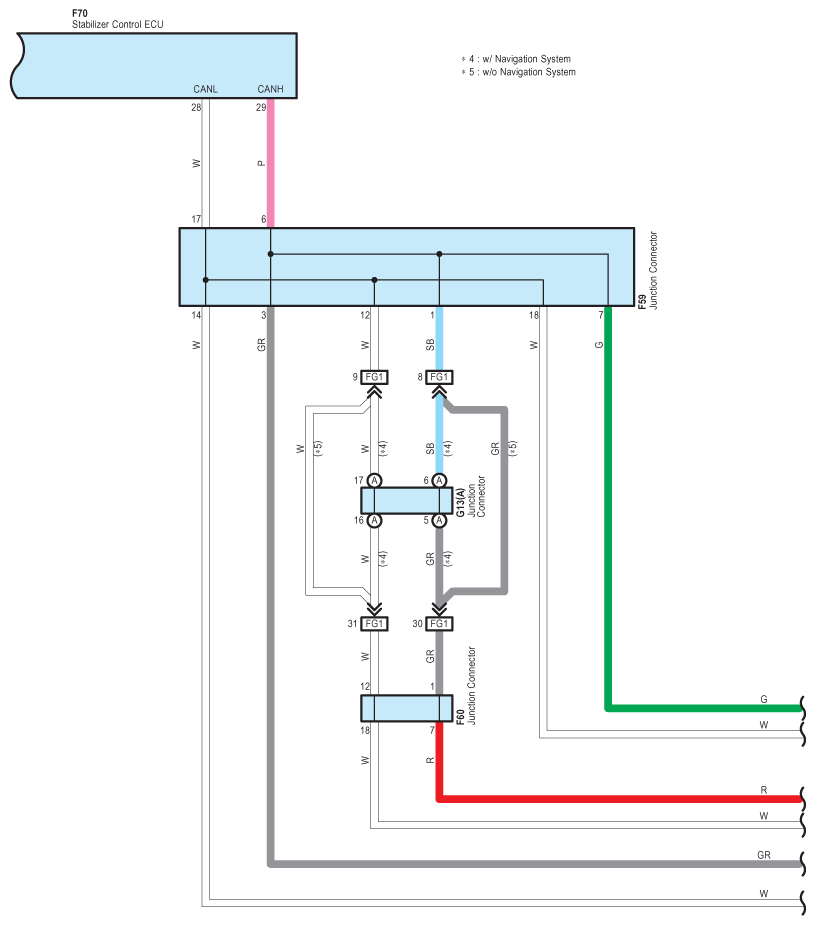

Fig 2: Kinetic Dynamic Suspension System Wiring Diagram (2 Of 5)
G08792347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

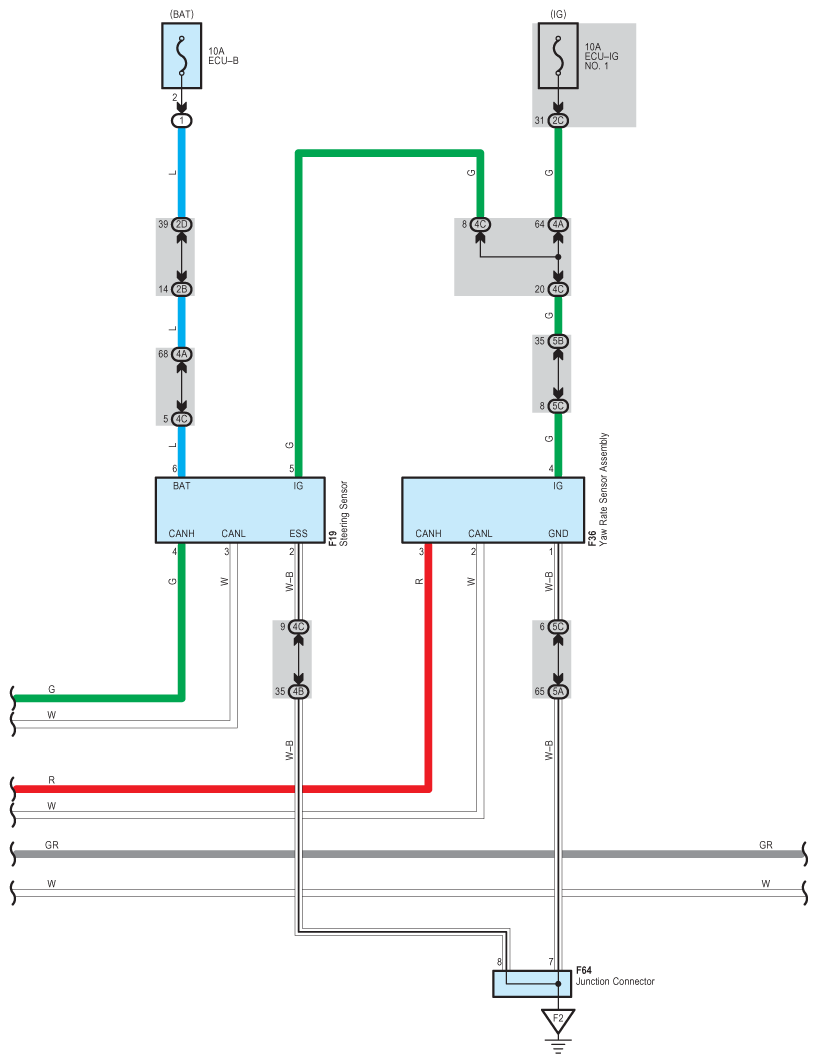

Fig 3: Kinetic Dynamic Suspension System Wiring Diagram (3 Of 5)
G08792348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

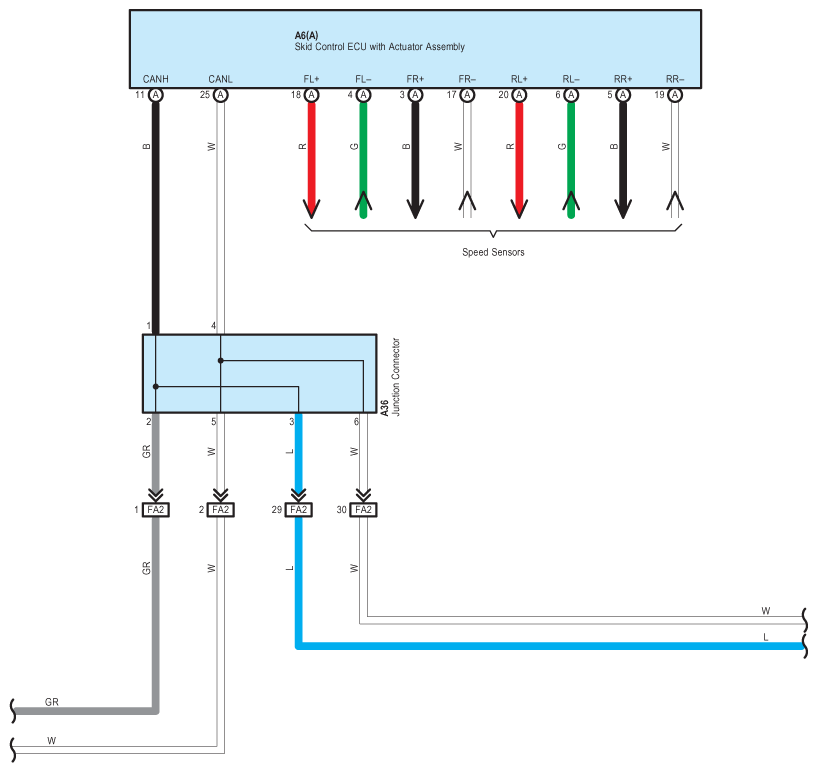

Fig 4: Kinetic Dynamic Suspension System Wiring Diagram (4 Of 5)
G08792349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

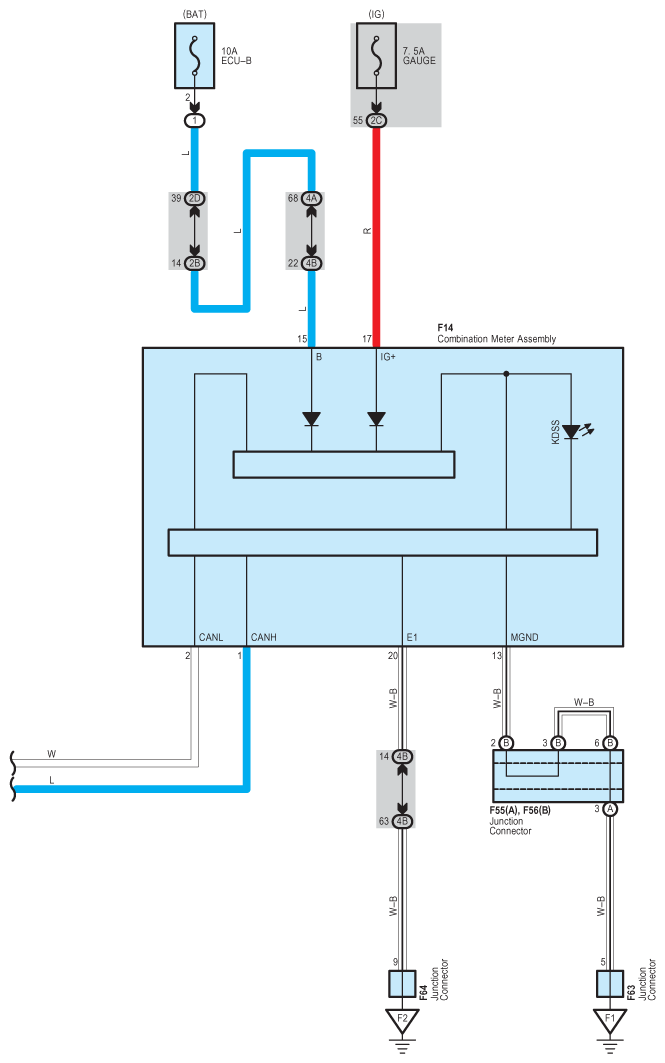

Fig 5: Kinetic Dynamic Suspension System Wiring Diagram (5 Of 5)
G08792350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
