Power Outlet (12V): Notes

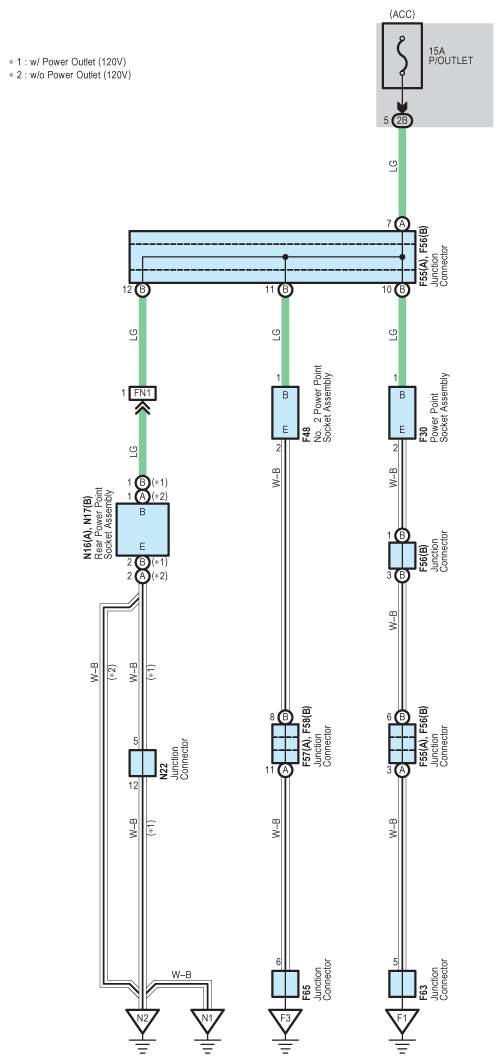

Fig 1: Power Outlet (12V) System Wiring Diagram

G08792397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
