Power Steering: Notes

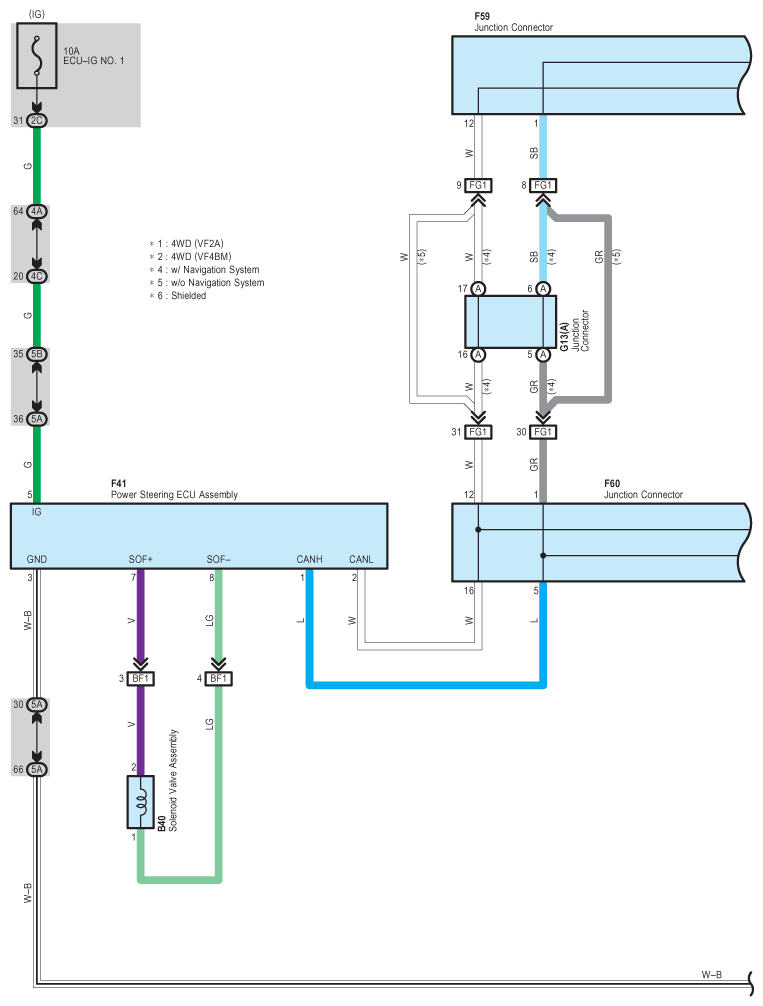

Fig 1: Power Steering System Wiring Diagram (1 Of 5)
G08792366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

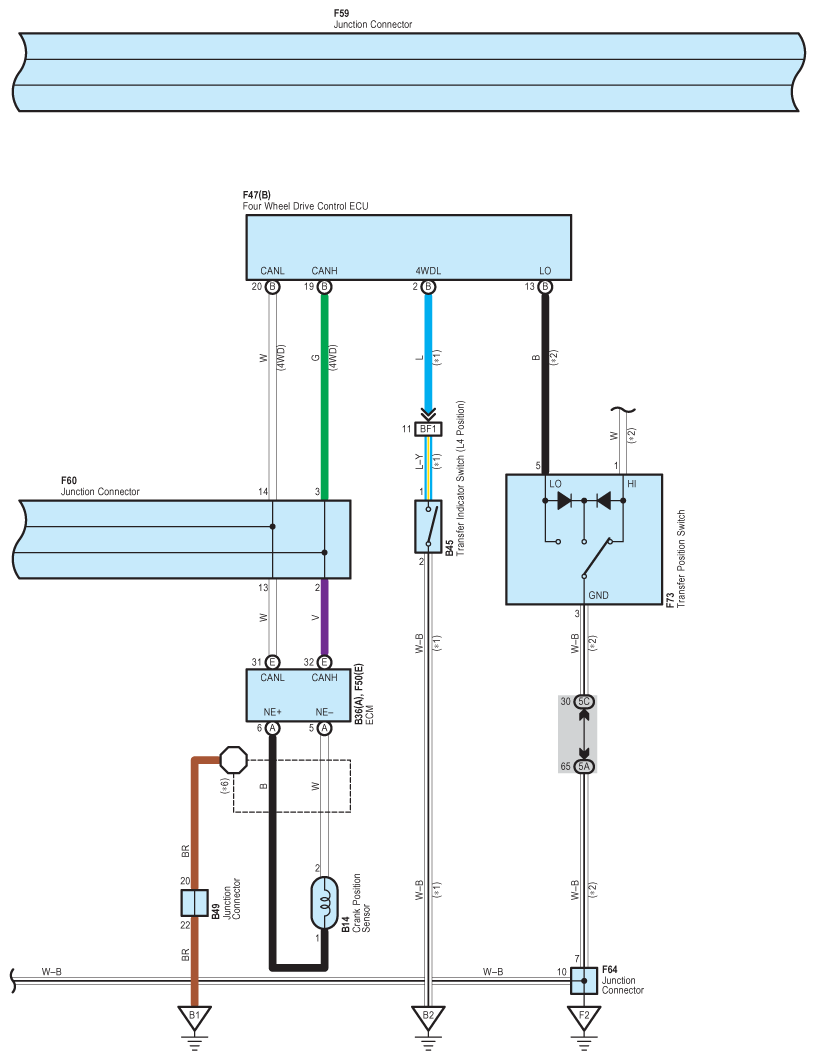

Fig 2: Power Steering System Wiring Diagram (2 Of 5)
G08792367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

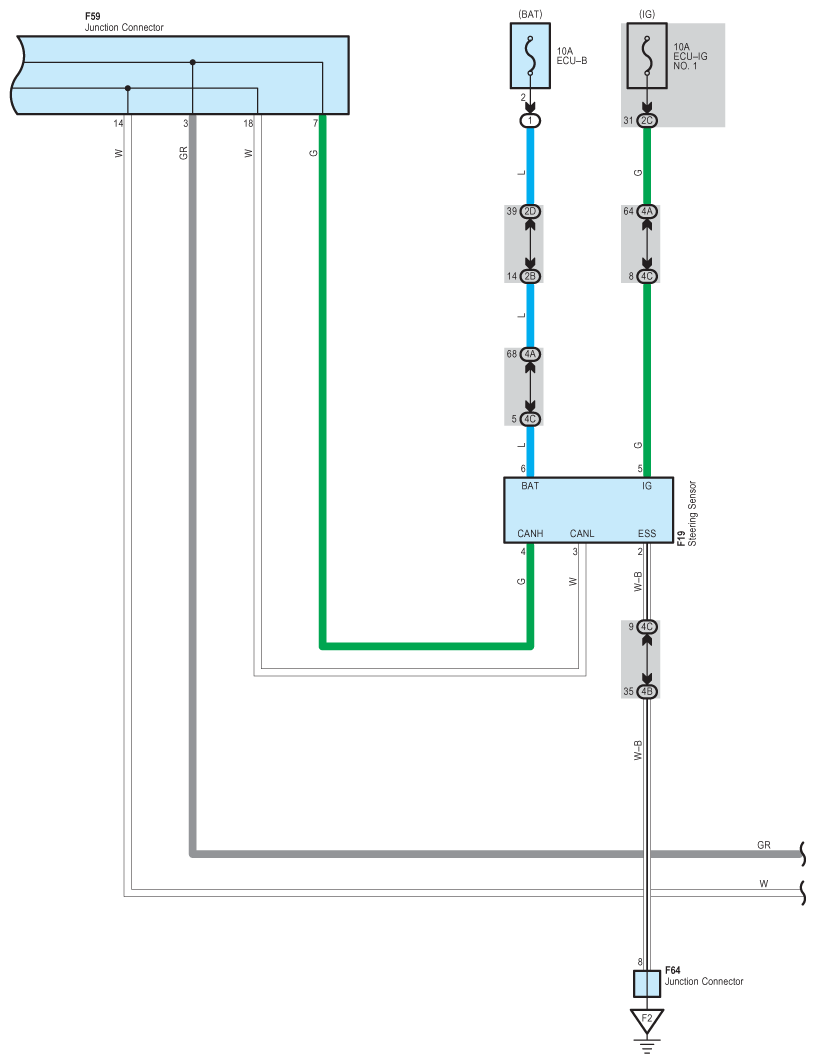

Fig 3: Power Steering System Wiring Diagram (3 Of 5)
G08792368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

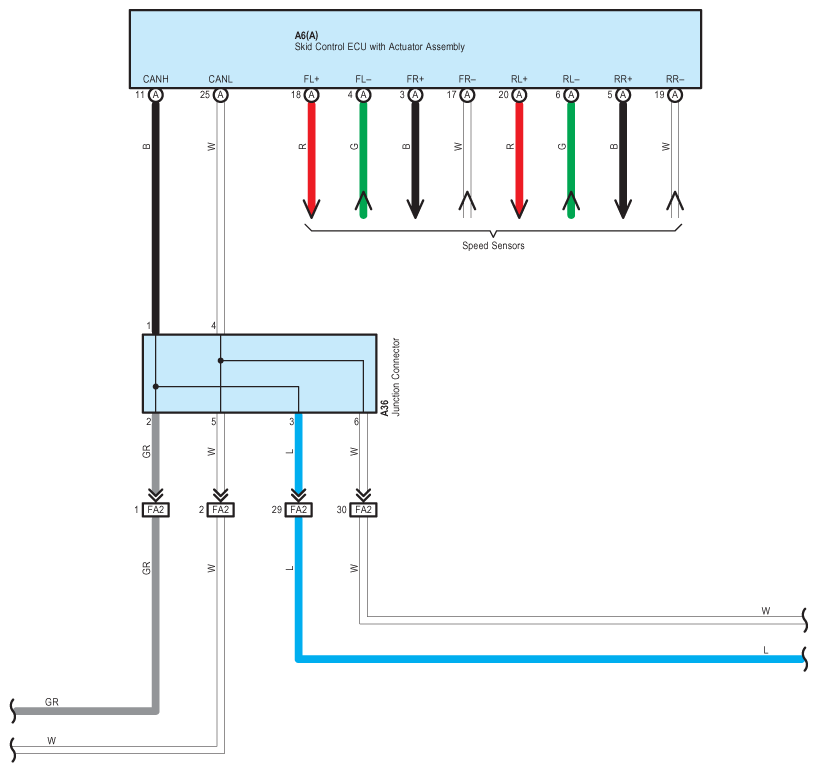

Fig 4: Power Steering System Wiring Diagram (4 Of 5)
G08792369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

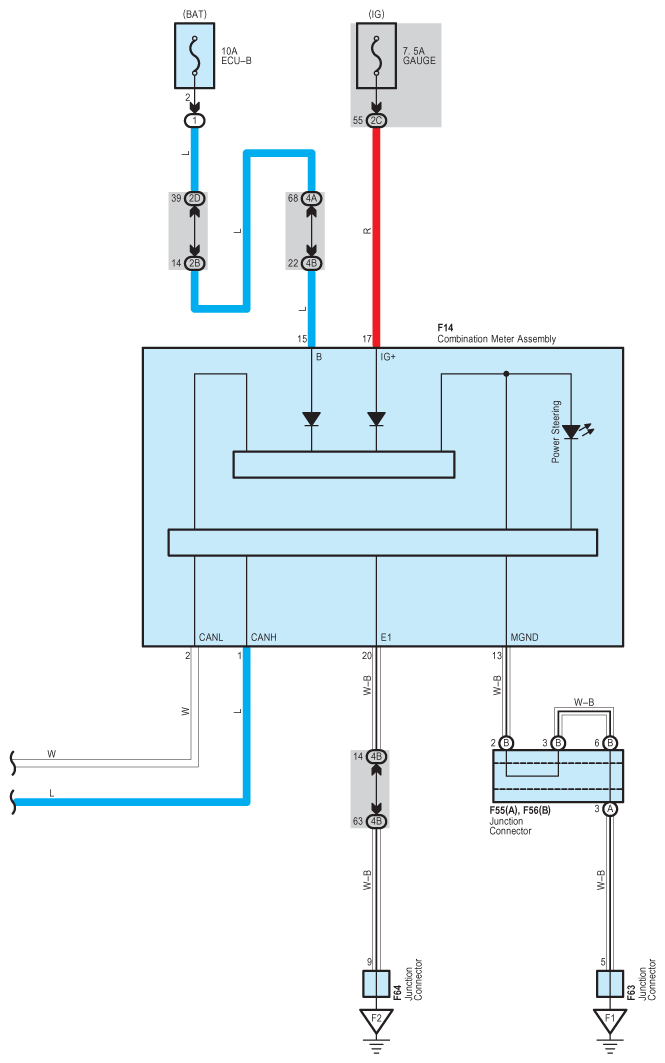

Fig 5: Power Steering System Wiring Diagram (5 Of 5)
G08792370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
