Trailer Towing: Notes

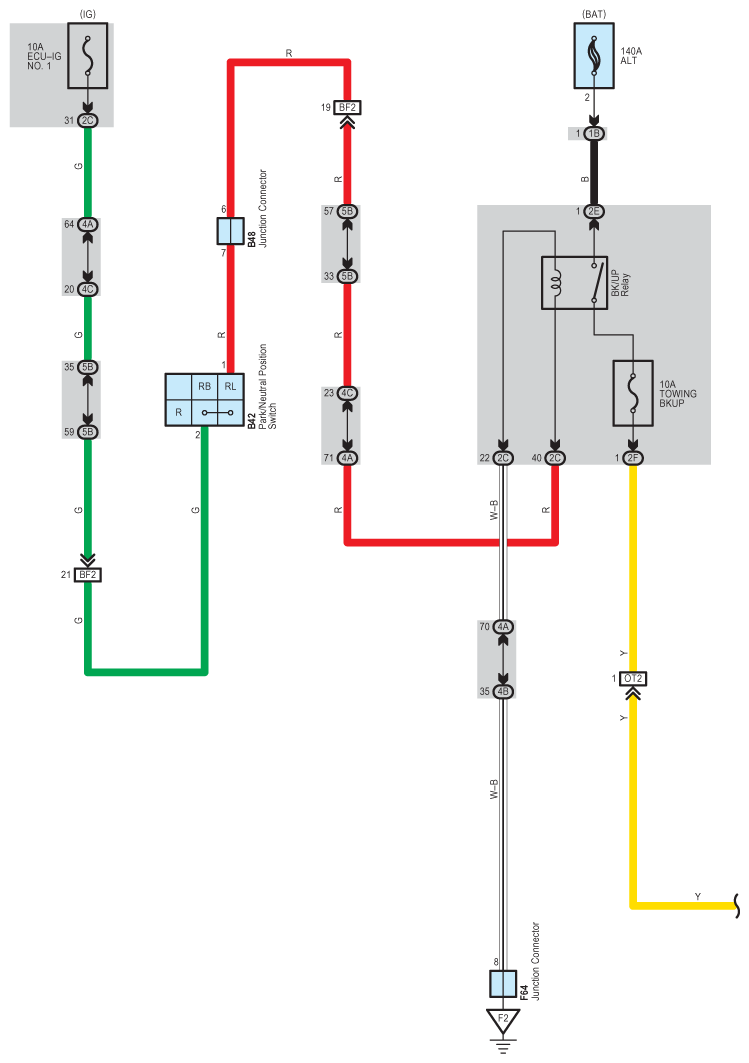

Fig 1: Trailer Towing System Wiring Diagram (1 Of 7)
G08792268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

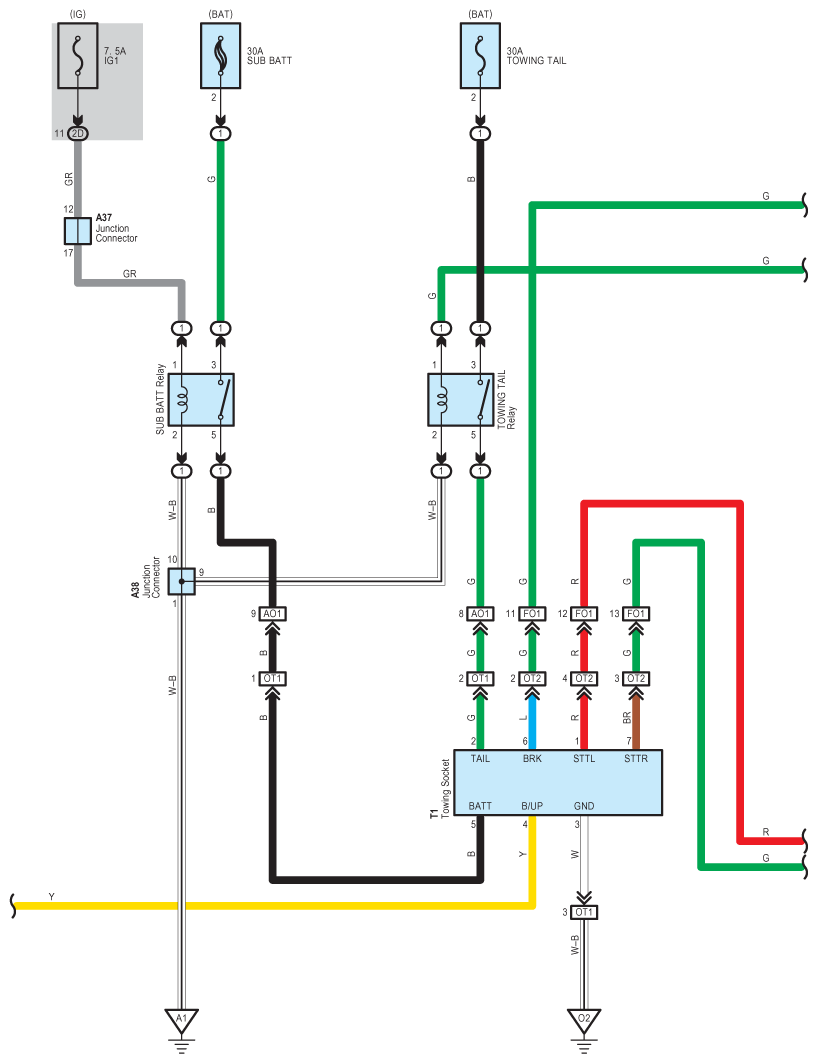

Fig 2: Trailer Towing System Wiring Diagram (2 Of 7)
G08792269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

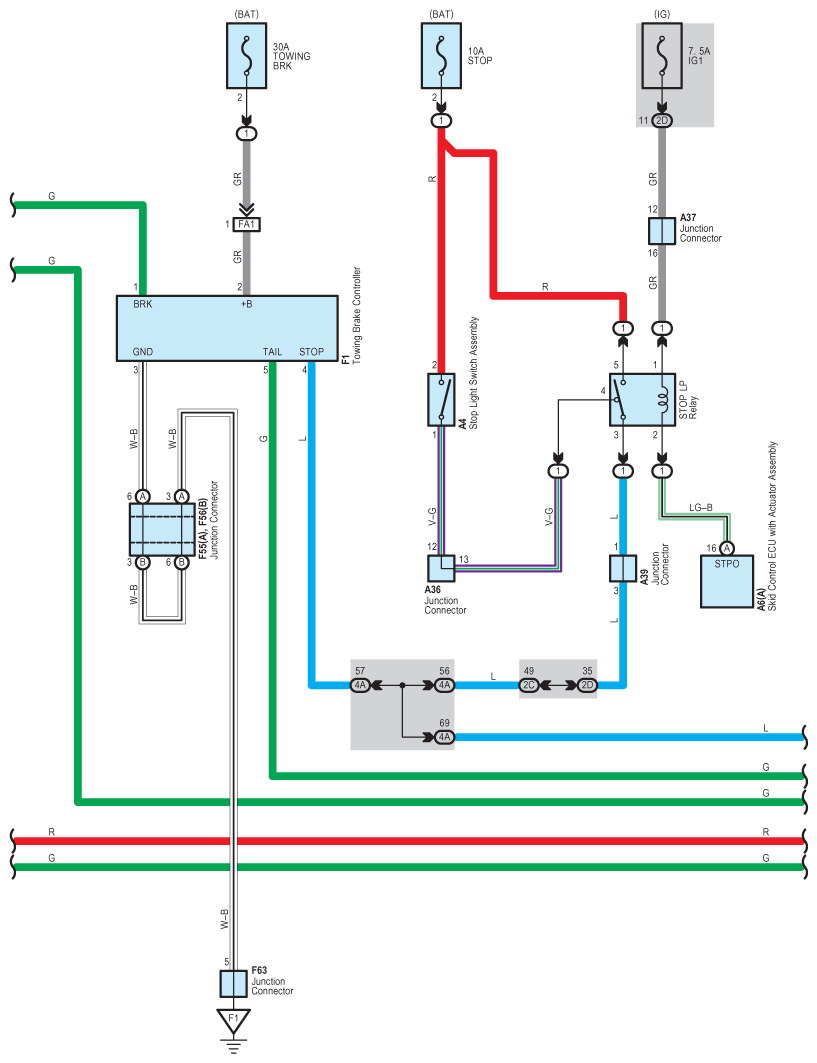

Fig 3: Trailer Towing System Wiring Diagram (3 Of 7)
G08792270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

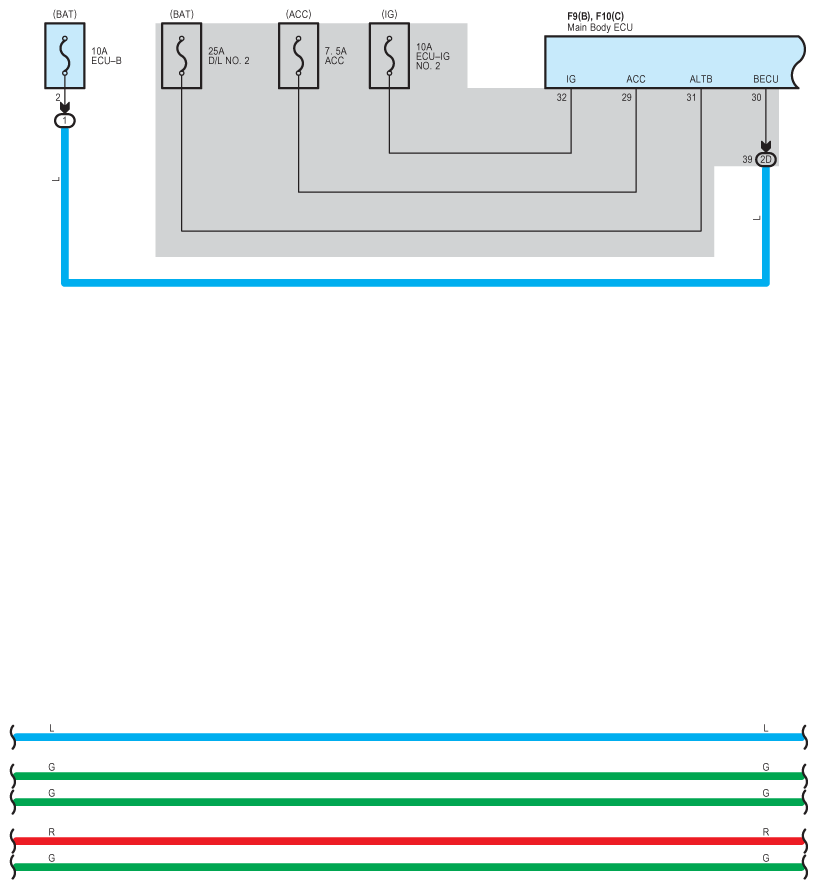

Fig 4: Trailer Towing System Wiring Diagram (4 Of 7)
G08792271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

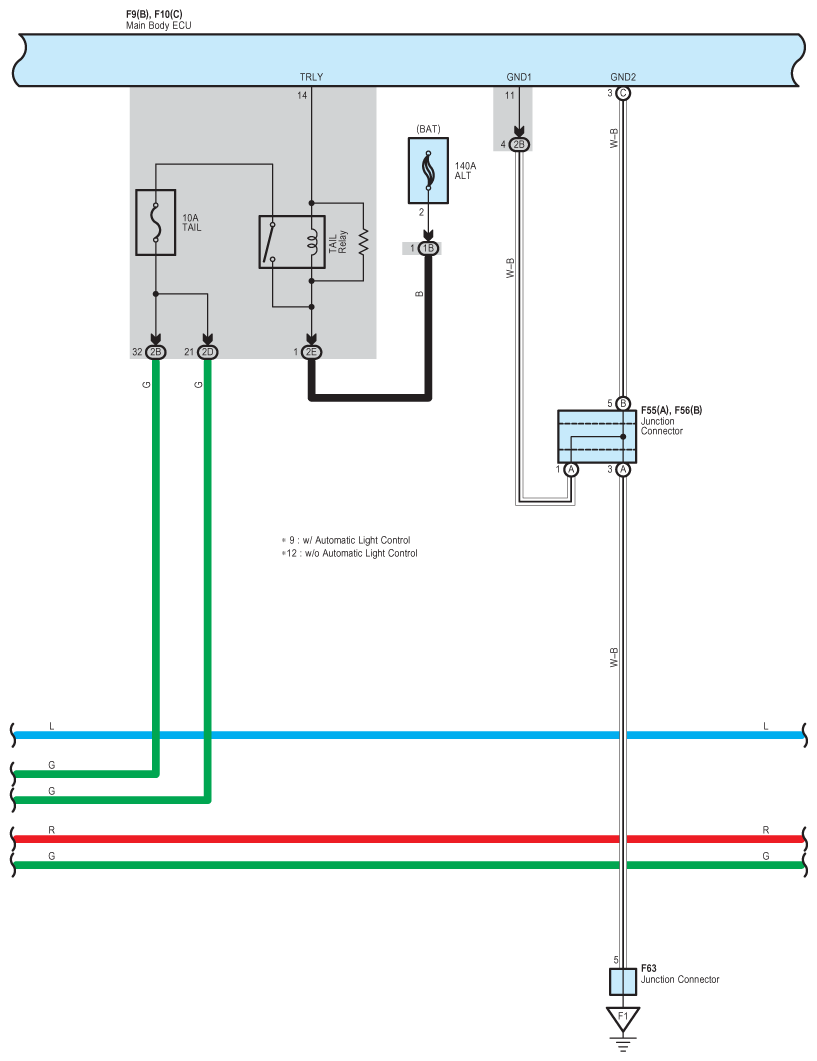

Fig 5: Trailer Towing System Wiring Diagram (5 Of 7)
G08792272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

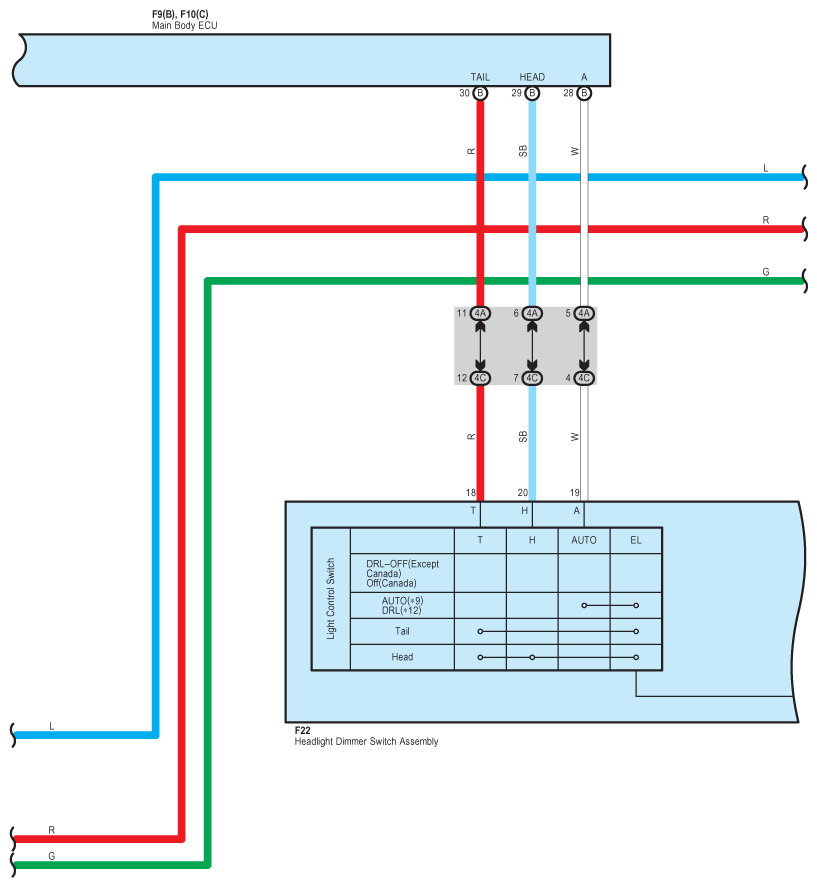

Fig 6: Trailer Towing System Wiring Diagram (6 Of 7)
G08792273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

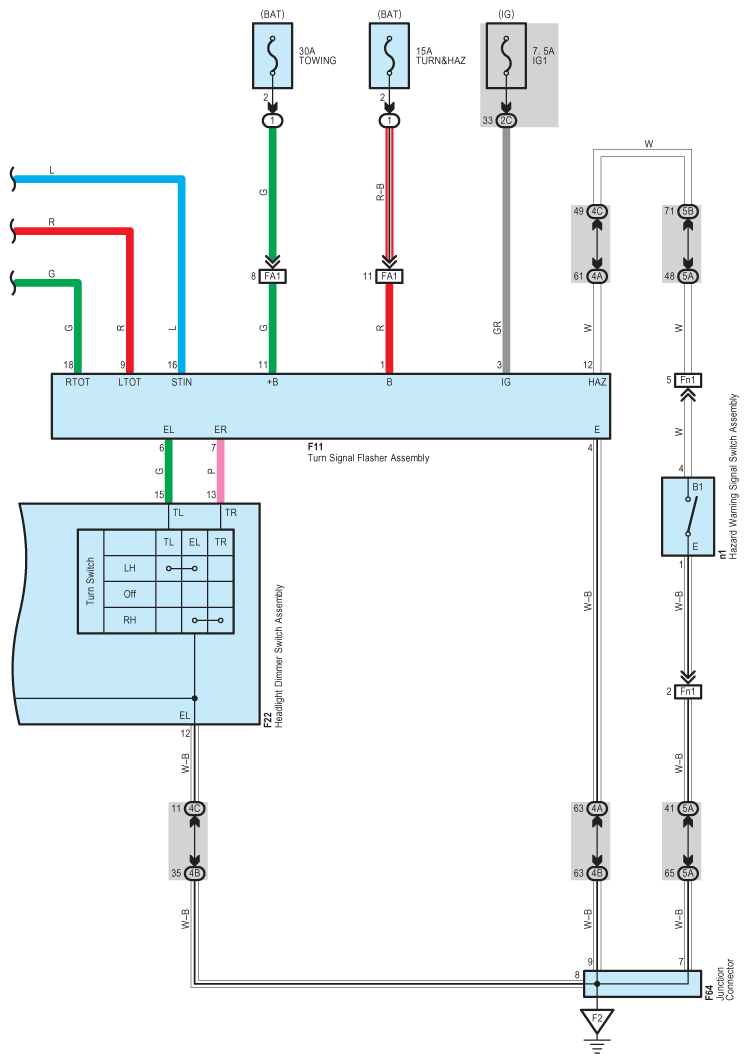

Fig 7: Trailer Towing System Wiring Diagram (7 Of 7)
G08792274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
