Parts Location: Illustration

Fig 1: Identifying Smart Key System Components Location (1 Of 4)
GTY302496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

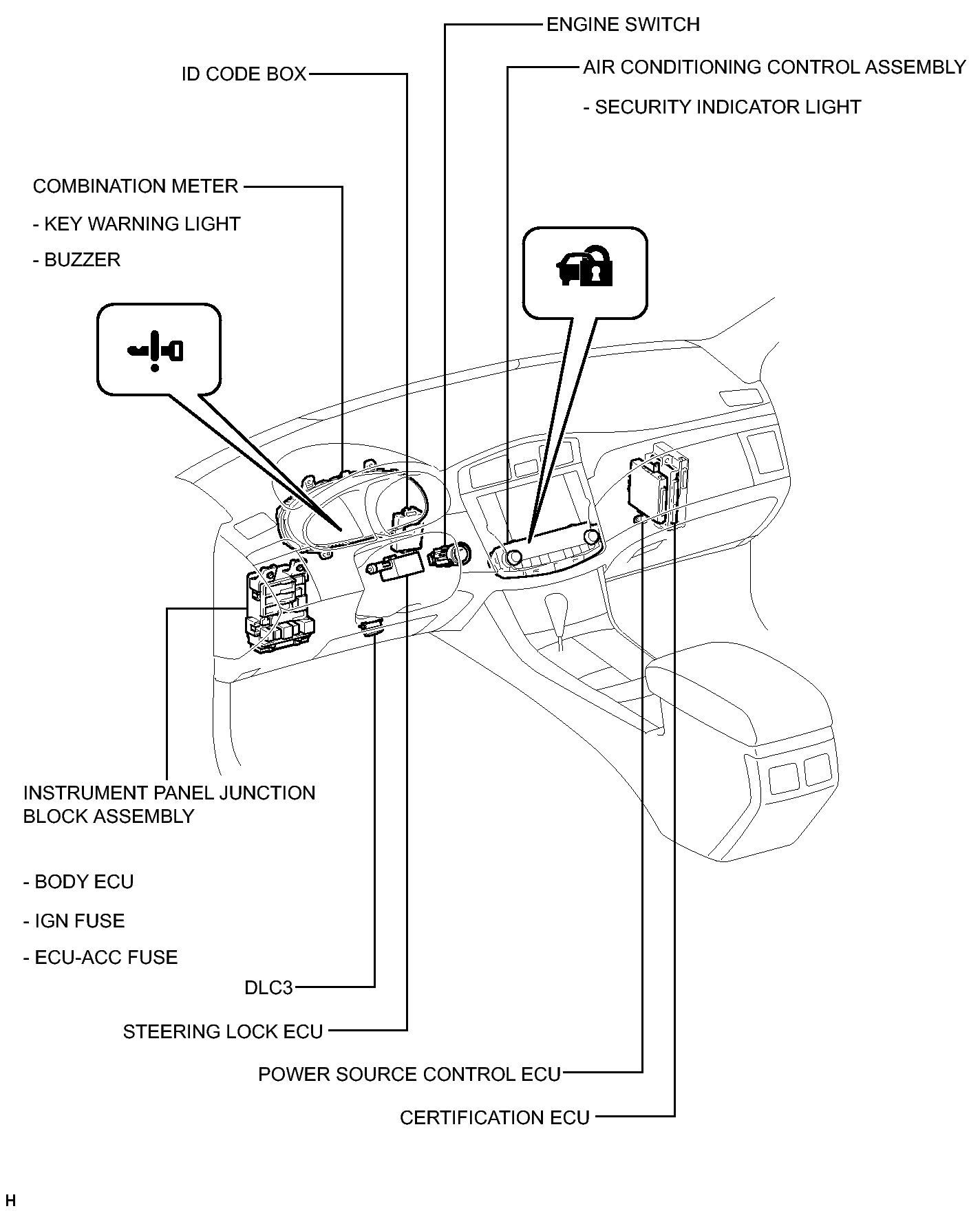

Fig 1: Identifying Smart Key System Components Location (2 Of 4)
GTY297875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

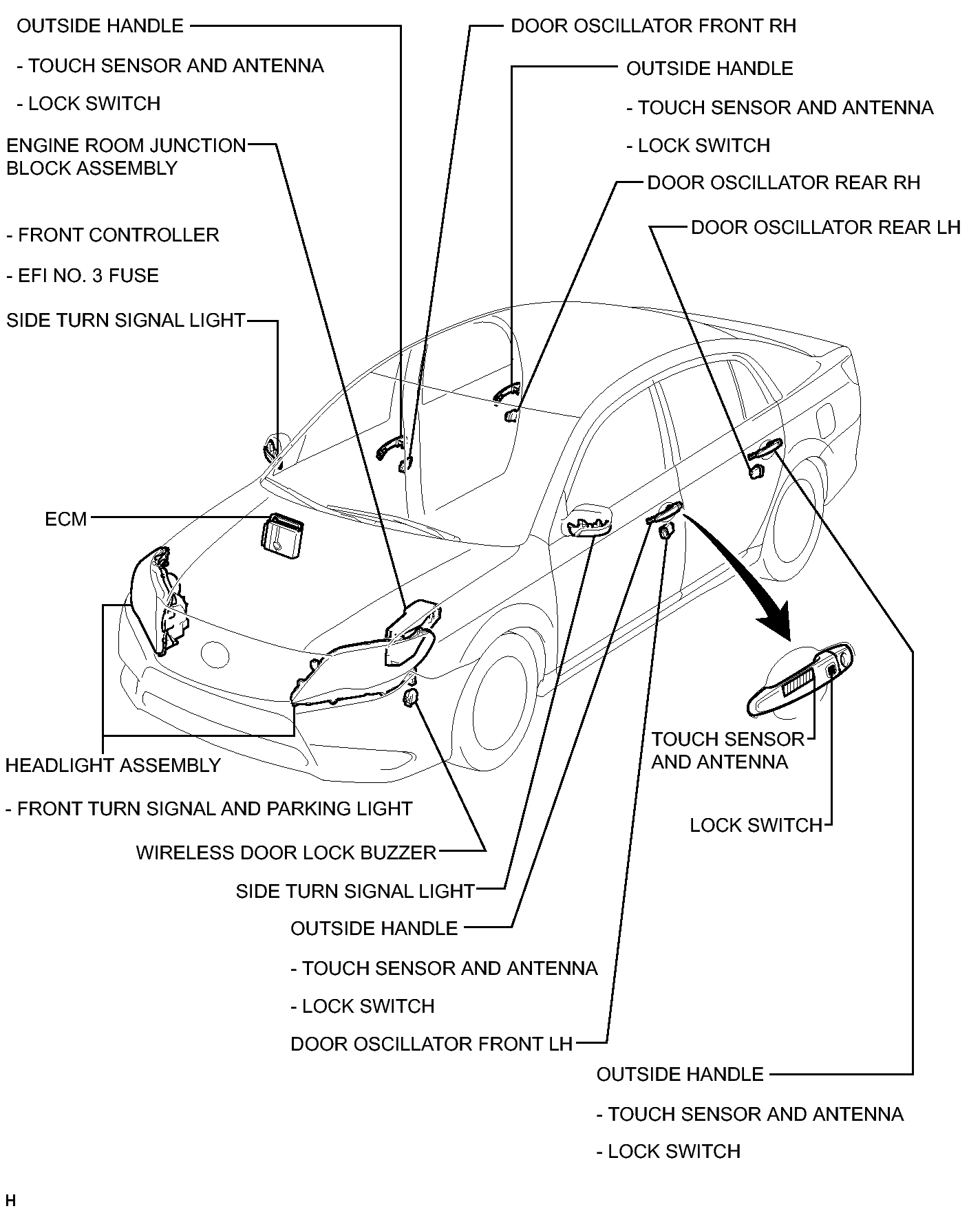

Fig 1: Identifying Smart Key System Components Location (3 Of 4)
GTY296044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

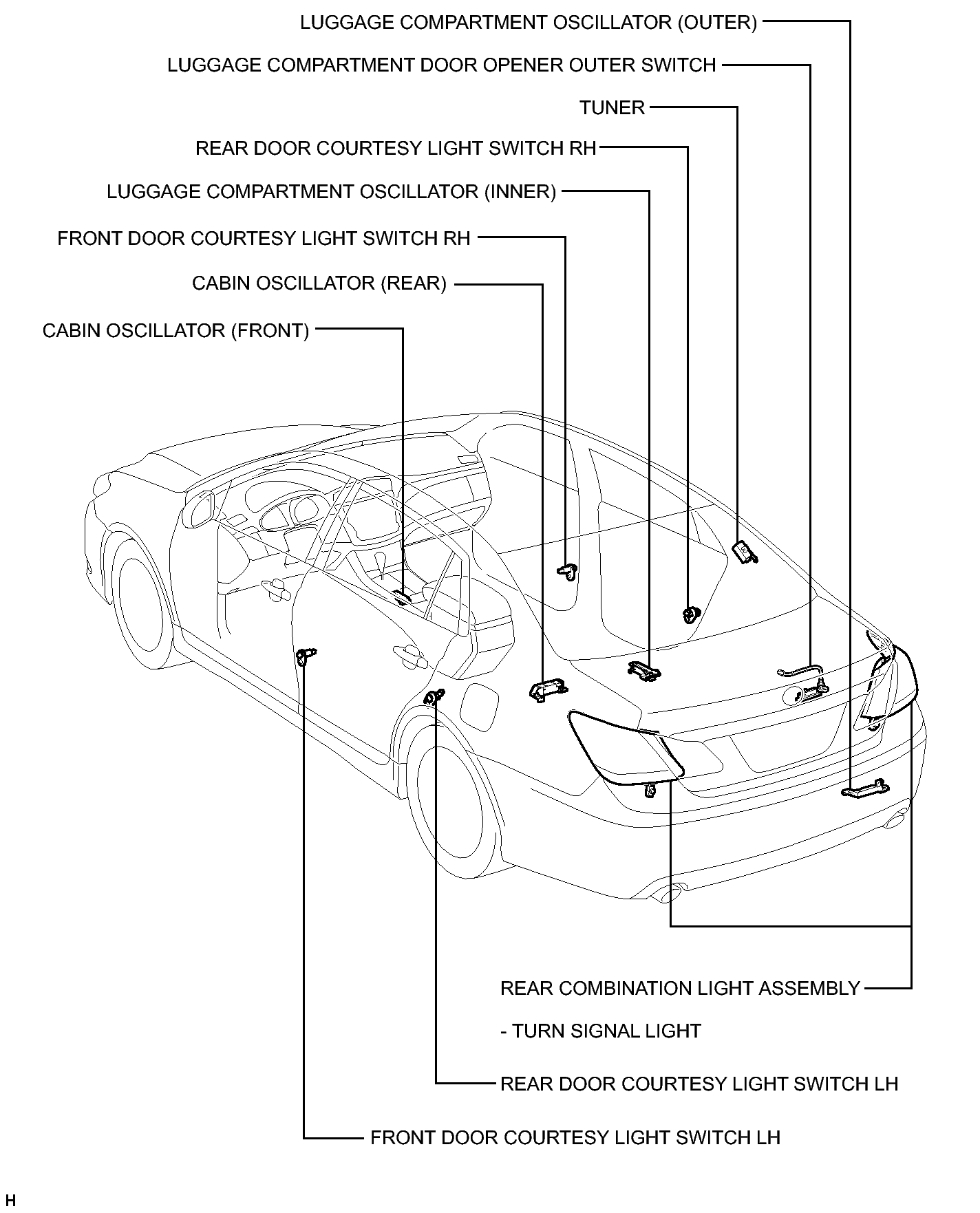

Fig 1: Identifying Smart Key System Components Location (4 Of 4)
GTY304573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
