Home › Toyota › 2012 › Avalon Base › Repair and Diagnosis › Body & Frame › Windows › Windshield / WINDOWGLASS (Service Information) › Back Window Glass › Components › Illustration

Back Window Glass: Components: Illustration

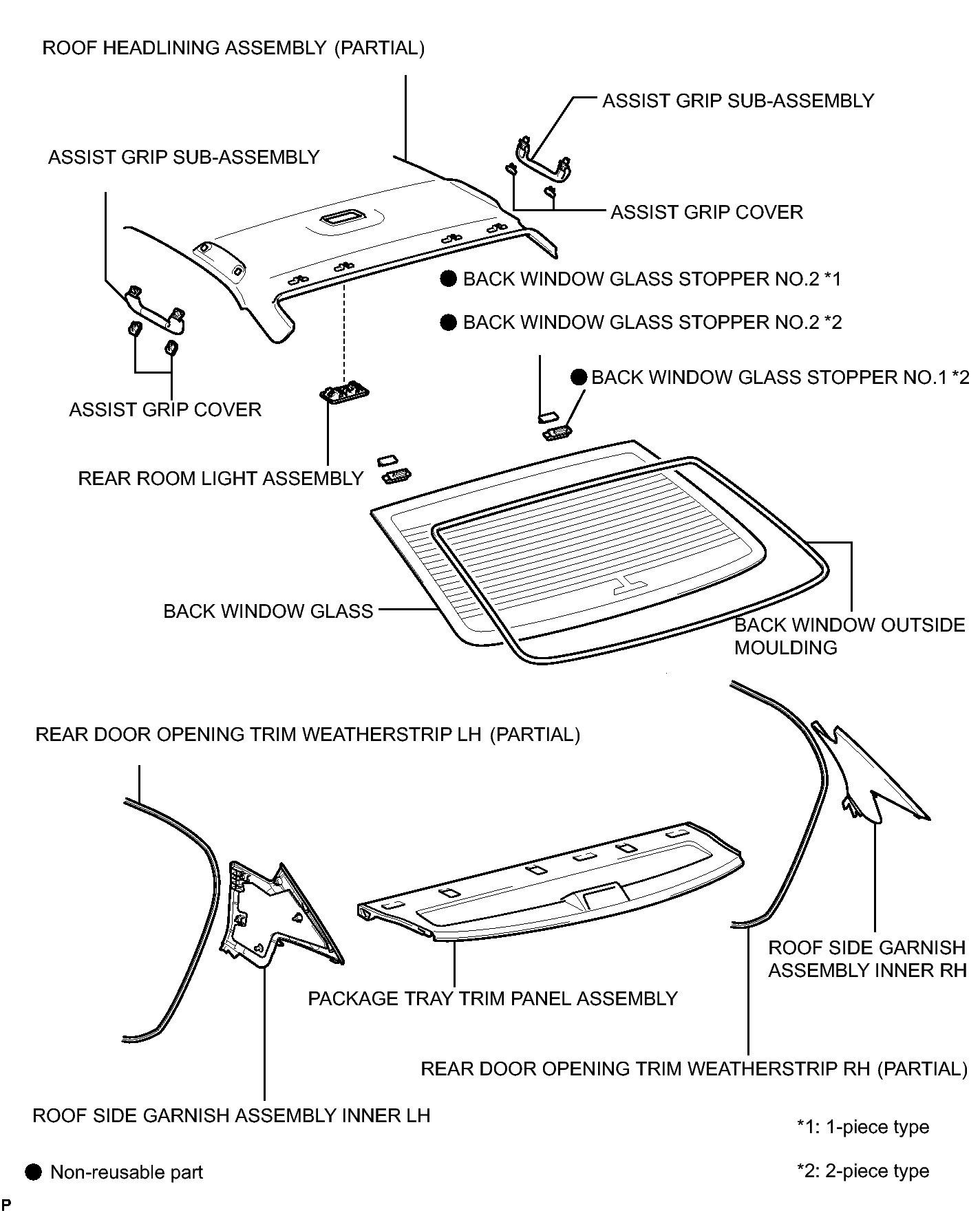

Fig 1: Identifying Back Window Glass Replacement Components
GTY187546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
