Windshield Glass: Components: Illustration

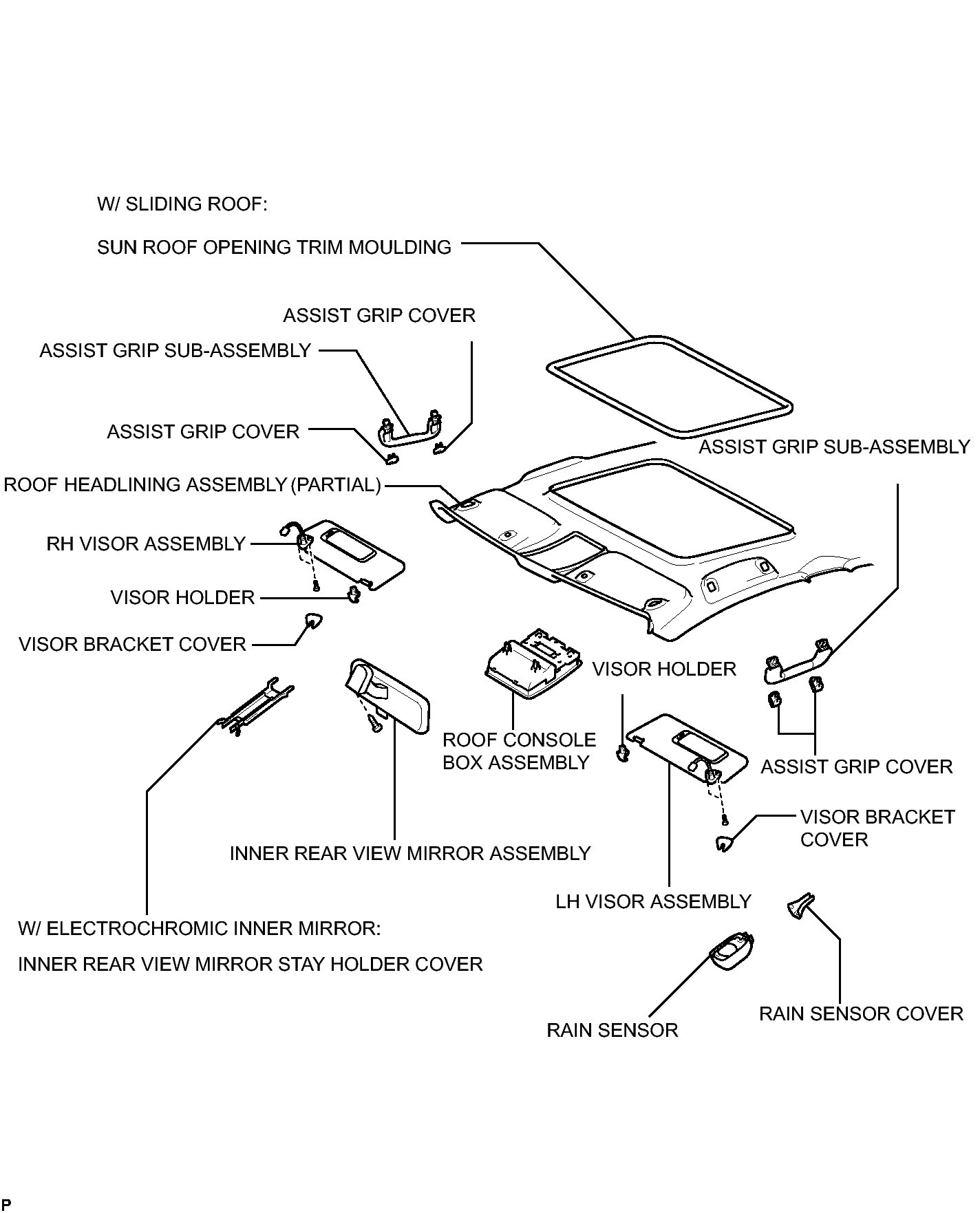

Fig 1: Identifying Windshield Glass Replacement Components
GTY177365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
