Starting (w/o Smart Key System)
›
Notes
Starting (w/o Smart Key System): Notes

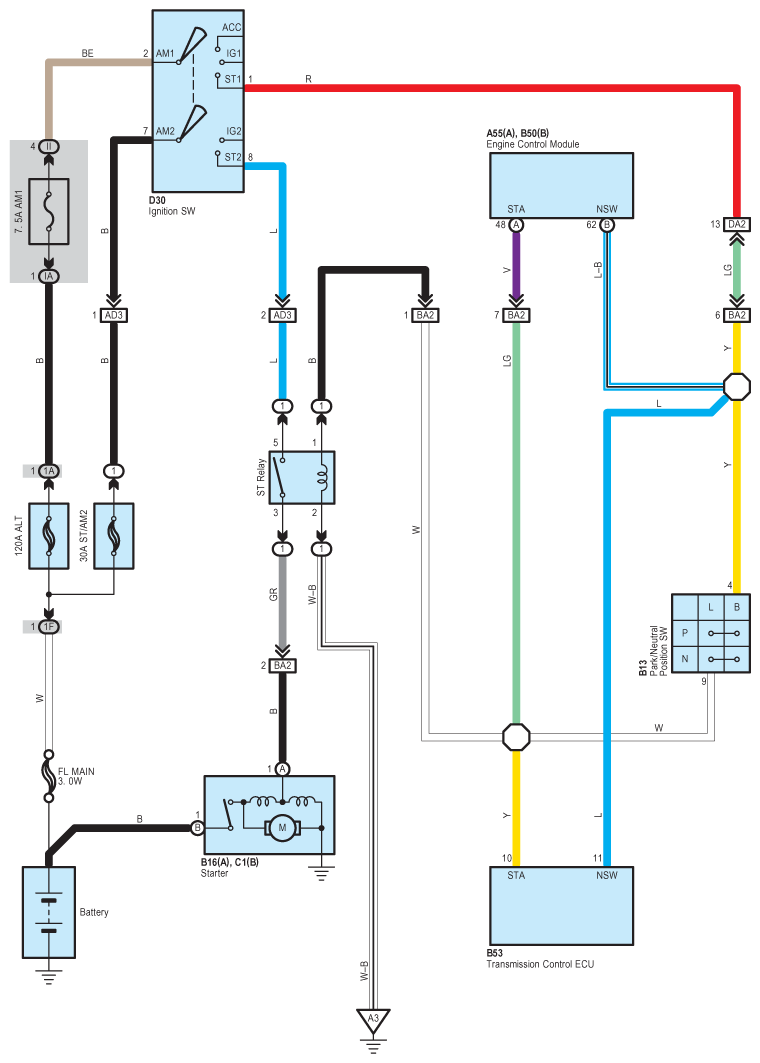

Fig 1: Starting (w/o Smart Key System) System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
