Charging System (Inspection)
›
Charging System
›
System Diagram
›
System Diagram
System Diagram

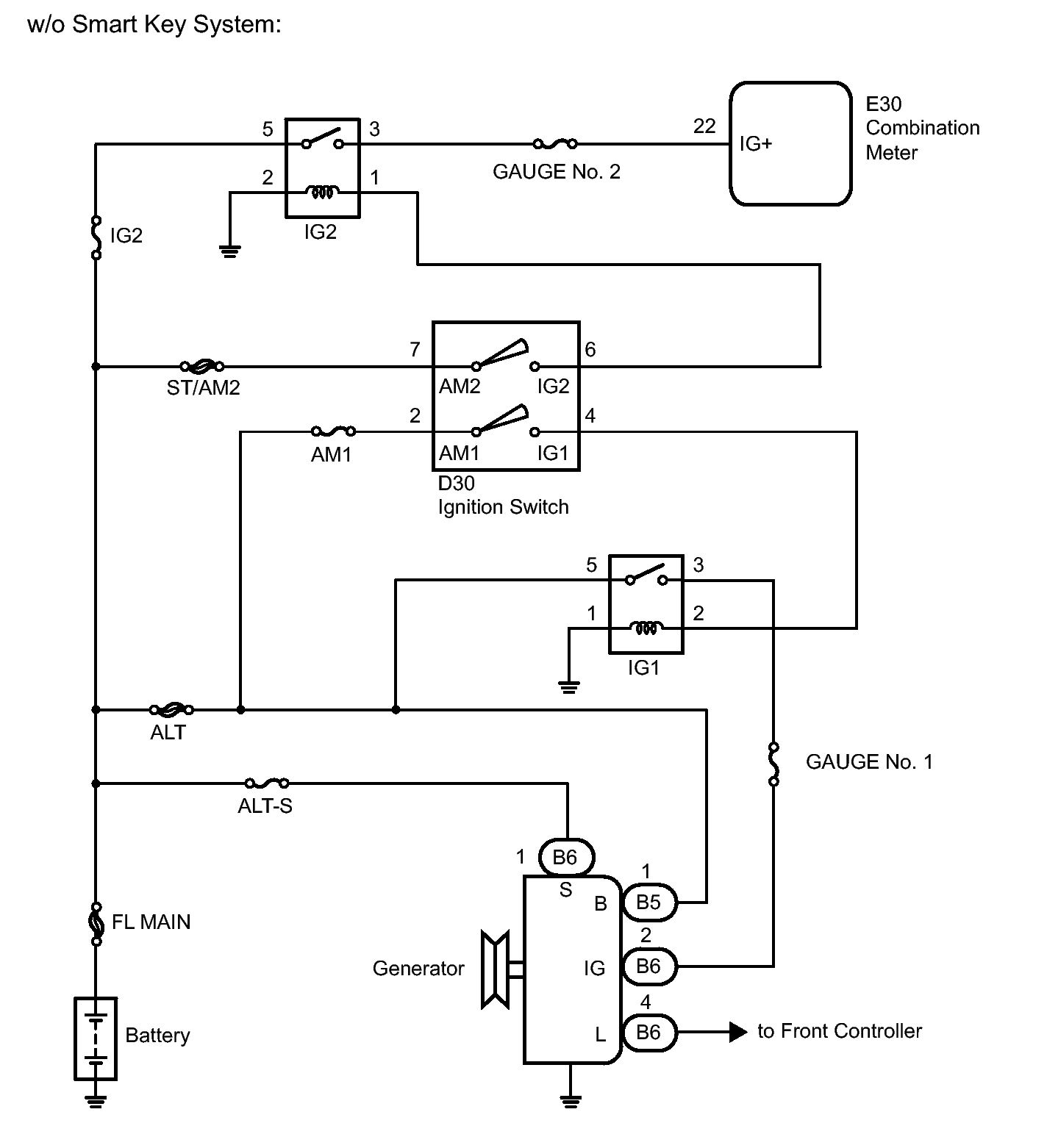

Fig 1: Charging System (w/o Smart Key System) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

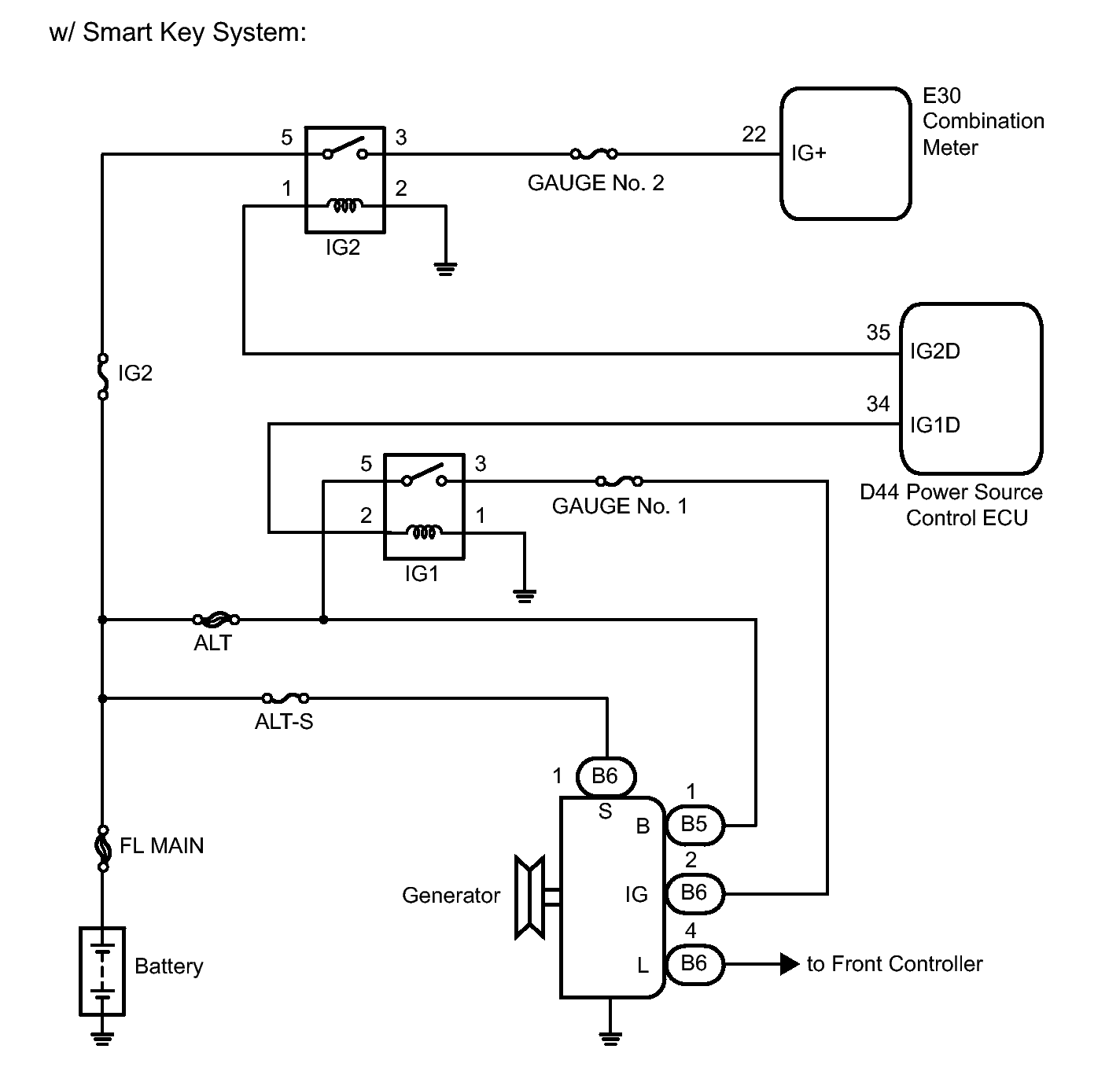

Fig 2: Charging System (w/ Smart Key System) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
