Windshield Glass: Installation: Installation

  1. INSTALL WINDSHIELD GLASS STOPPER NO. 2
    1. Coat the installation part of the stopper with Primer G.
      Fig 1: Identifying Stoppers Onto Glass
      GTY196442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Dispose of any excess Primer G.
      • Do not apply too much Primer G.
    2. Install 2 new stoppers onto the glass as shown in the illustration.

      Specification

      Area Measurement
      A 7.7 mm (0.303 in.)
      B 40.0 mm (1.575 in.)
  2. INSTALL WINDSHIELD GLASS STOPPER NO. 1
    1. Install 2 new stoppers to the vehicle body as shown in the illustration.
      Fig 2: Installing Stoppers To Vehicle Body
      GTY195448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL WINDSHIELD GLASS RETAINER
    1. Install 2 new retainers onto the glass as shown in the illustration.
      Fig 3: Installing Windshield Glass Retainer Onto Glass
      GTY196443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL WINDOW GLASS ADHESIVE DAM
    1. Coat the installation part of the windshield glass adhesive dam with Primer G.
      Fig 4: Identifying Window Glass Adhesive Dam
      GTY182350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Dispose of any excess Primer G.
      • Do not apply too much primer.
    2. Install a new dam as shown in the illustration.

      Specification

      Area Measurement
      a 7.0 mm (0.276 in.)
      b 48.4 mm (1.905 in.)
  5. INSTALL WINDSHIELD GLASS
    1. Position the glass.
      1. Using the suction cup, place the glass in the correct position.
        Fig 5: Identifying Marks On Glass And Vehicle Body
        GTY195493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Check that the whole contact surface of the glass rim is perfectly even.
      3. Place reference marks on the glass and vehicle body.
        NOTE:

        Check that the stoppers are attached to the vehicle body correctly.

        HINT:

        When reusing the glass, check and correct the reference mark positions.

      4. Using a suction cup, remove the glass.
    2. Using a brush, coat the exposed areas of the vehicle body, where all adhesive has been removed with Primer M.

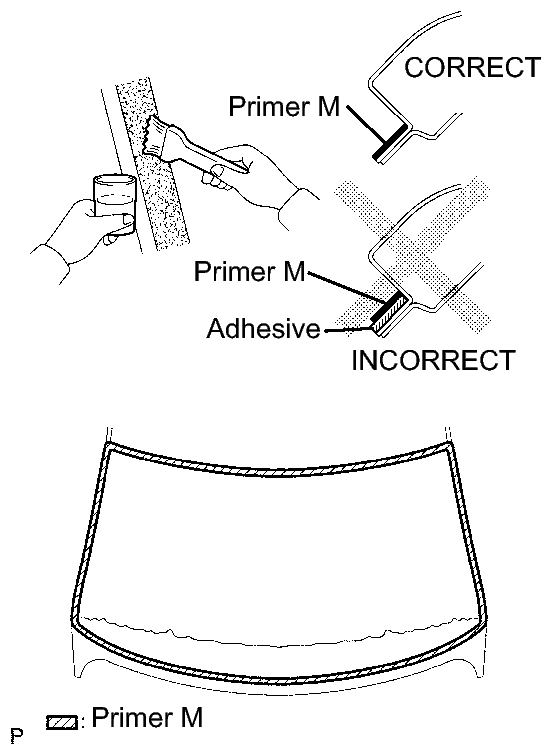

      Fig 6: Coating Edge Of Glass And Contact Surface With Primer M
      GTY195473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Dispose of any excess Primer M.
      • Do not apply too much Primer M.
    3. Using a brush or sponge, coat the edge of the glass and the contact surface with Primer M.

      HINT:

      If a non-specified area is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Dispose of away any excess Primer M.
      • Do not apply too much Primer M.
    4. Apply adhesive.
      Fig 7: Cutting Off Tip Of Cartridge Nozzle
      GTY178370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Adhesive

      Toyota Genuine Windshield Glass Adhesive or equivalent

      1. Cut off the tip of the cartridge nozzle as shown in the illustration.

        HINT:

        After cutting off the tip, use adhesive within the time described in the table below.

        Usage time frame

        Temperature Usage time frame
        35°C(95°F) 15 minutes
        20°C(68°F) 1 hour 40 minutes
        5°C(41°F) 8 hour
      2. Load a sealer gun with the cartridge.
      3. Coat the glass with adhesive as shown in the illustration.

        Specification

        Area Measurement
        a 8.0 mm (0.315 in.)
        b 12.0 mm (0.472 in.)
    5. Install the glass.
      Fig 8: Installing Glass With Aligning Marks
      GTY195496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a suction cup, position the glass so that the reference marks are aligned. Press it in gently along the rim.
        NOTE:
        • Allow the primer coating to dry for 3 minutes or more.
        • Check that the stoppers are attached to the vehicle body correctly.
        • Check that there is a small gap between the vehicle body and glass.
      2. Lightly press the front surface of the glass to ensure that the glass is securely fit to the vehicle body.
      3. Using a scraper, remove any excess or protruding adhesive (Procedure A).
        Fig 9: Removing Excess Or Protruding Adhesive
        GTY195495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Make sure that adhesive is applied up to the glass rim.

        NOTE:

        The vehicle should not be driven until the time indicated in the table below has elapsed after procedure A.

        Minimum time

        Temperature Minimum time prior to driving vehicle
        35°C(95°F) 1 hour 30 minutes
        20°C(68°F) 5 hours
        5°C(41°F) 24 hours
  6. INSTALL WINDSHIELD MOULDING OUTER UPPER
    1. Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Dispose of away any excess Primer G.
      • Do not apply too much Primer G.
    2. Install the moulding.
  7. INSPECT FOR LEAKS AND REPAIR
    1. Conduct a leak test after the adhesive has completely hardened.
    2. Seal any leaks with out glass sealer.
  8. INSTALL ROOF HEADLINING ASSEMBLY
  9. INSTALL SUN ROOF OPENING TRIM MOULDING
  10. INSTALL RAIN SENSOR
  11. INSTALL RAIN SENSOR COVER
  12. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER
  13. INSTALL VISOR HOLDER
  14. INSTALL ROOF CONSOLE BOX ASSEMBLY
  15. INSTALL RH VISOR ASSEMBLY
  16. INSTALL LH VISOR ASSEMBLY
  17. INSTALL VISOR BRACKET COVER
  18. INSTALL ASSIST GRIP SUB-ASSEMBLY
  19. INSTALL ASSIST GRIP SUB-ASSEMBLY FRONT
  20. INSTALL FRONT PILLAR GARNISH RH  . Refer to INSTALLATION - Step 2 .
  21. INSTALL FRONT PILLAR GARNISH LH  . Refer to INSTALLATION - Step 1 .
  22. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  23. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  24. INSTALL COWL TOP VENTILATOR LOUVER RH
  25. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH
  26. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH
