Headlight Beam Level Control (Manual)
›
Notes
Headlight Beam Level Control (Manual): Notes

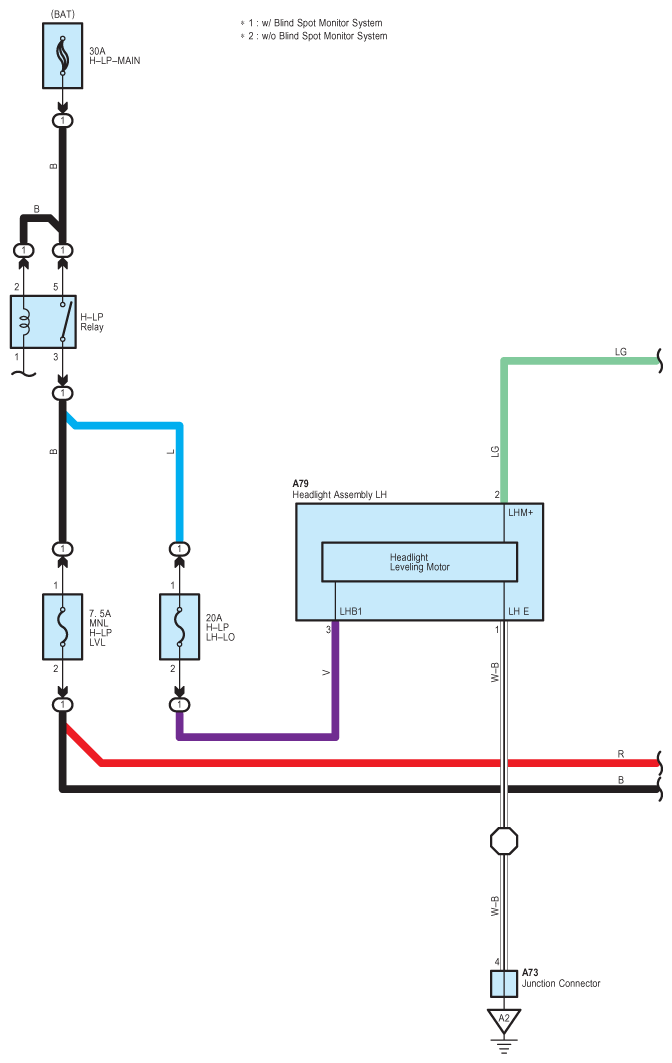

Fig 1: Headlight Beam Level Control (Manual) System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

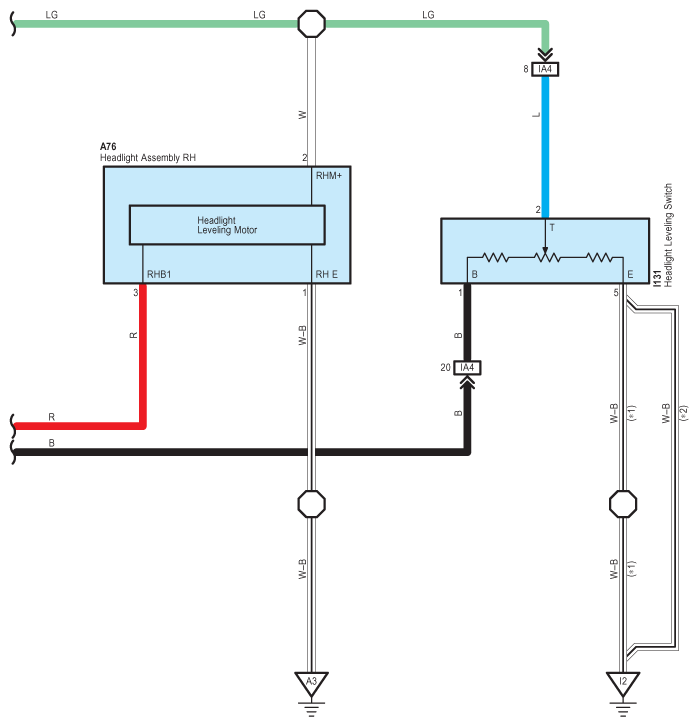

Fig 2: Headlight Beam Level Control (Manual) System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
