Starting (w/o Smart Key System): Notes

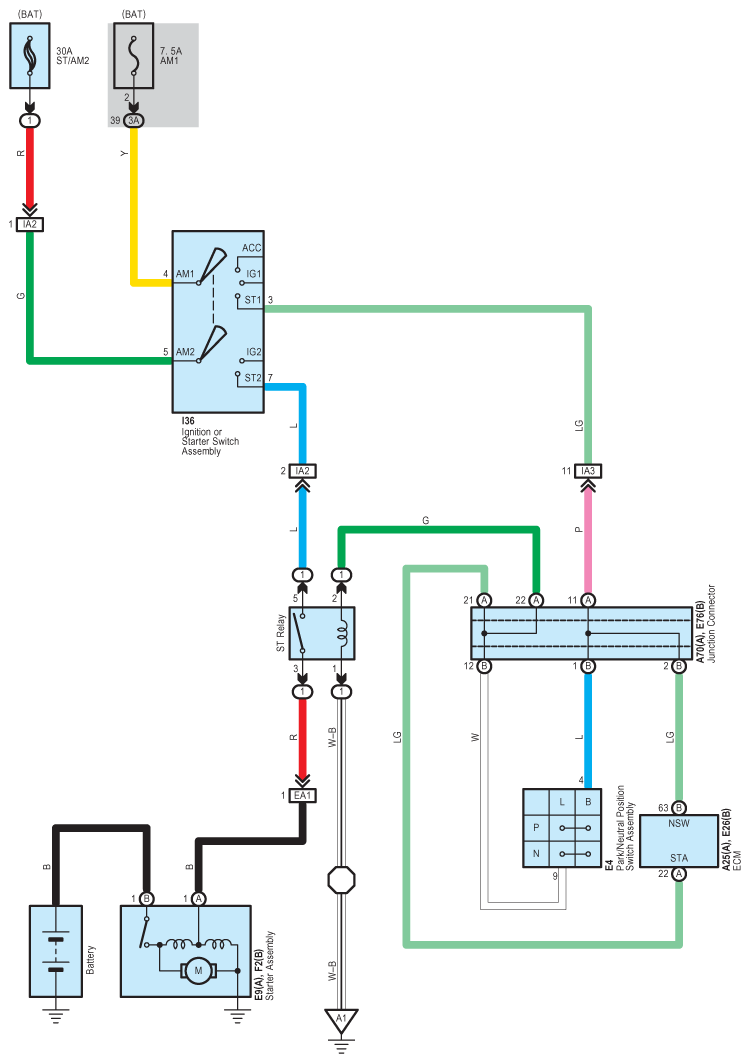

Fig 1: Starting (w/o Smart Key System) System Wiring Diagram
G08798074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
