Wireless Door Lock Control (w/o Smart Key System): Notes

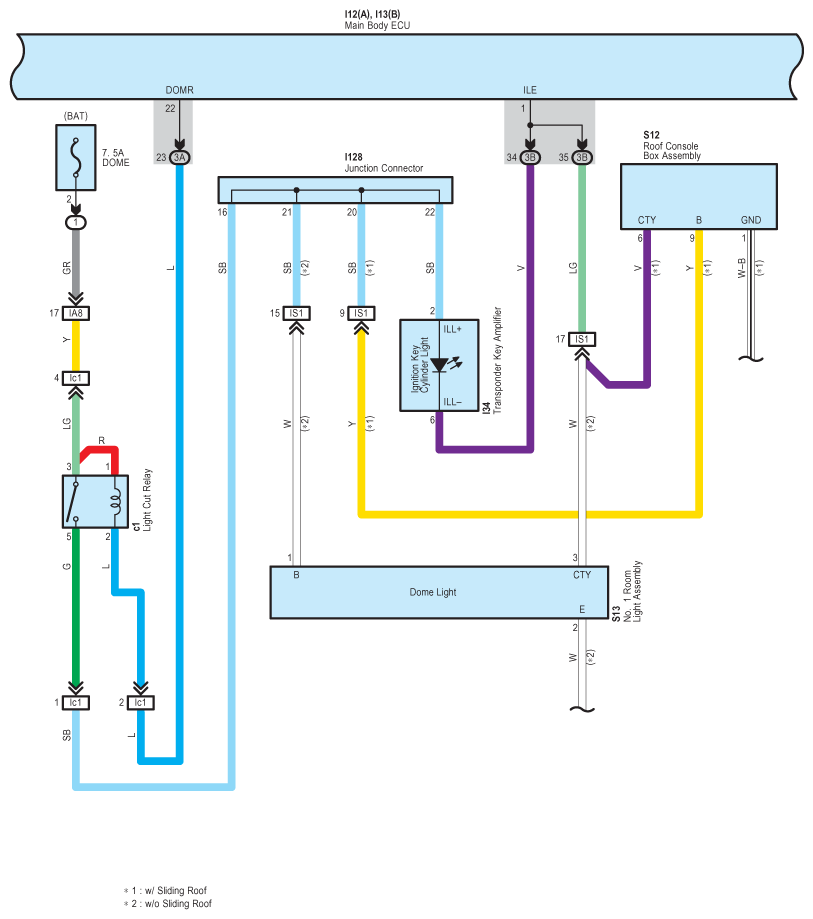

Fig 1: Wireless Door Lock Control (w/o Smart Key System) System Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

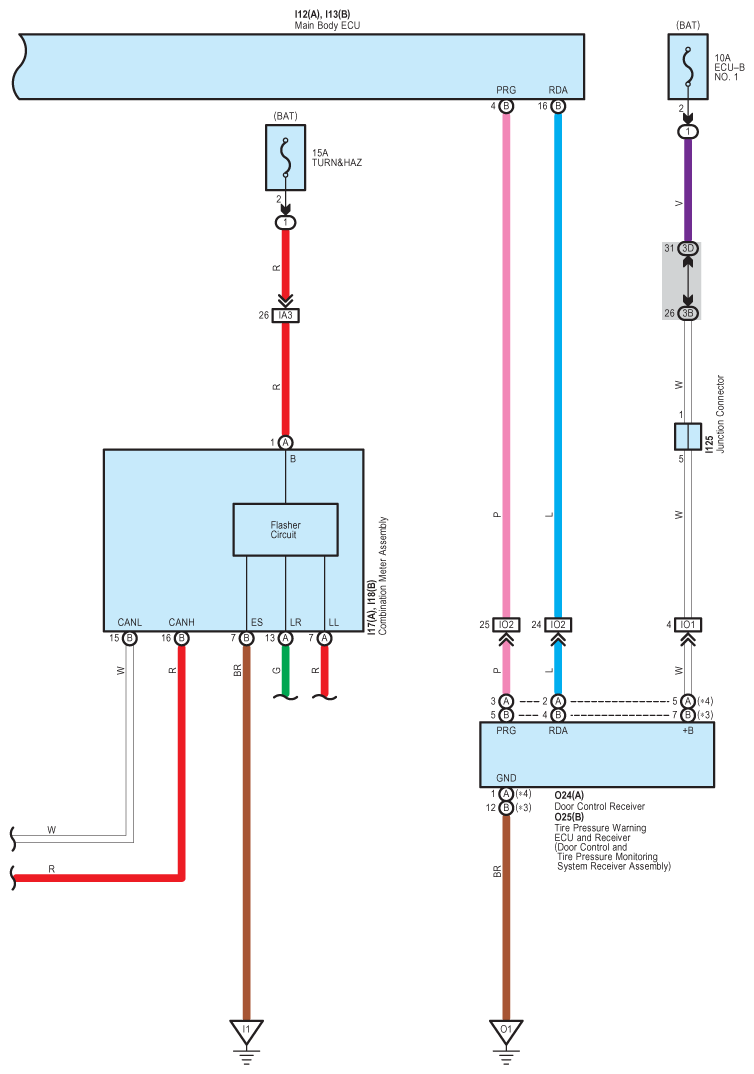

Fig 2: Wireless Door Lock Control (w/o Smart Key System) System Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

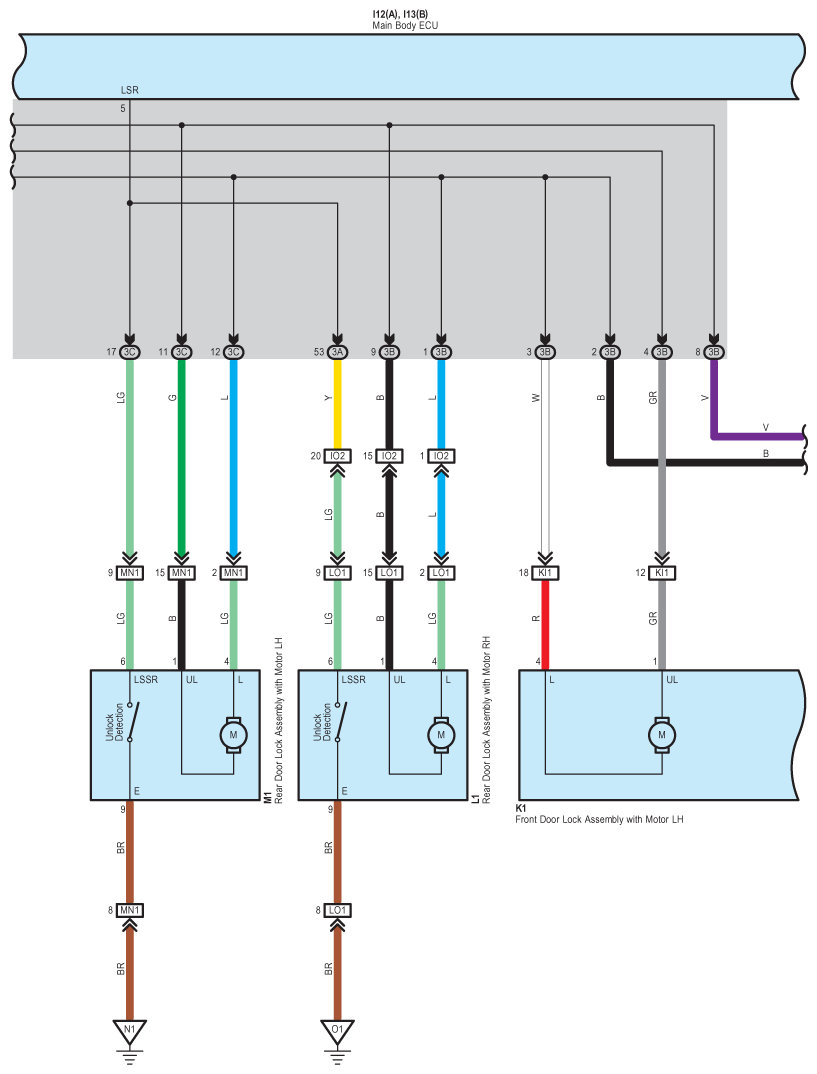

Fig 3: Wireless Door Lock Control (w/o Smart Key System) System Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

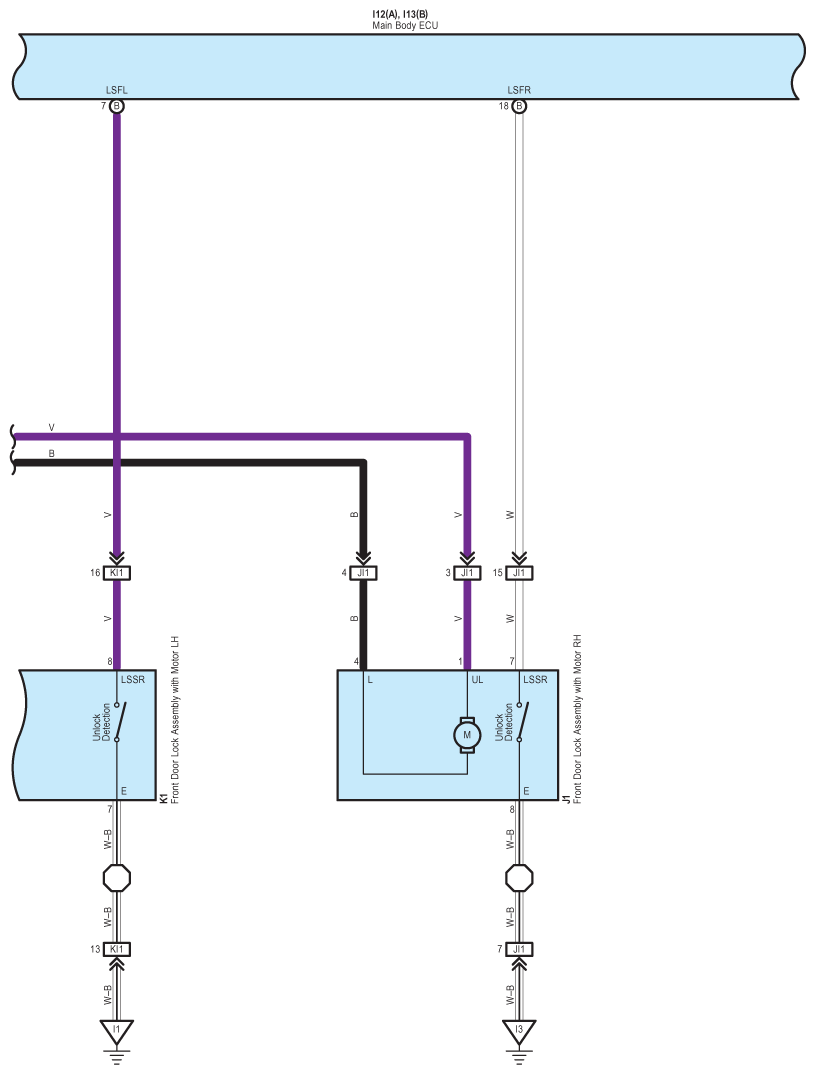

Fig 4: Wireless Door Lock Control (w/o Smart Key System) System Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

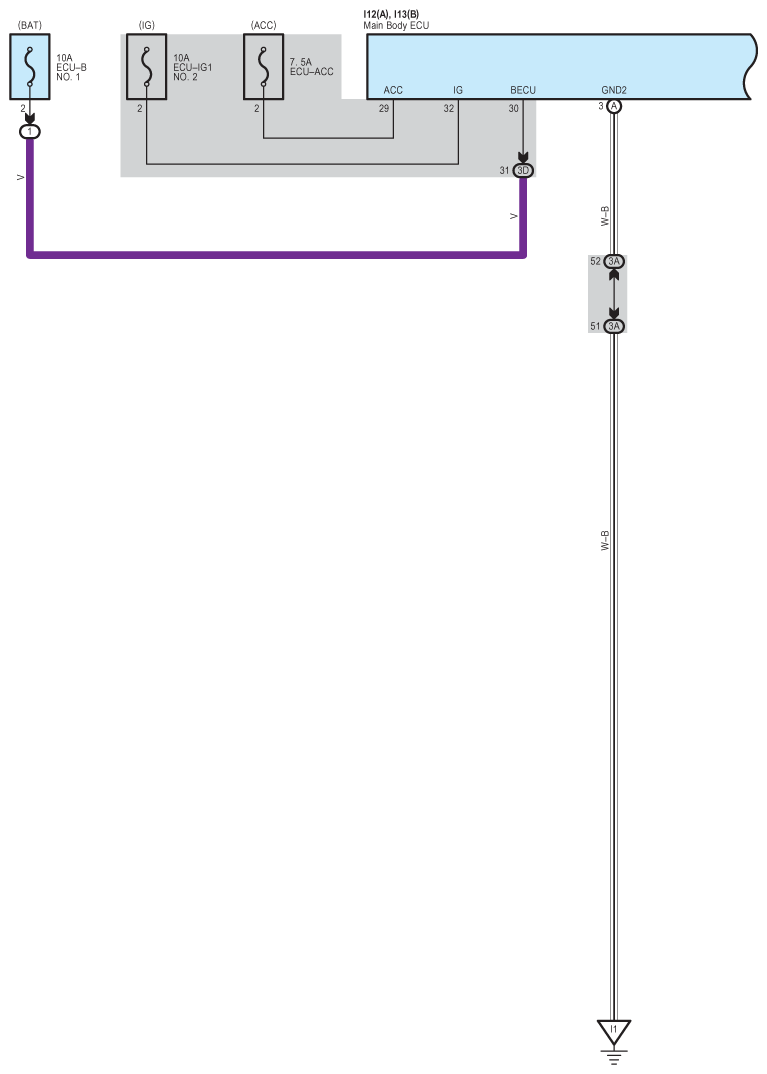

Fig 5: Wireless Door Lock Control (w/o Smart Key System) System Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

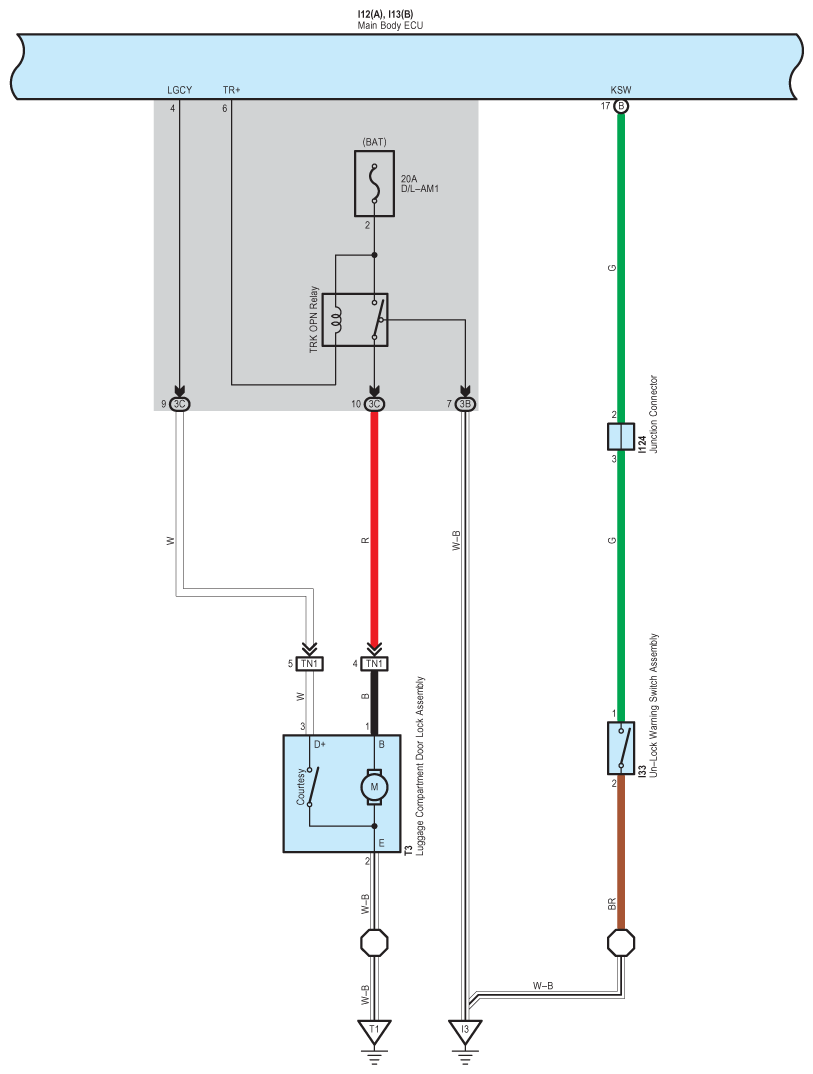

Fig 6: Wireless Door Lock Control (w/o Smart Key System) System Wiring Diagram (6 Of 8)

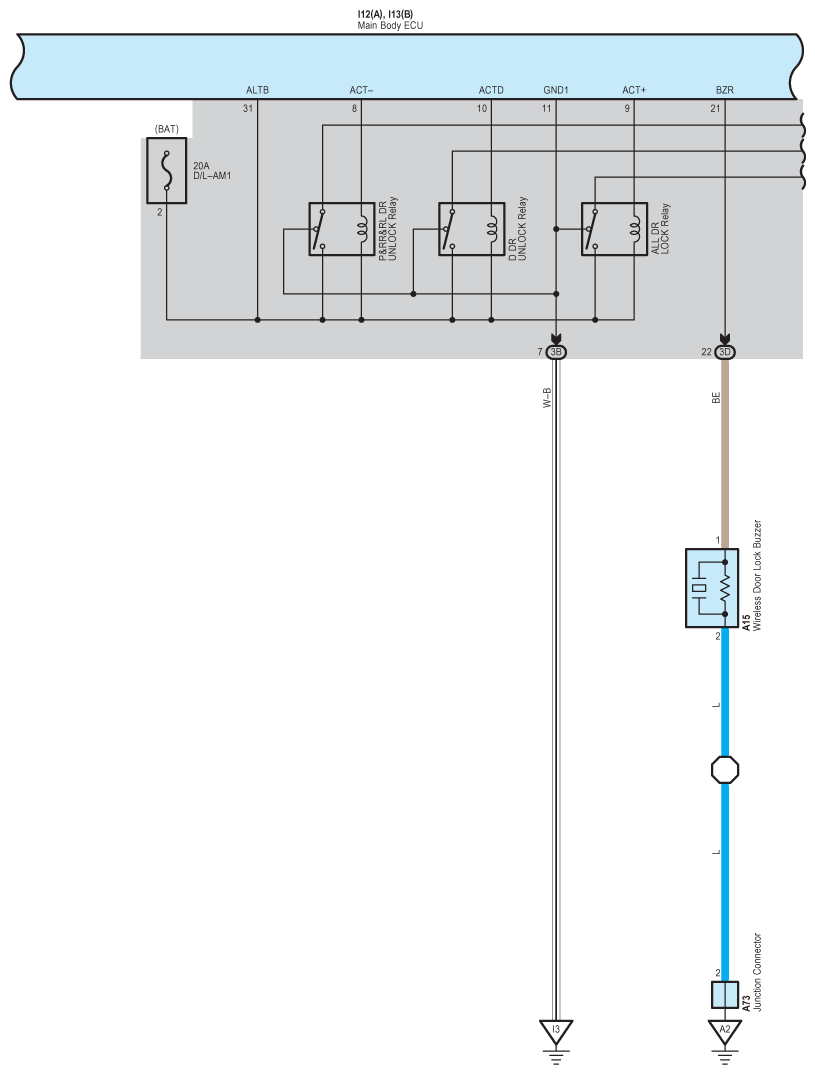

Fig 7: Wireless Door Lock Control (w/o Smart Key System) System Wiring Diagram (7 Of 8)

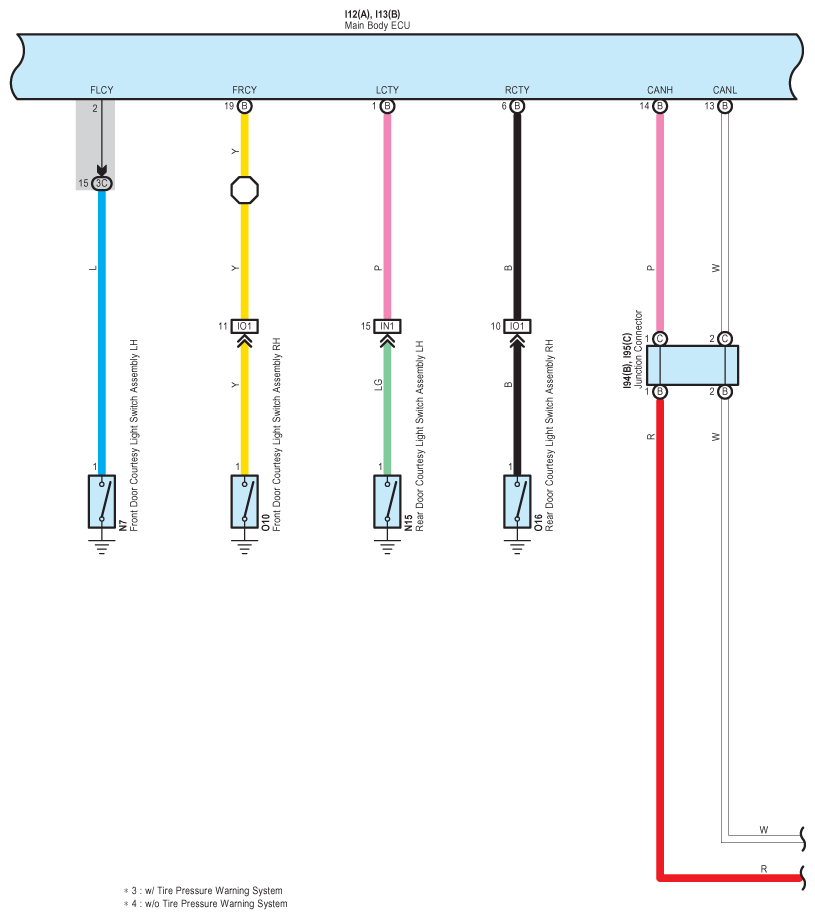

Fig 8: Wireless Door Lock Control (w/o Smart Key System) System Wiring Diagram (8 Of 8)
