Section 19 (Engine Control System (Service Information) (2GR-FE)): ECM: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

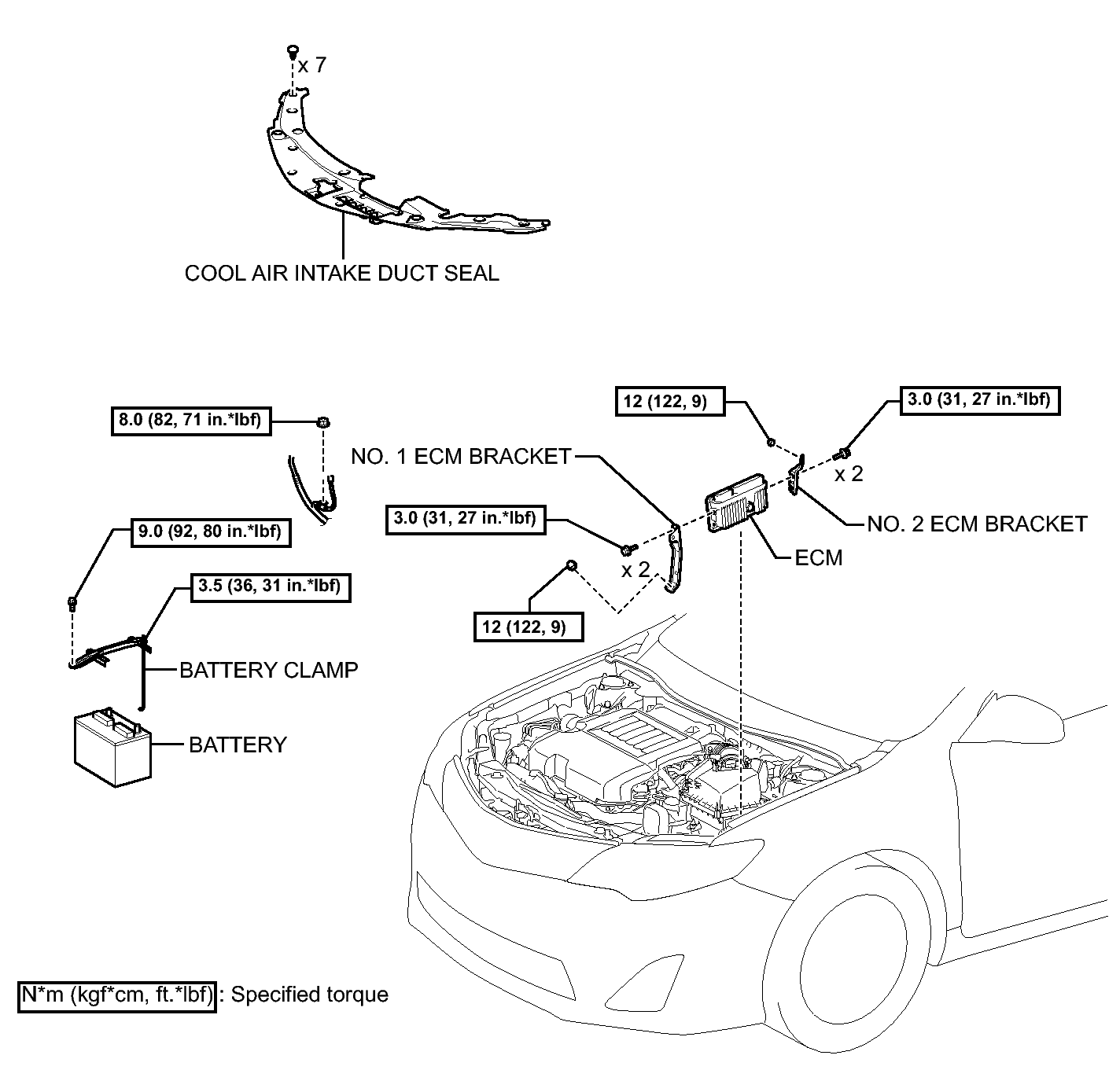

Fig 1: Identifying ECM Replacement Components With Torque Specifications
