System Diagram

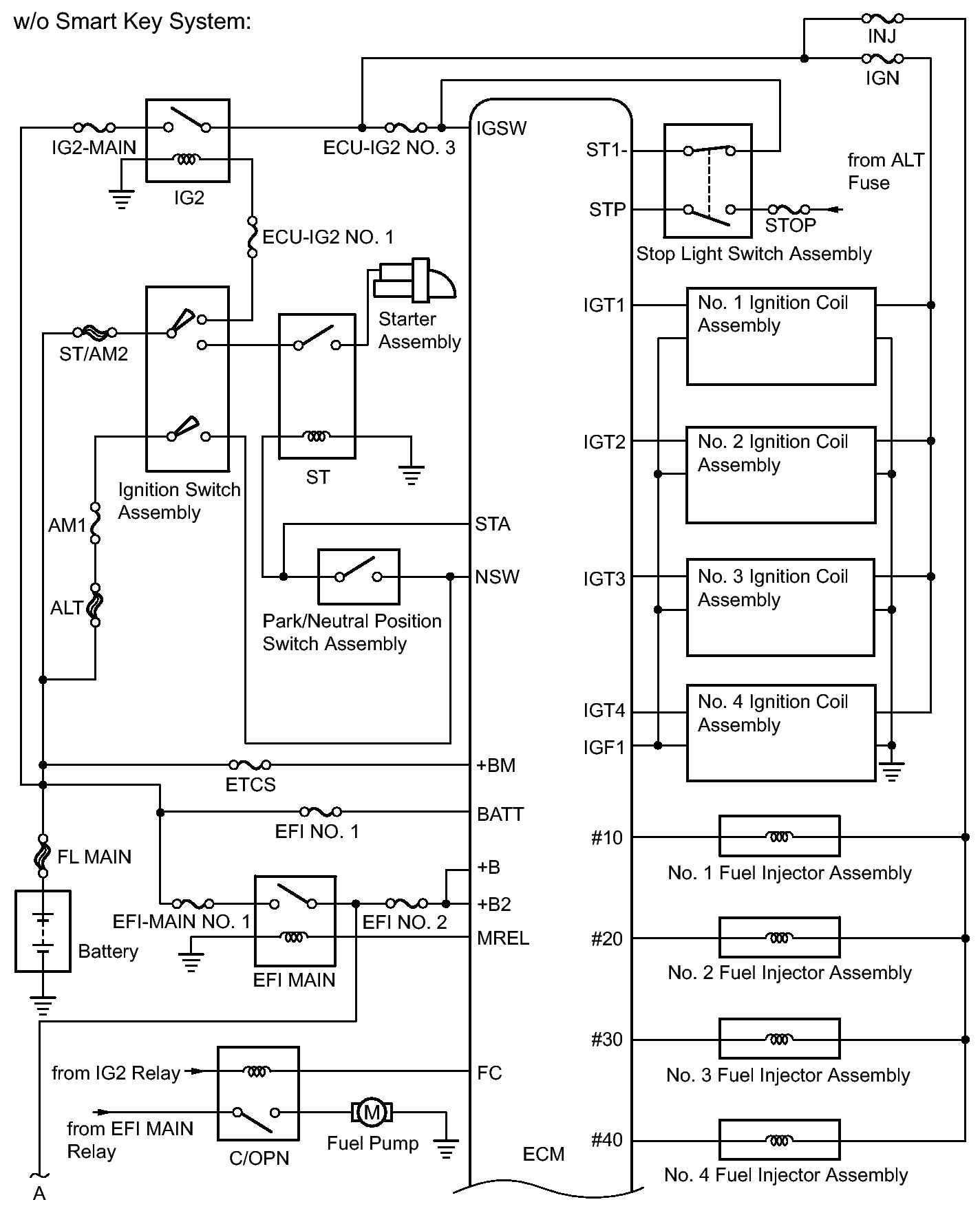

Fig 1: SFI System Diagram (1 Of 4)
GTY314748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

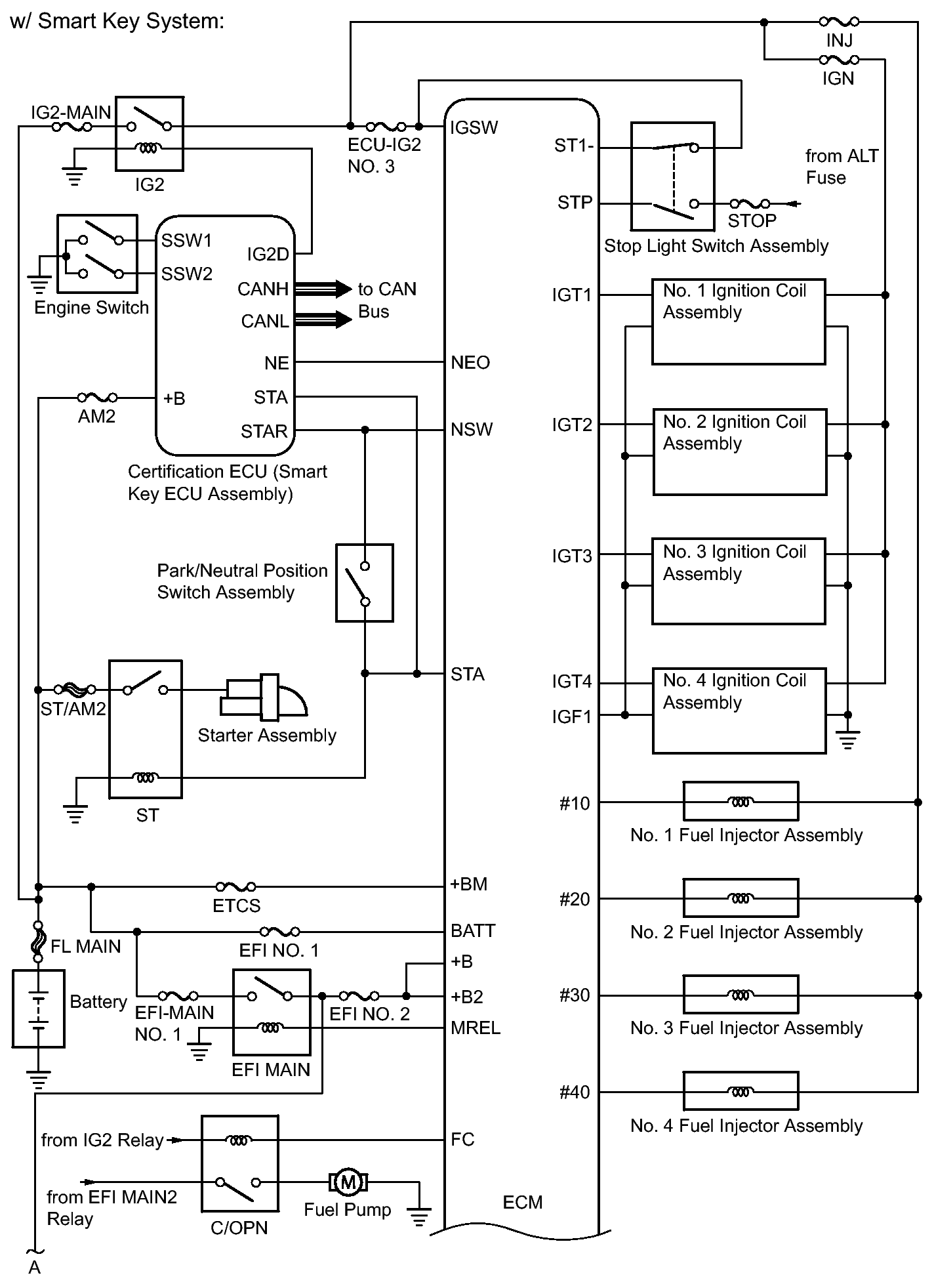

Fig 2: SFI System Diagram (2 Of 4)
GTY318751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

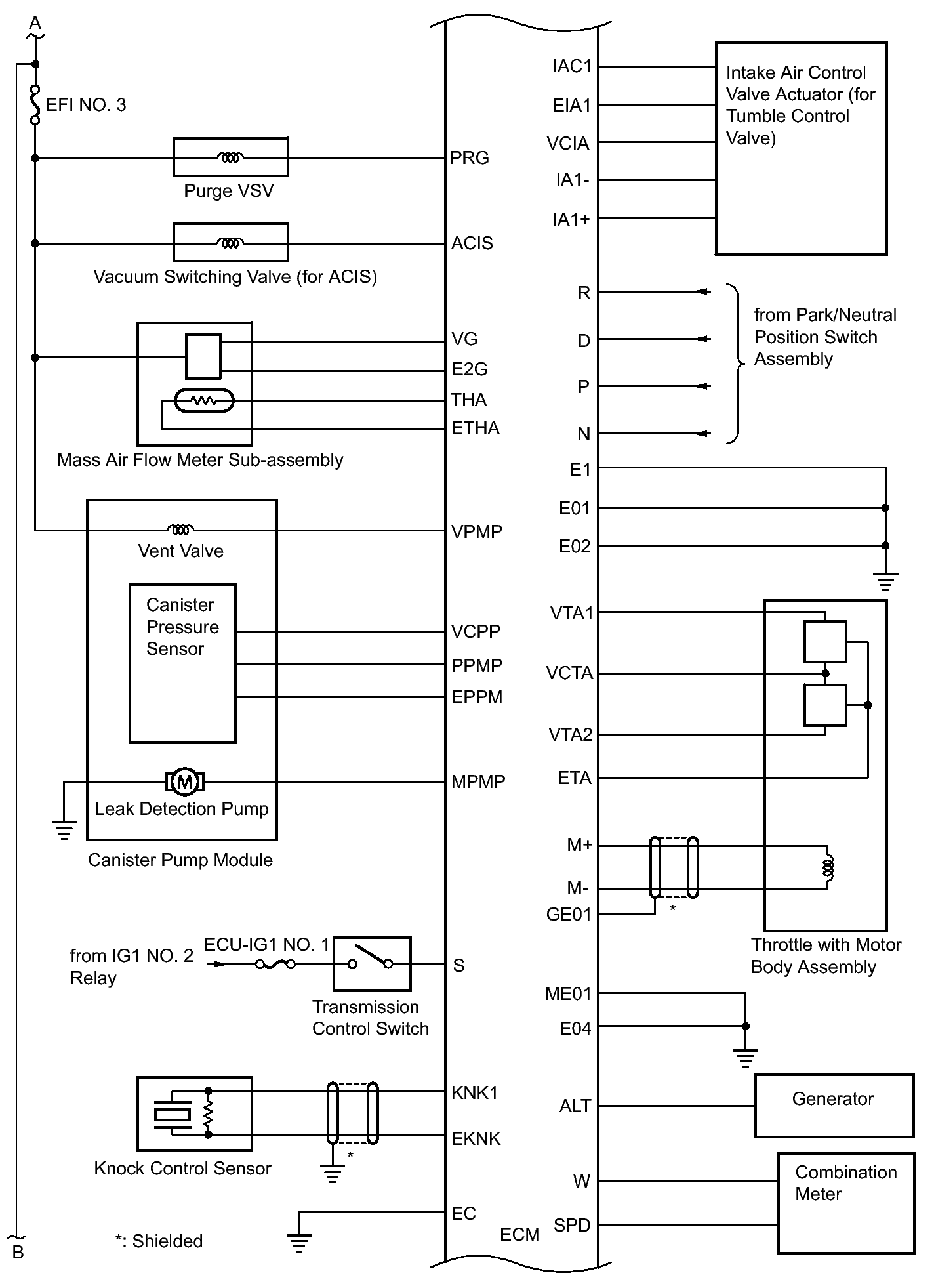

Fig 3: SFI System Diagram (3 Of 4)
GTY321710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

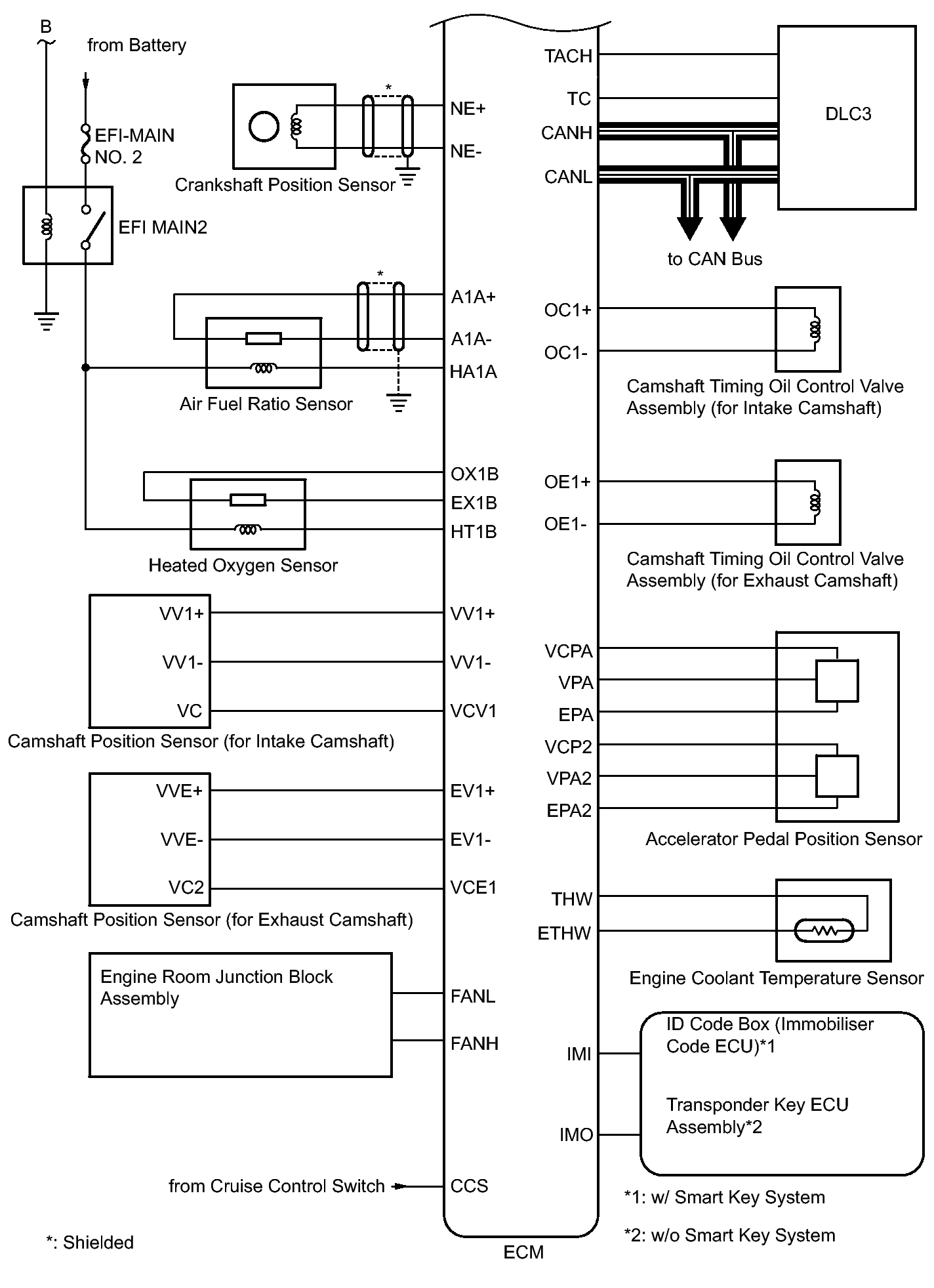

Fig 4: SFI System Diagram (4 Of 4)
GTY316506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
