Engine Immobilizer System (w/o Smart Key System) (Except TMC Made): Notes

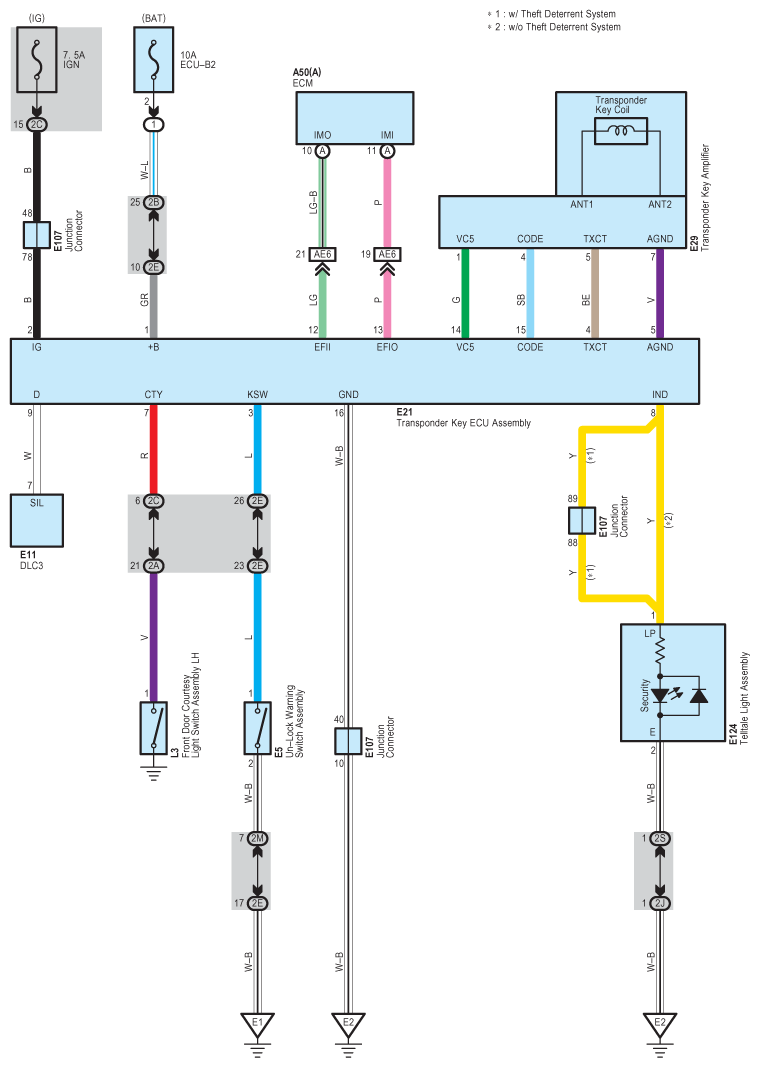

Fig 1: Engine Immobilizer System (W/O Smart Key System) System Wiring Diagram (Except TMC Made)
G08842885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
