Ignition (TMC Made): Notes

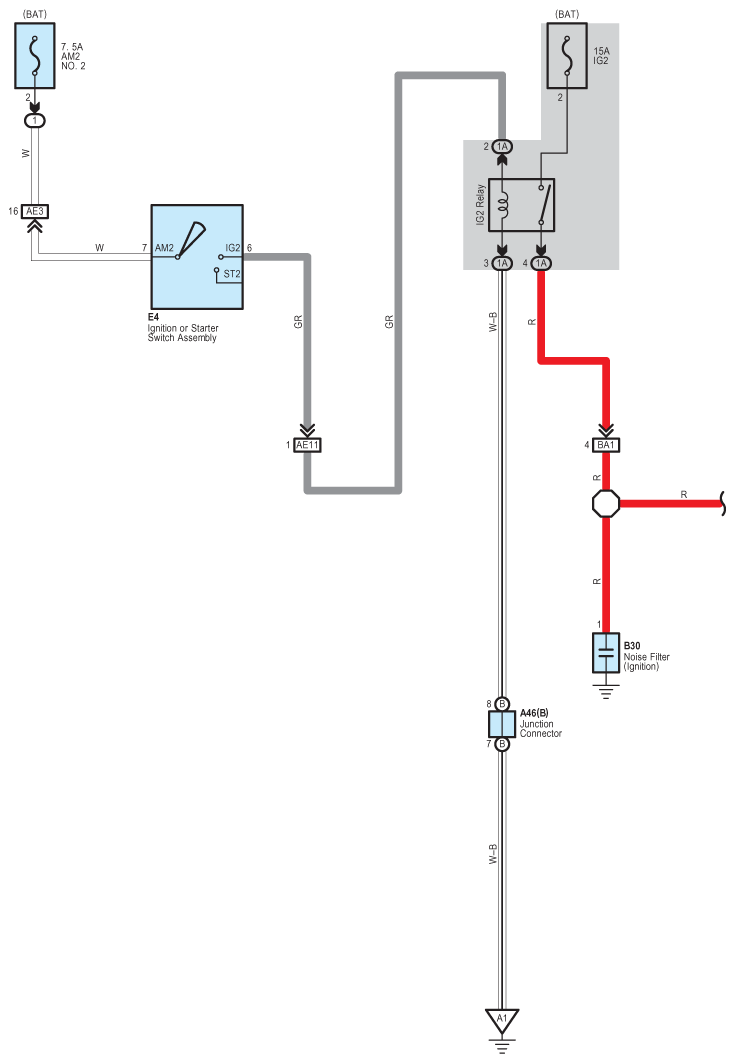

Fig 1: Ignition System Wiring Diagram (TMC Made; 1 Of 2)
G08842724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

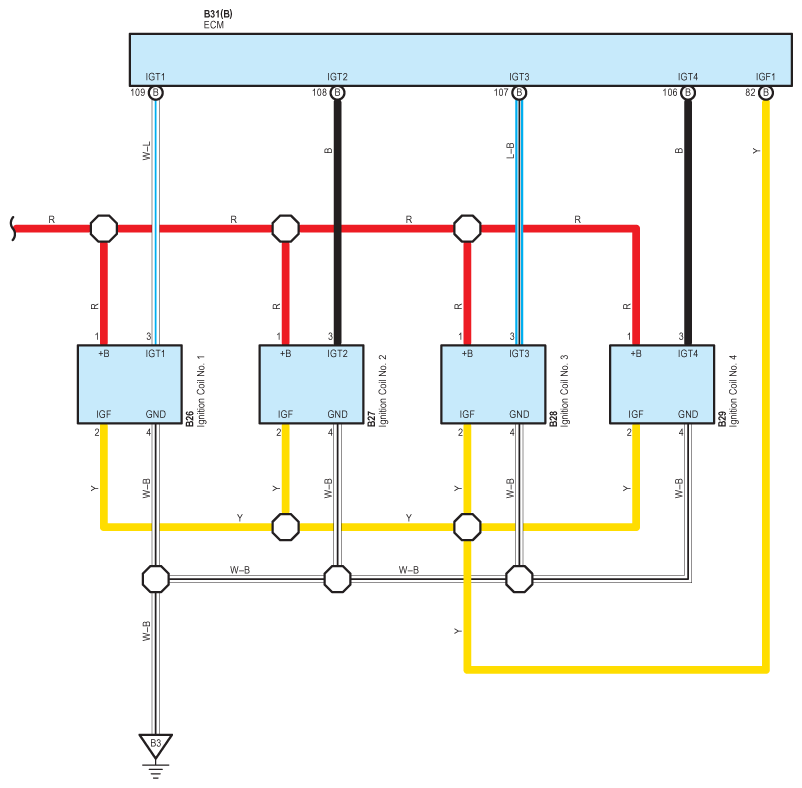

Fig 2: Ignition System Wiring Diagram (TMC Made; 2 Of 2)
G08842725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
