Key Reminder (w/o Smart Key System) (Except TMC Made): Notes

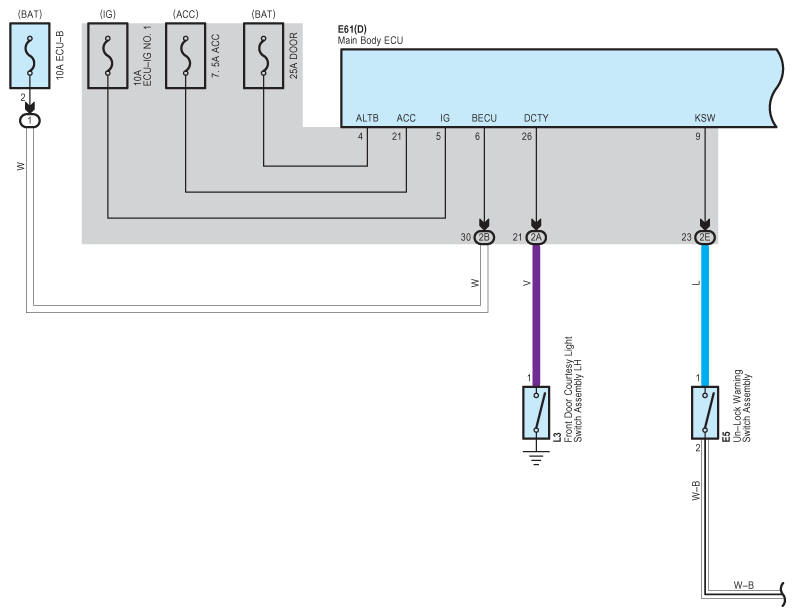

Fig 1: Key Reminder (W/O Smart Key System) System Wiring Diagram (Except TMC Made (1 Of 2)
G08842908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

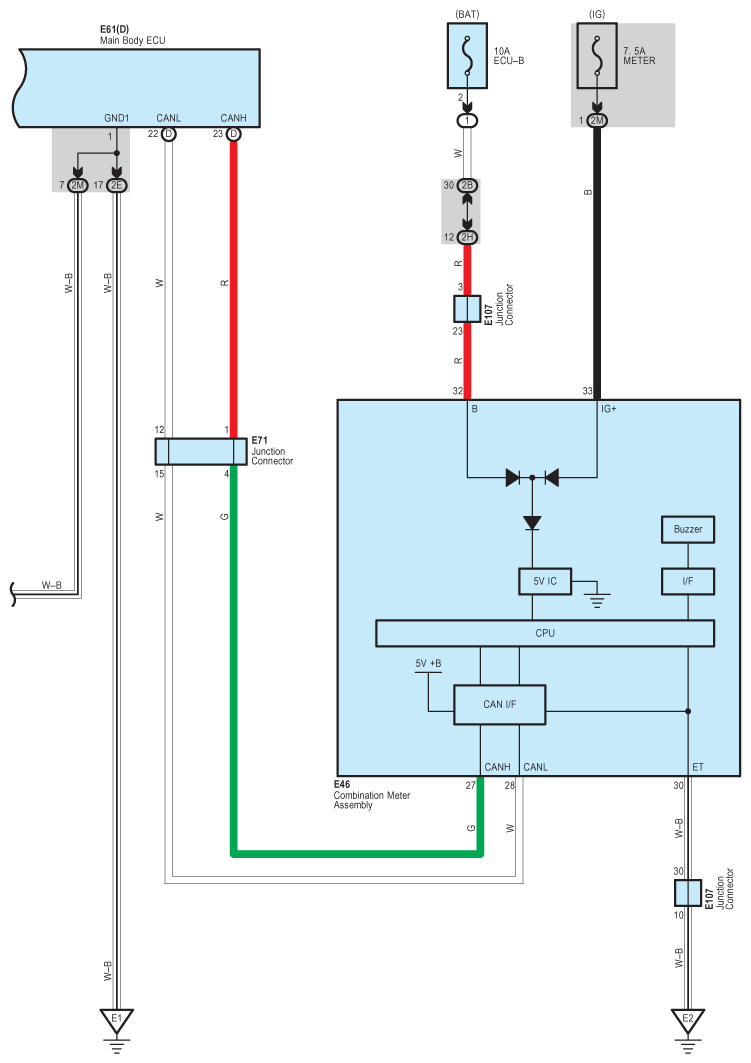

Fig 2: Key Reminder (W/O Smart Key System) System Wiring Diagram (Except TMC Made (2 Of 2)
G08842909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
