Mirror Heater and Rear Window Defogger (TMC Made)
›
Notes
Mirror Heater and Rear Window Defogger (TMC Made): Notes

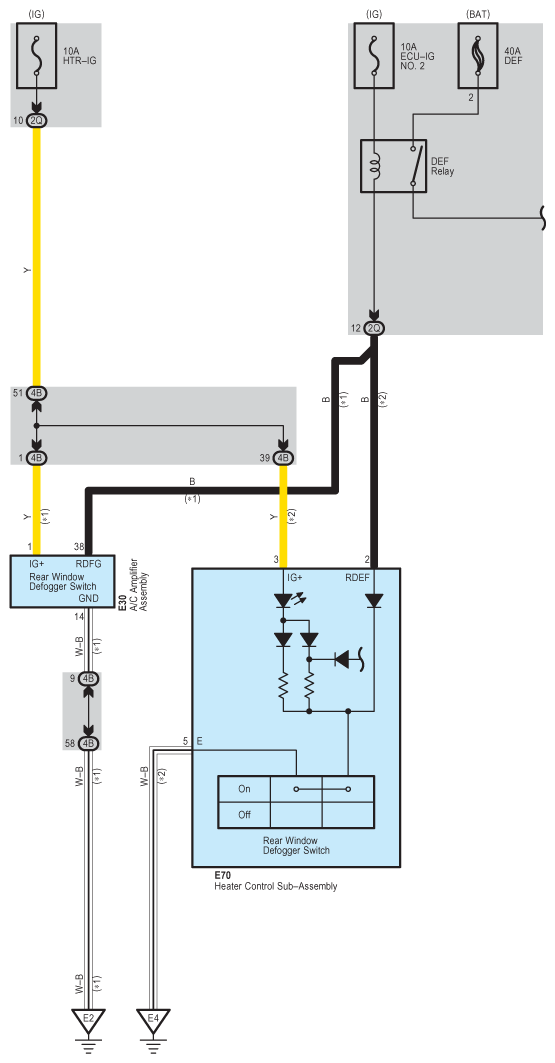

Fig 1: Mirror Heater And Rear Window Defogger System Wiring Diagram (TMC Made; 1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

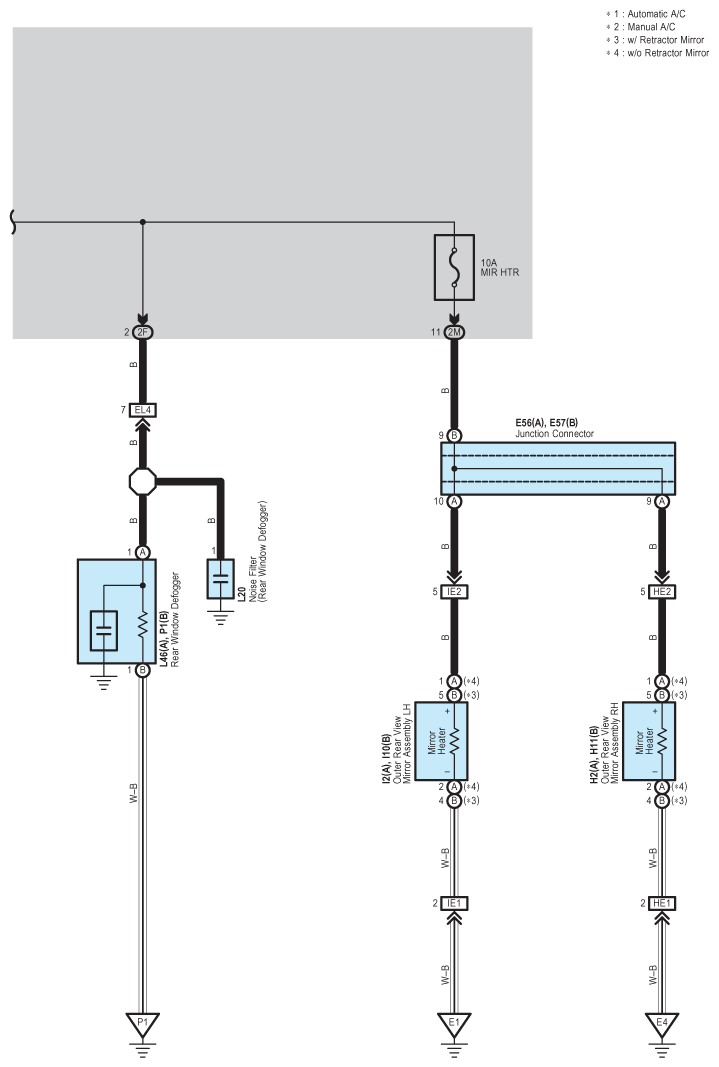

Fig 2: Mirror Heater And Rear Window Defogger System Wiring Diagram (TMC Made; 2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
