Power Source (TMC Made): Notes

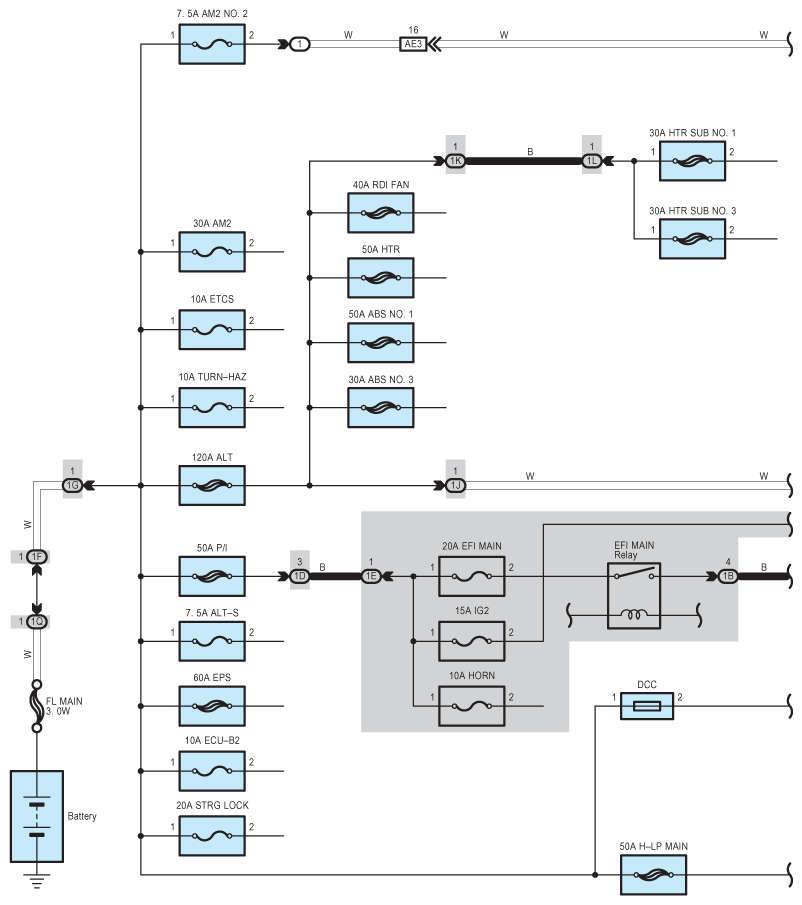

Fig 1: Power Source System Wiring Diagram (TMC Made; 1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

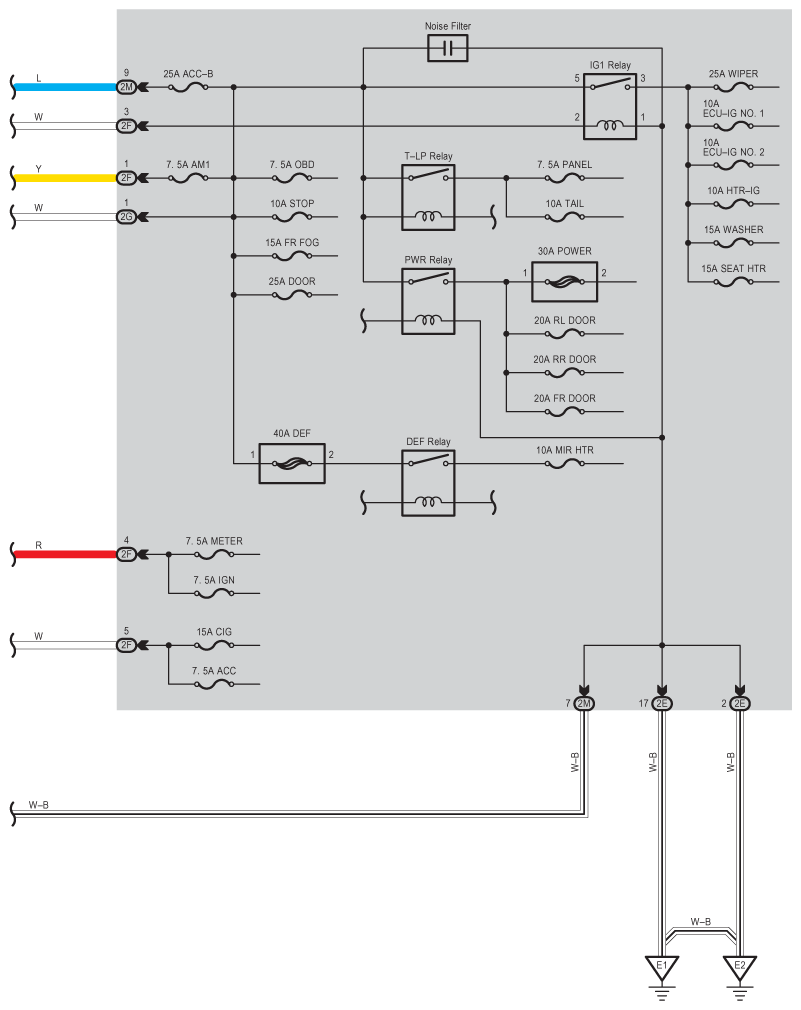

Fig 2: Power Source System Wiring Diagram (TMC Made; 2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

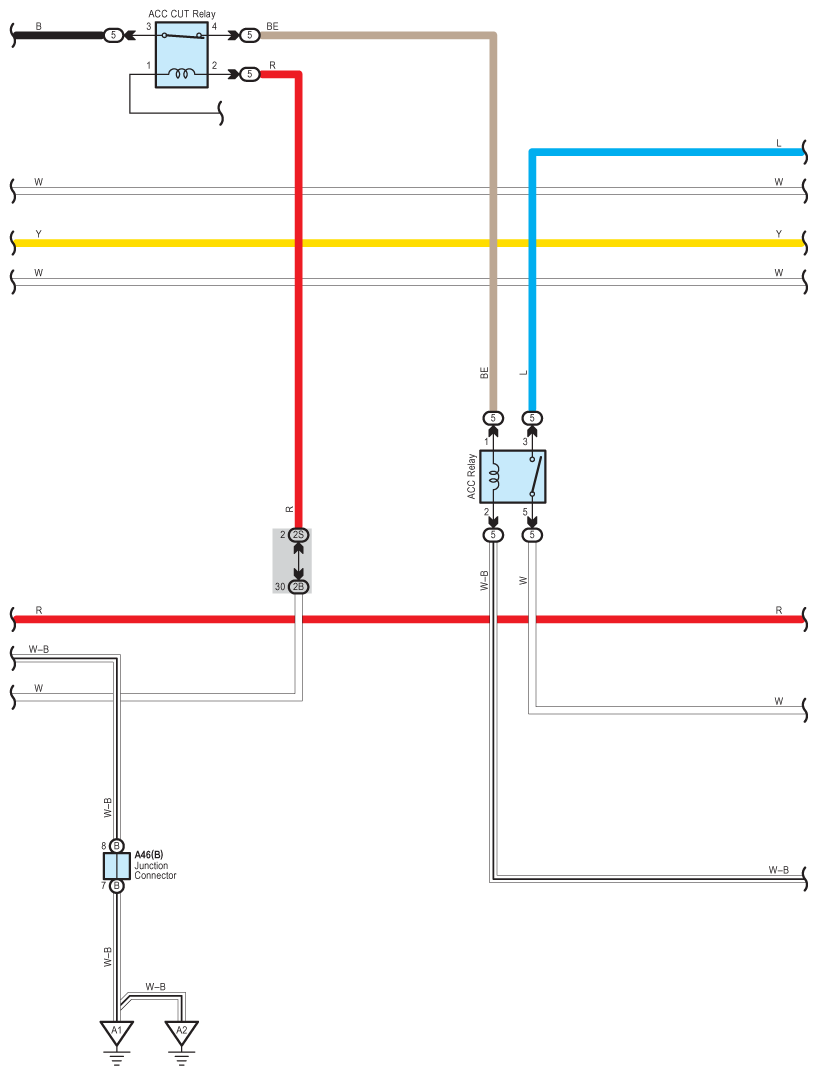

Fig 3: Power Source System Wiring Diagram (TMC Made; 3 Of 4)

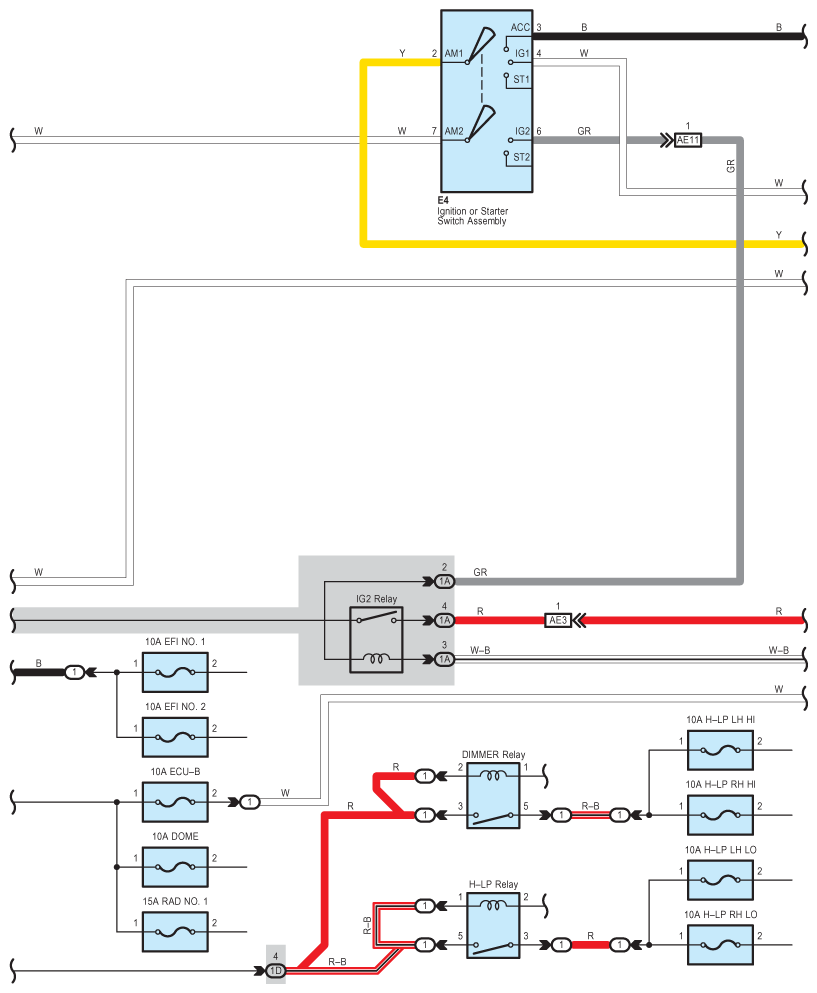

Fig 4: Power Source System Wiring Diagram (TMC Made; 4 Of 4)
