Seat Belt Warning (TMC Made): Notes

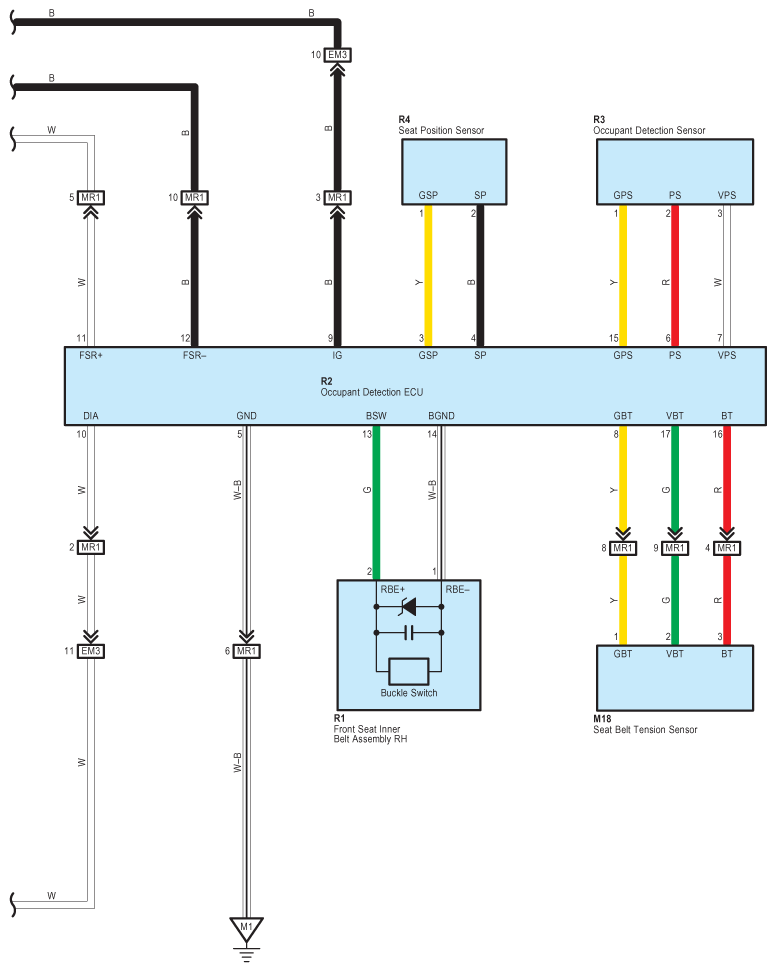

Fig 1: Seat Belt Warning System Wiring Diagram (TMC Made; 1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

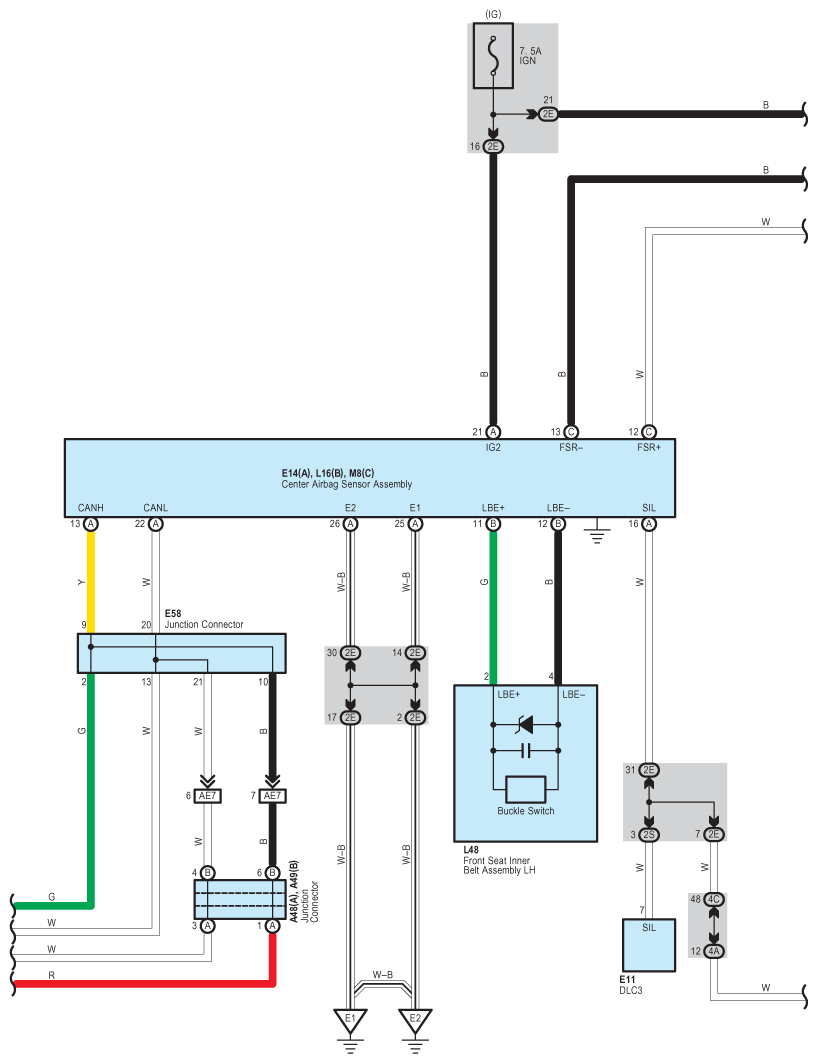

Fig 2: Seat Belt Warning System Wiring Diagram (TMC Made; 2 Of 3)

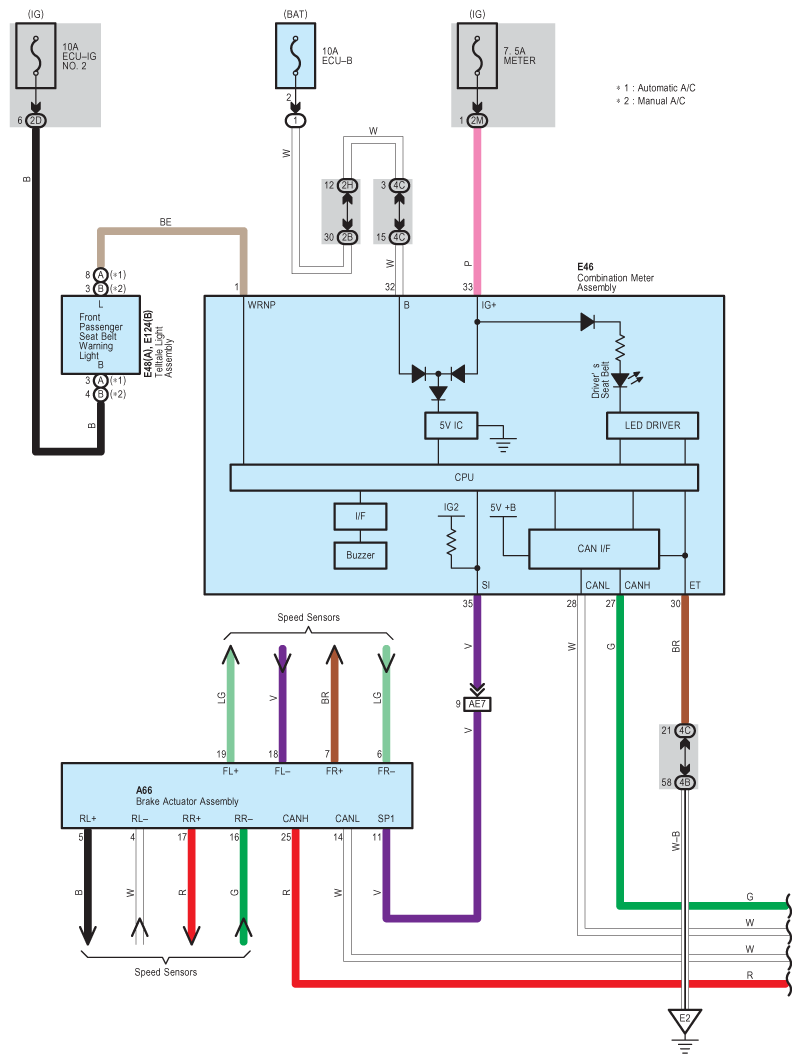

Fig 3: Seat Belt Warning System Wiring Diagram (TMC Made; 3 Of 3)
