Starting (TMC Made): Notes

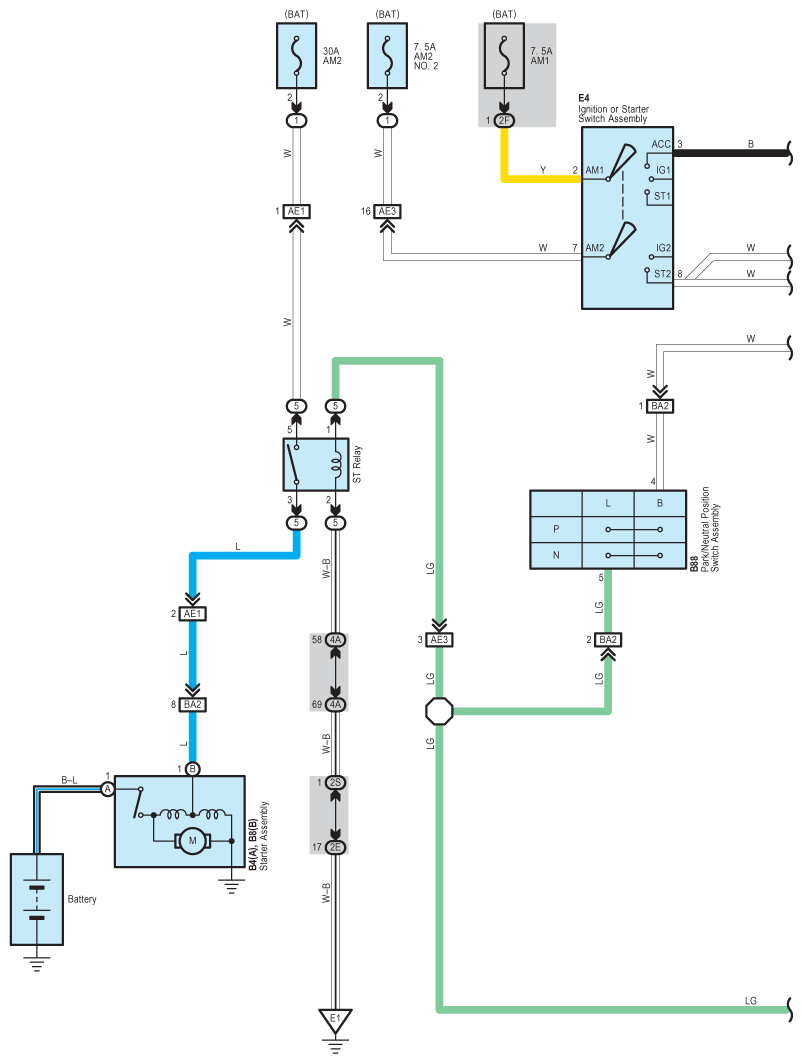

Fig 1: Starting System Wiring Diagram (TMC Made; 1 Of 2)
G08842720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

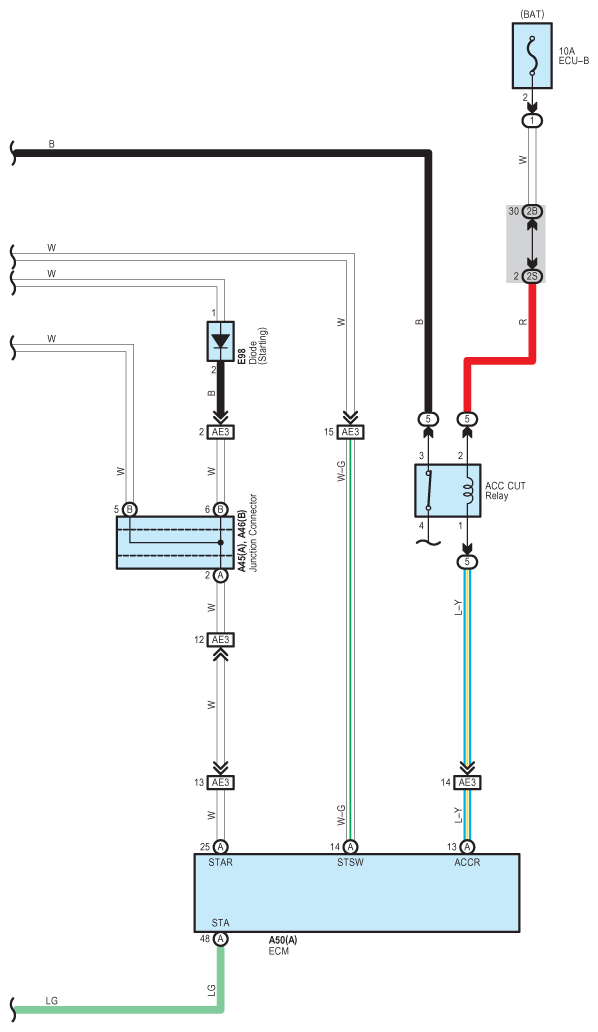

Fig 2: Starting System Wiring Diagram (TMC Made; 2 Of 2)
G08842721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
