Starting (w/o Smart Key System) (Except TMC Made): Notes

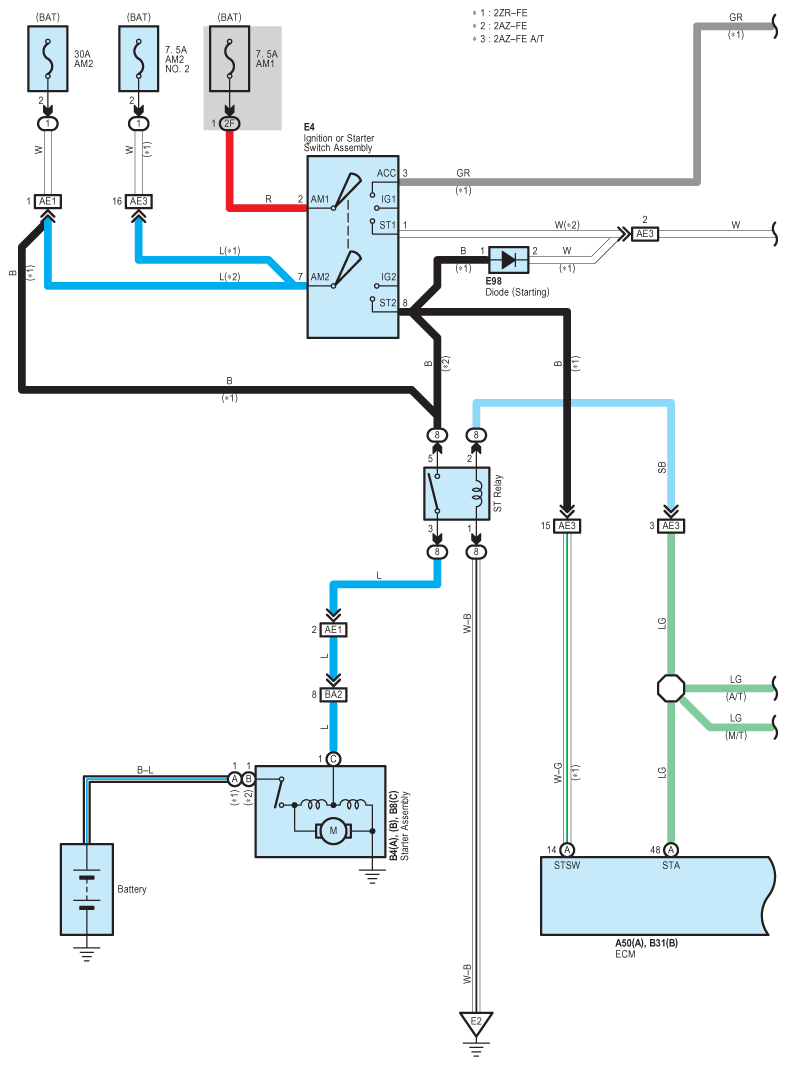

Fig 1: Starting (W/O Smart Key System) System Wiring Diagram (Except TMC Made; 1 Of 2)
G08842858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

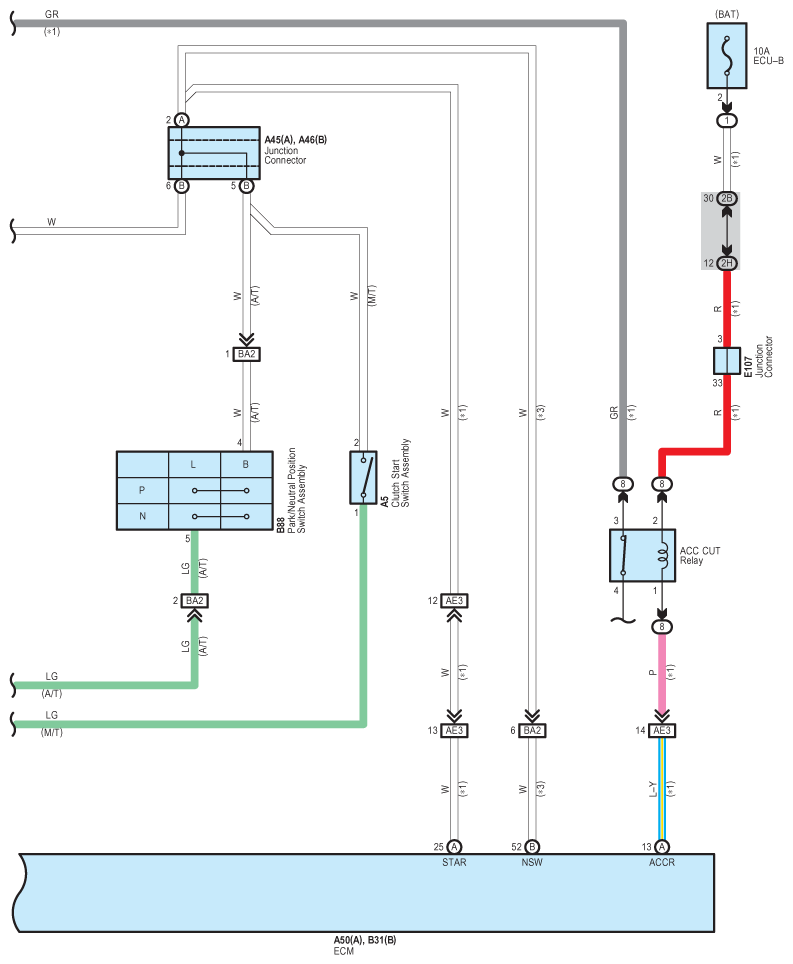

Fig 2: Starting (W/O Smart Key System) System Wiring Diagram (Except TMC Made; 2 Of 2)
G08842859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
