Stop Light (TMC Made): Notes

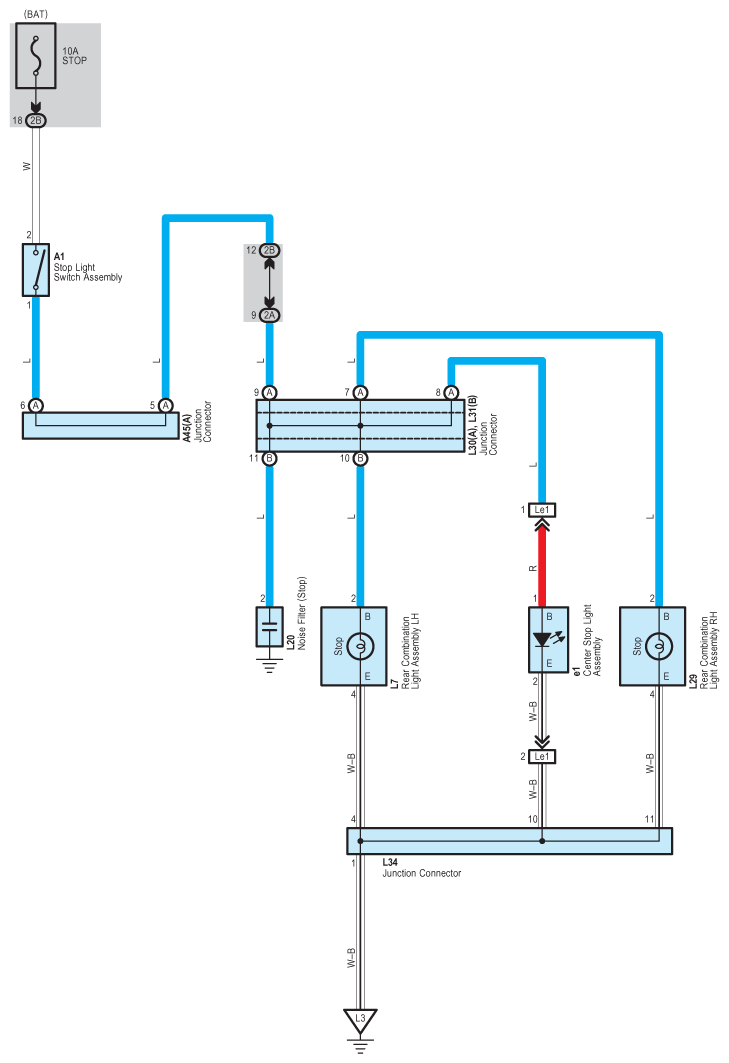

Fig 1: Stop Light System Wiring Diagram (TMC Made)
G08842748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
