Turn Signal and Hazard Warning Light (TMC Made): Notes

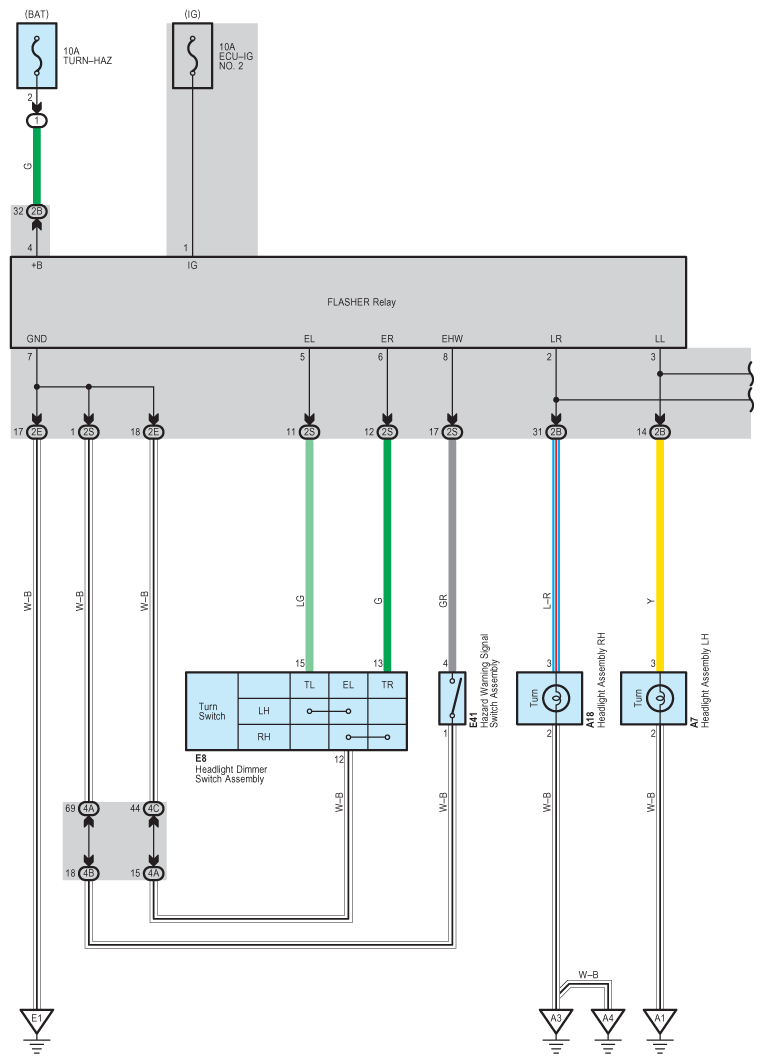

Fig 1: Turn Signal And Hazard Warning Light System Wiring Diagram (TMC Made; 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

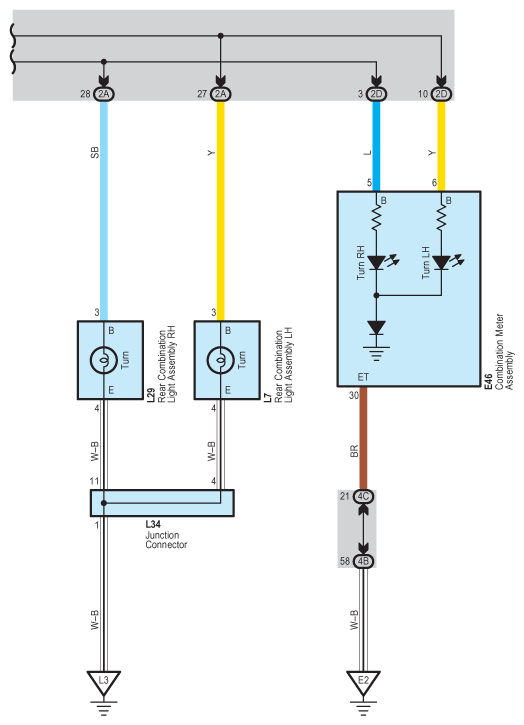

Fig 2: Turn Signal And Hazard Warning Light System Wiring Diagram (TMC Made; 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
