Parts Location: Illustration

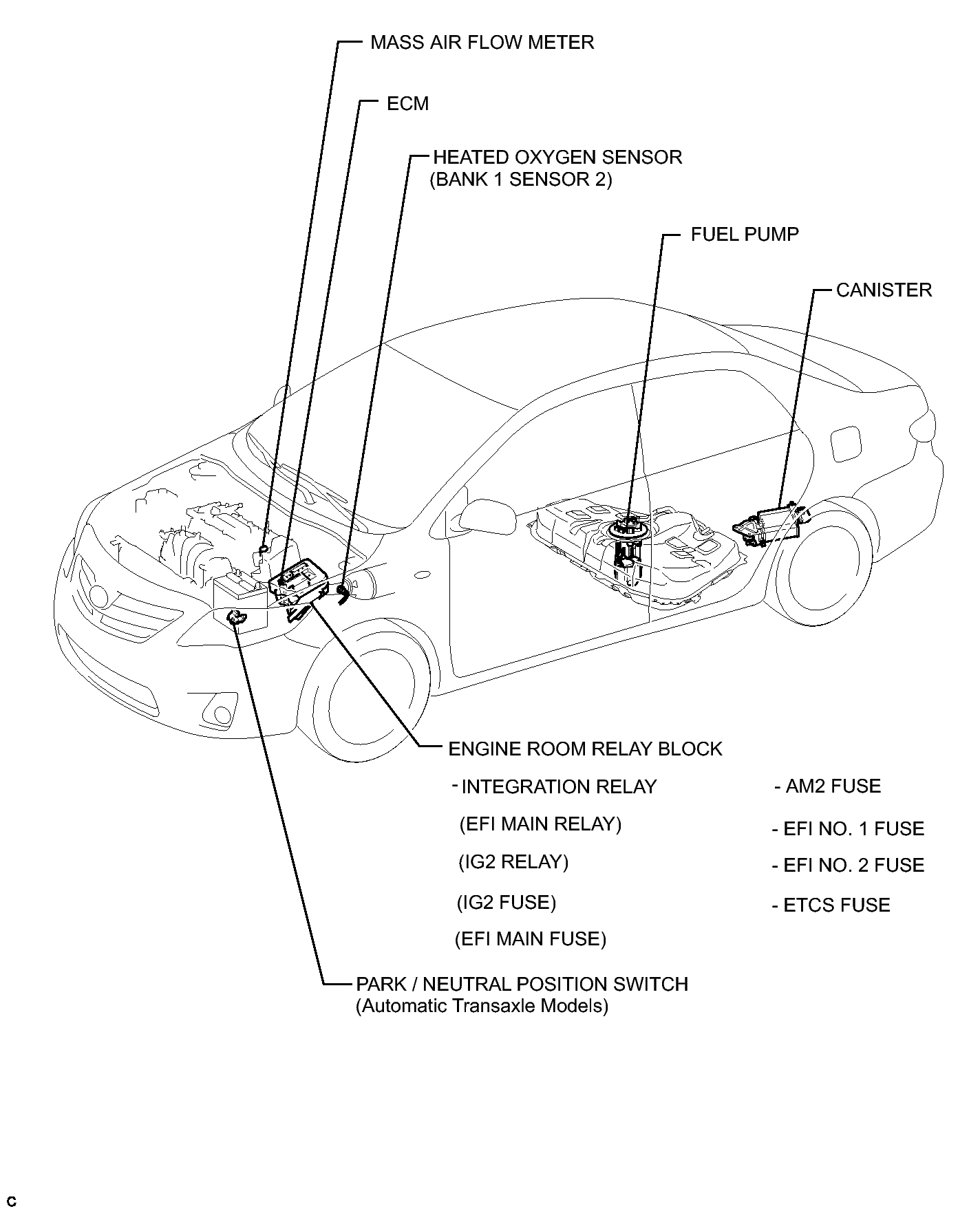

Fig 1: Identifying SFI System Components Location (1 Of 4)
GTY293357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

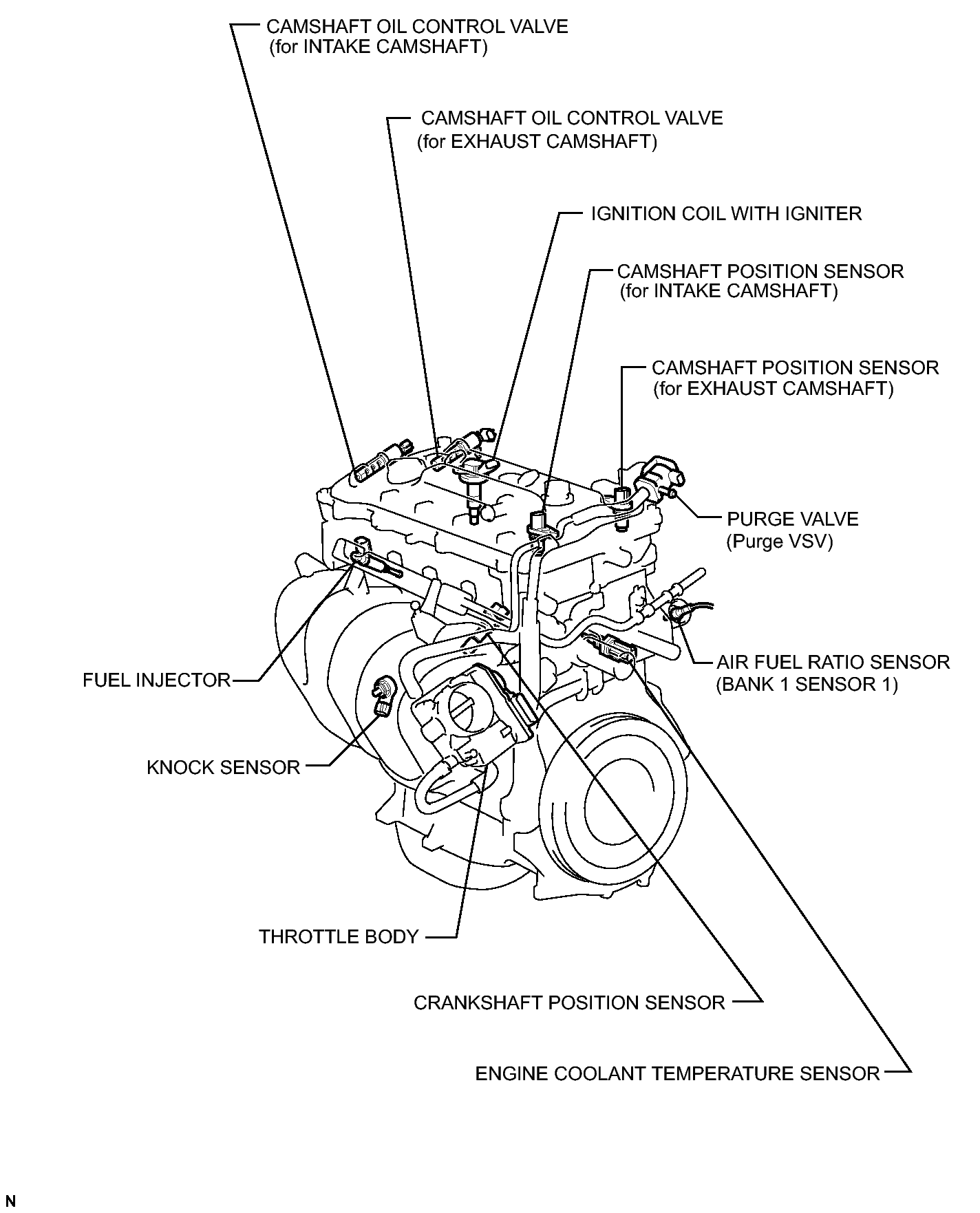

Fig 1: Identifying SFI System Components Location (2 Of 4)
GTY193043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

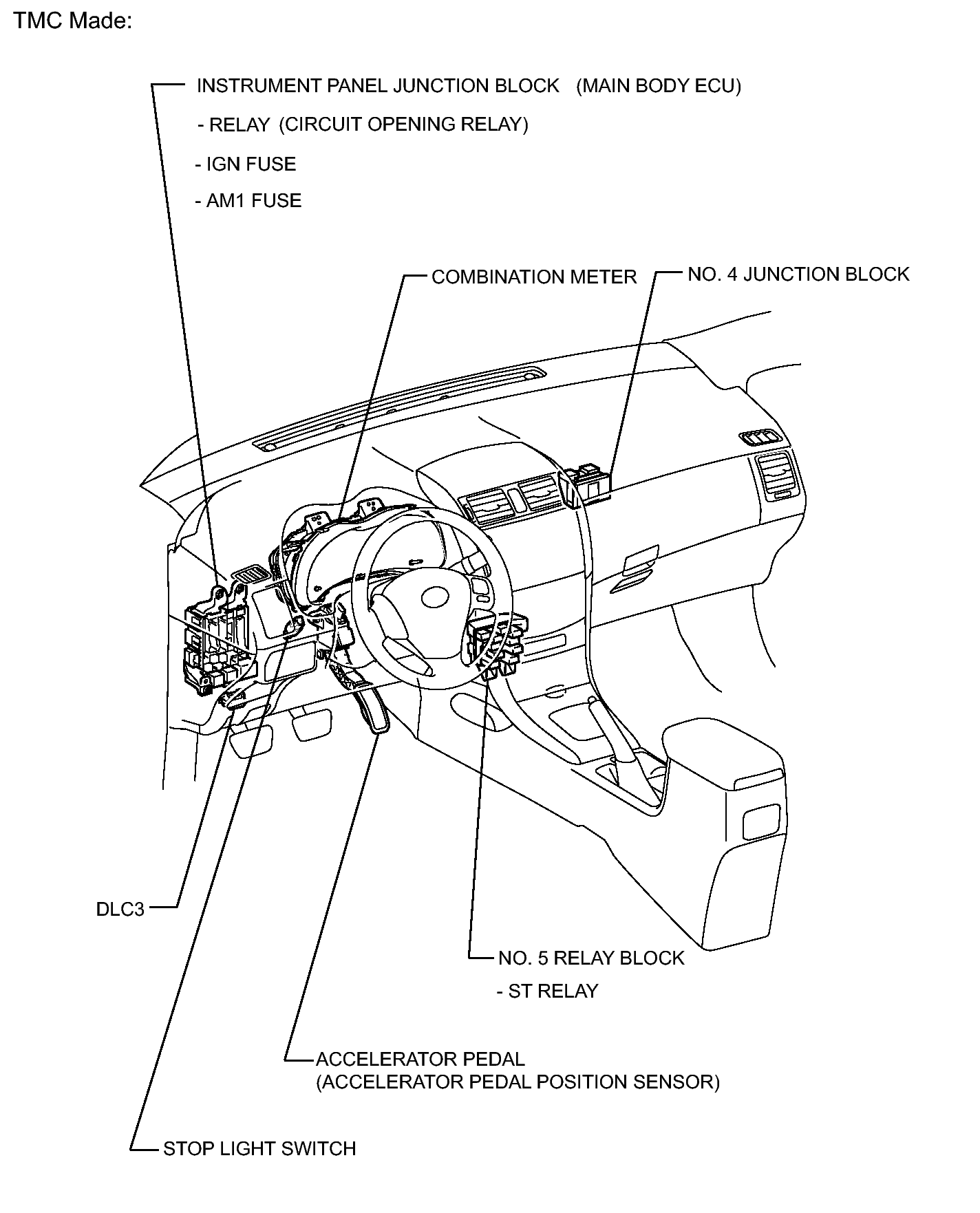

Fig 1: Identifying SFI System Components Location (3 Of 4)
GTY293774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

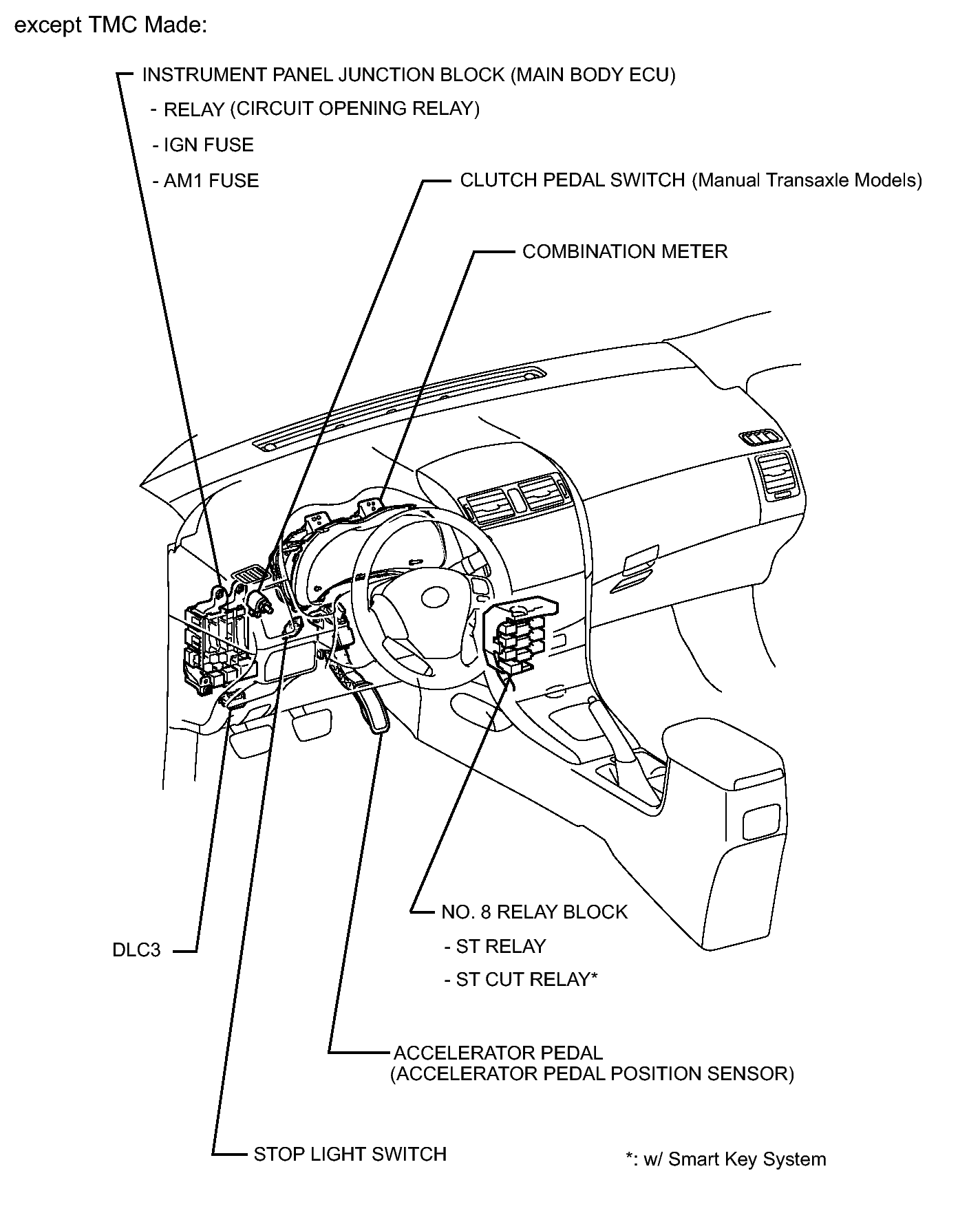

Fig 1: Identifying SFI System Components Location (4 Of 4)
GTY290960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
