System Diagram

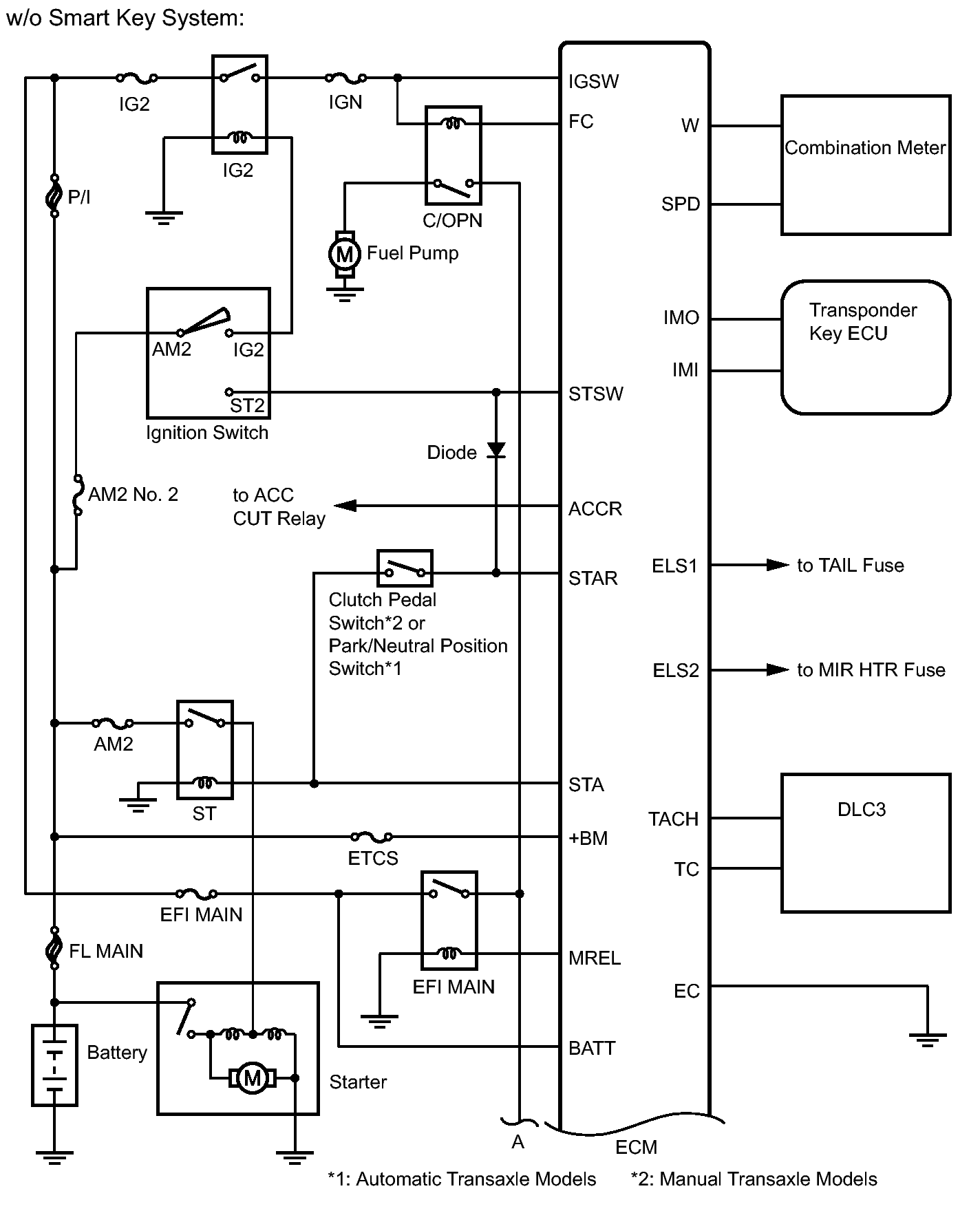

Fig 1: Identifying SFI System - System Diagram (1 Of 5)
GTY294024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

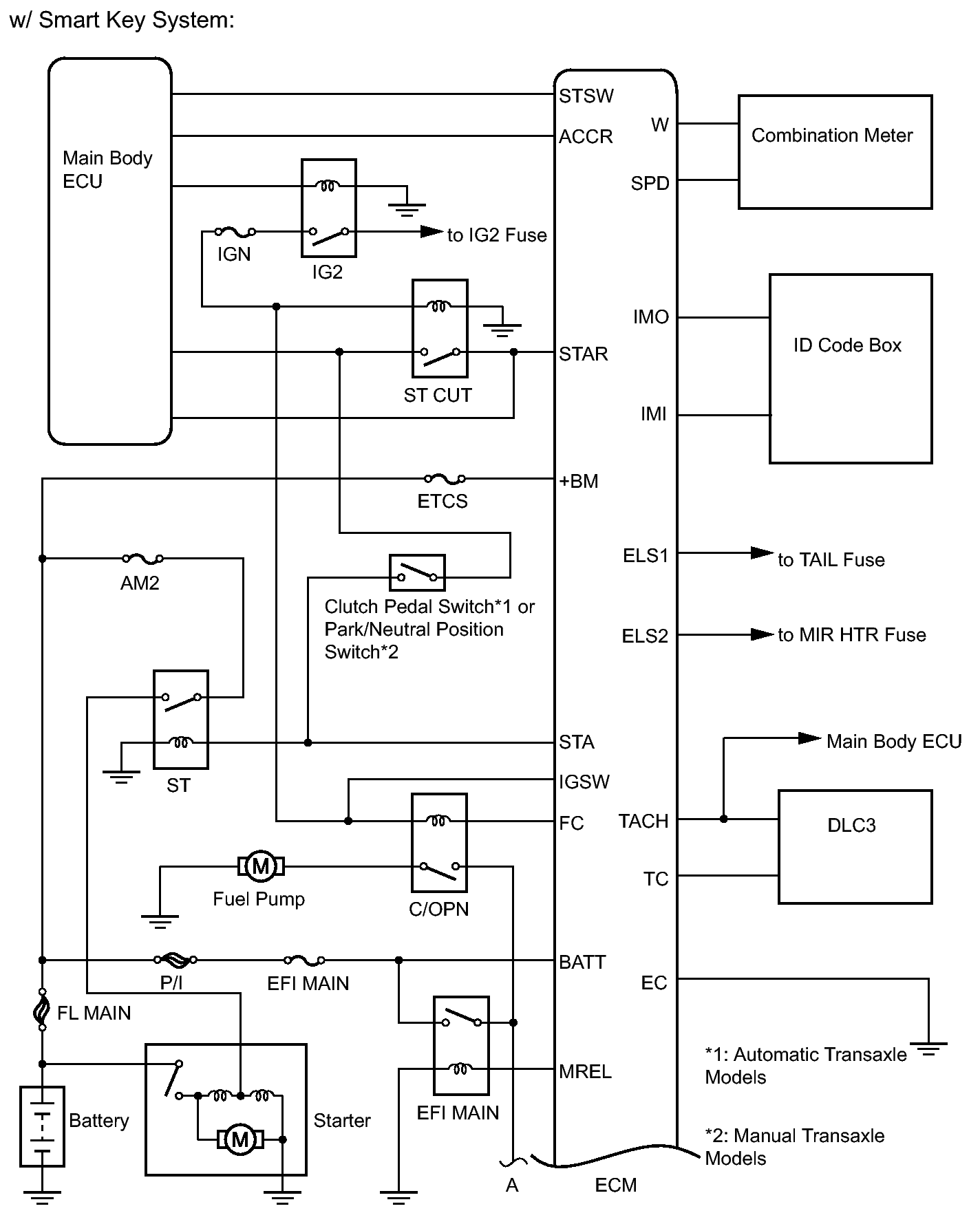

Fig 2: Identifying SFI System - System Diagram (2 Of 5)
GTY315160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying SFI System - System Diagram (3 Of 5)
GTY293399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

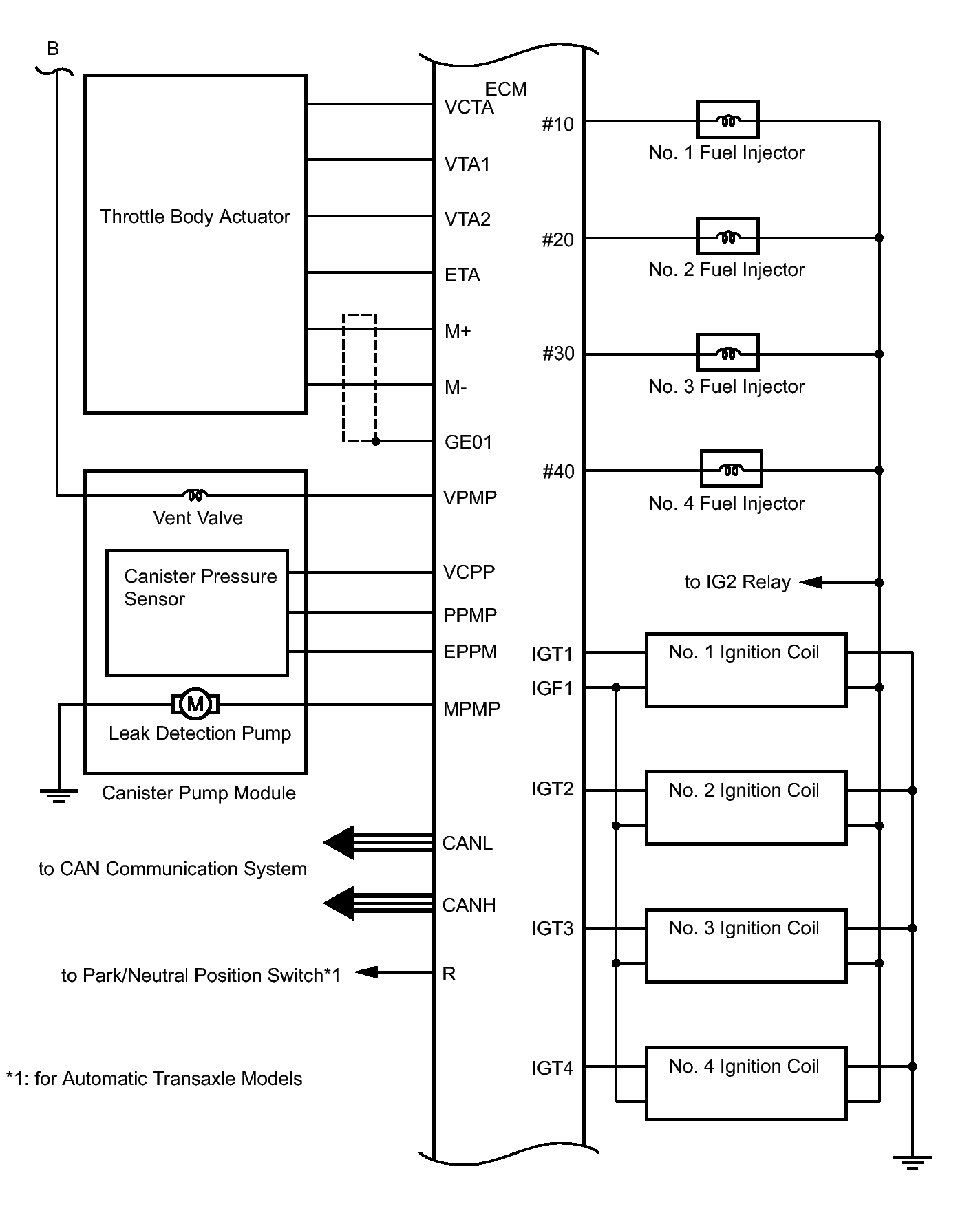

Fig 4: Identifying SFI System - System Diagram (4 Of 5)
GTY180965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

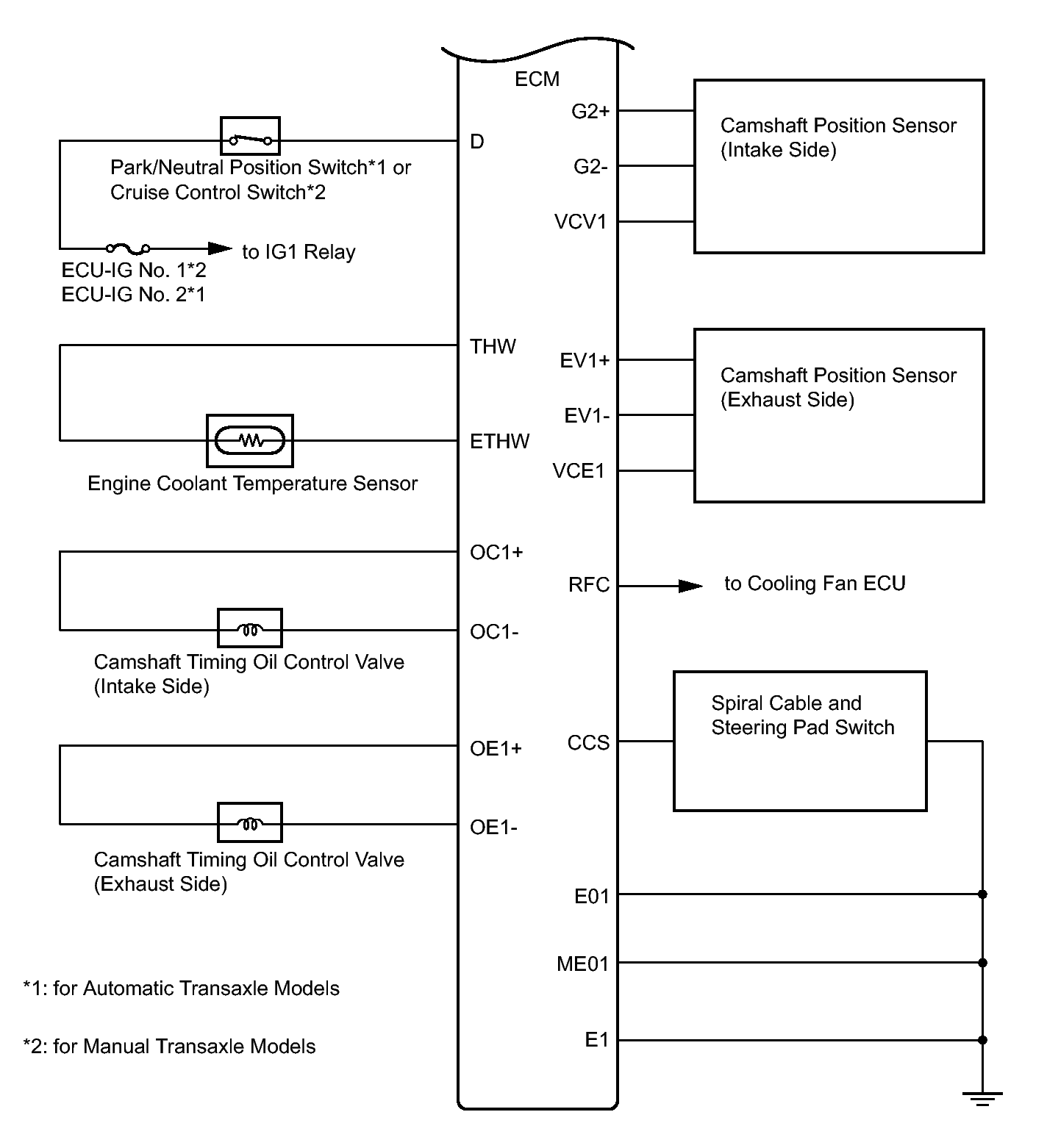

Fig 5: Identifying SFI System - System Diagram (5 Of 5)
GTY290588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
