System Diagram

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

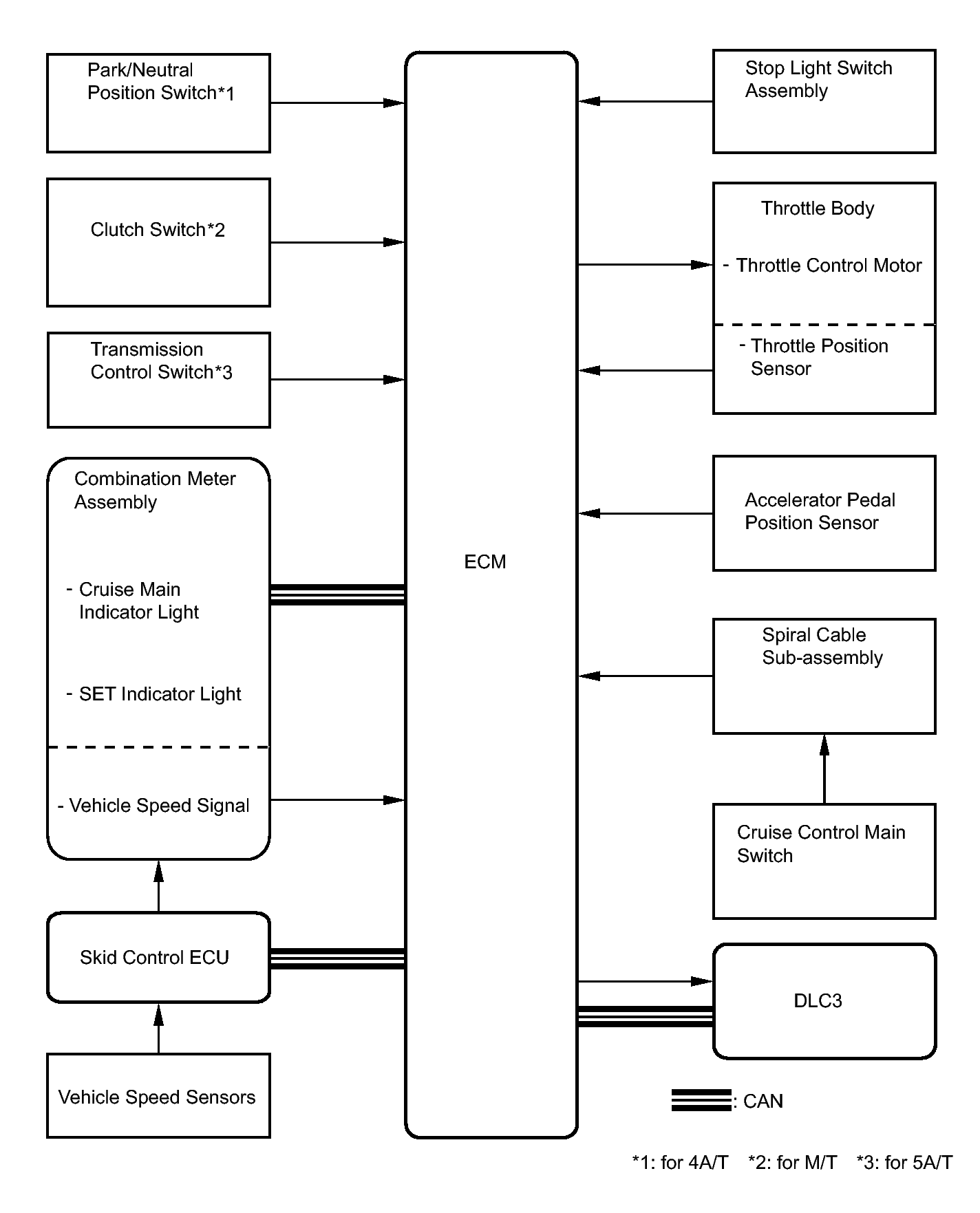

Fig 1: Cruise Control System Diagram

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
ECM	Combination Meter ECU	Cruise main indicator operation signal	CAN
