System Diagram

WARNING: This page is about a different car, the 2012 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

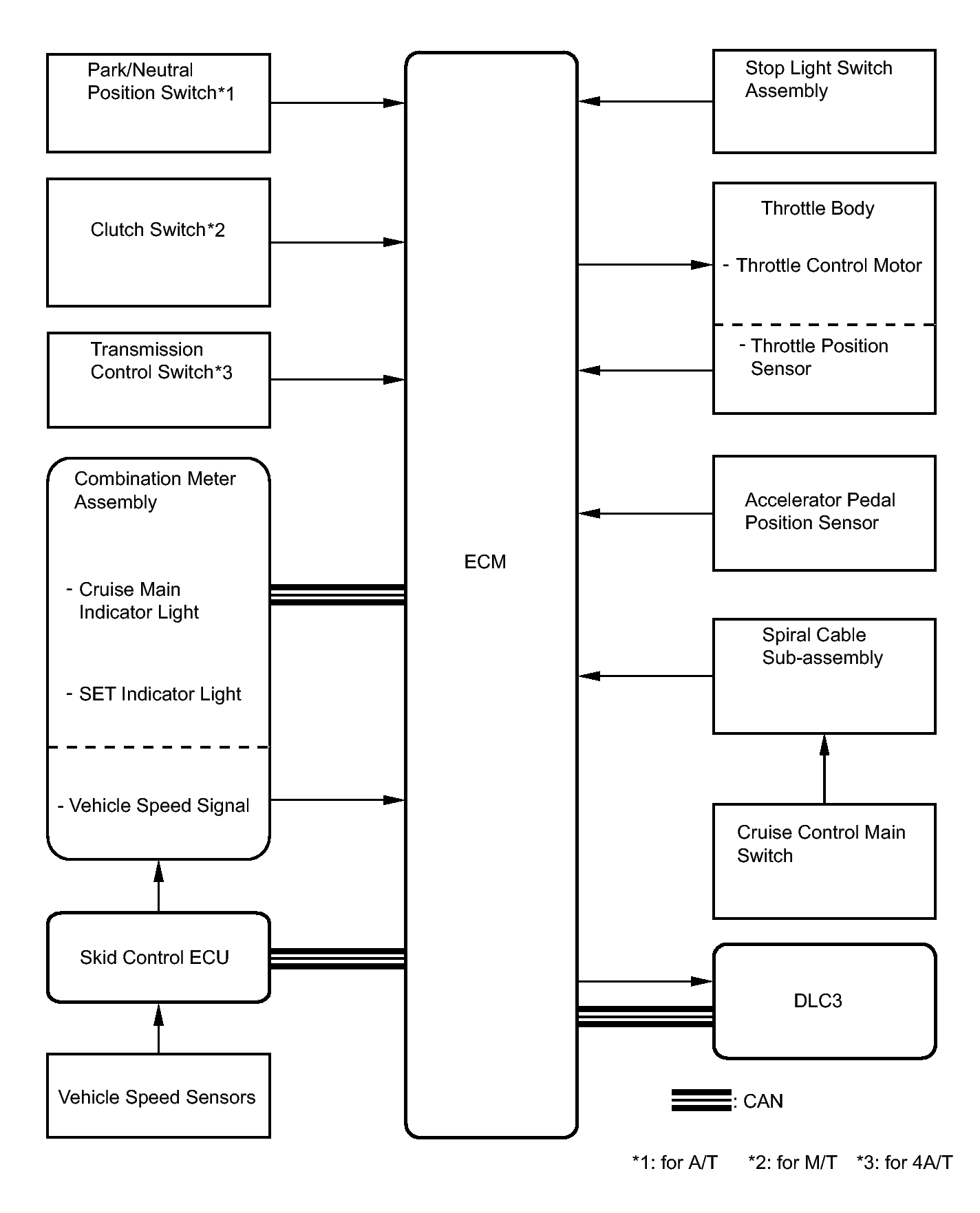

Fig 1: Identifying Cruise Control System Diagram
GTY315537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
ECM Combination Meter ECU Cruise main indicator operation signal CAN
