Back Window Glass: Components: Illustration

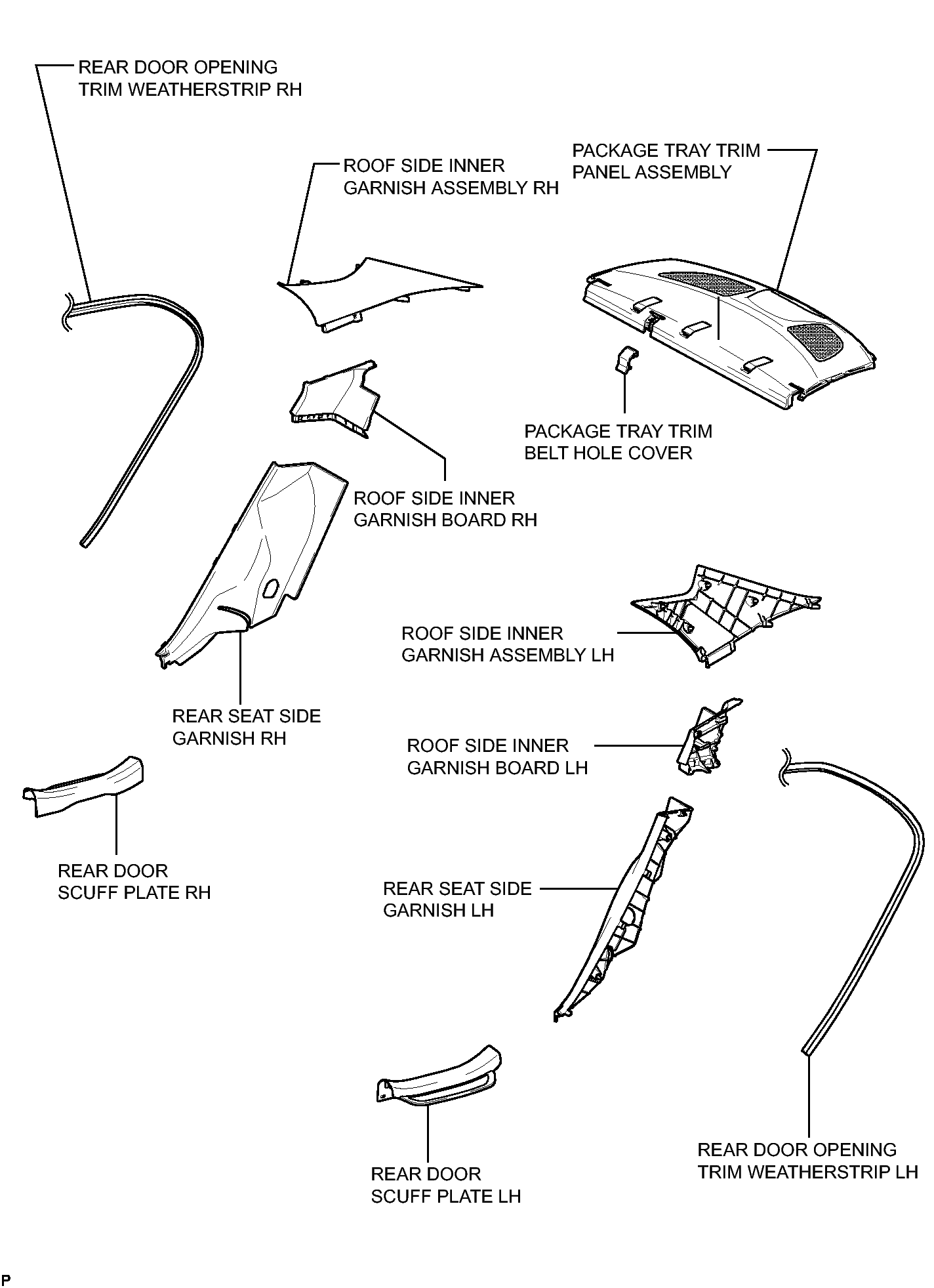

Fig 1: Identifying Back Window Glass Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

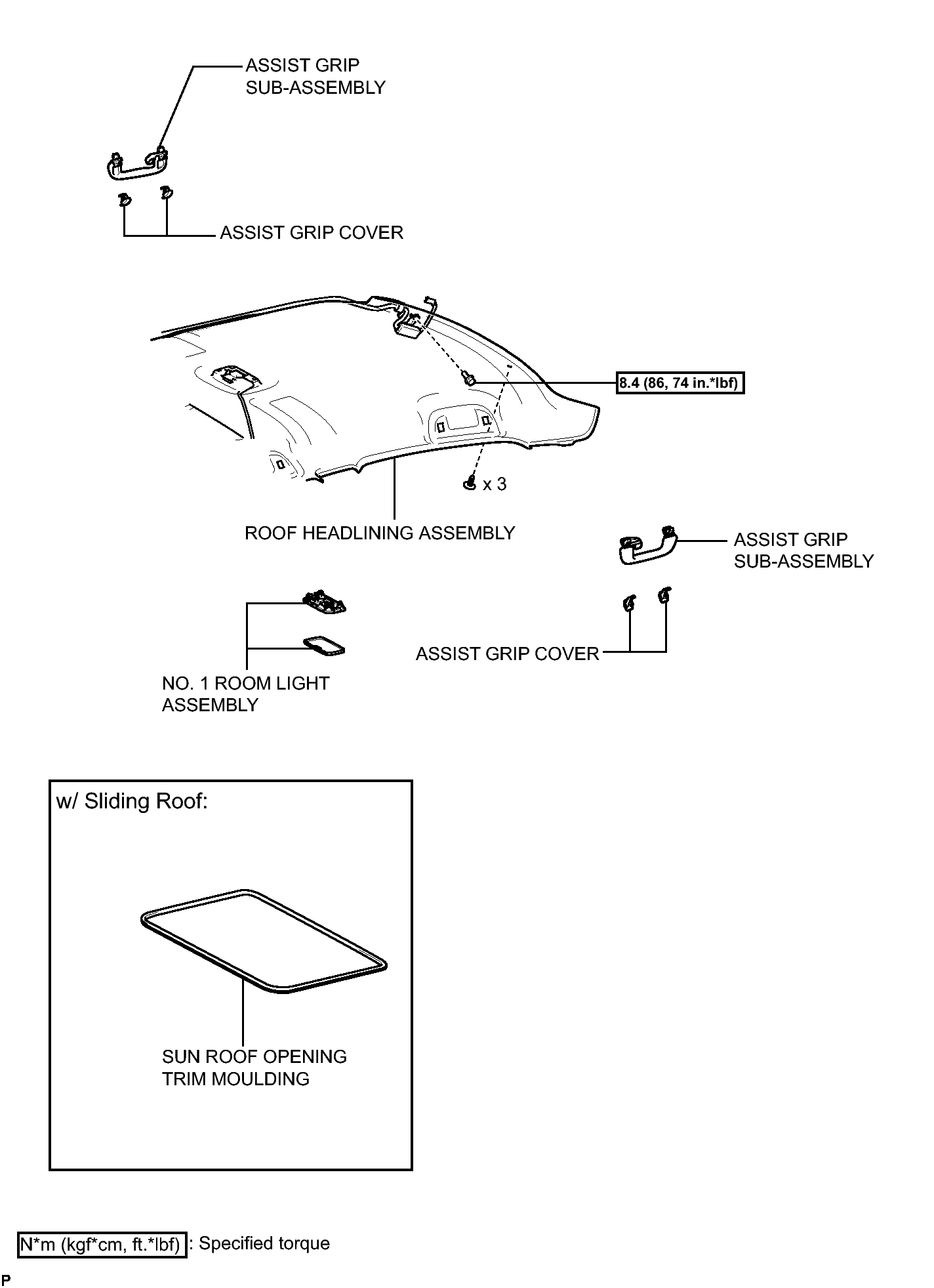

Fig 1: Identifying Back Window Glass Replacement Components (2 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

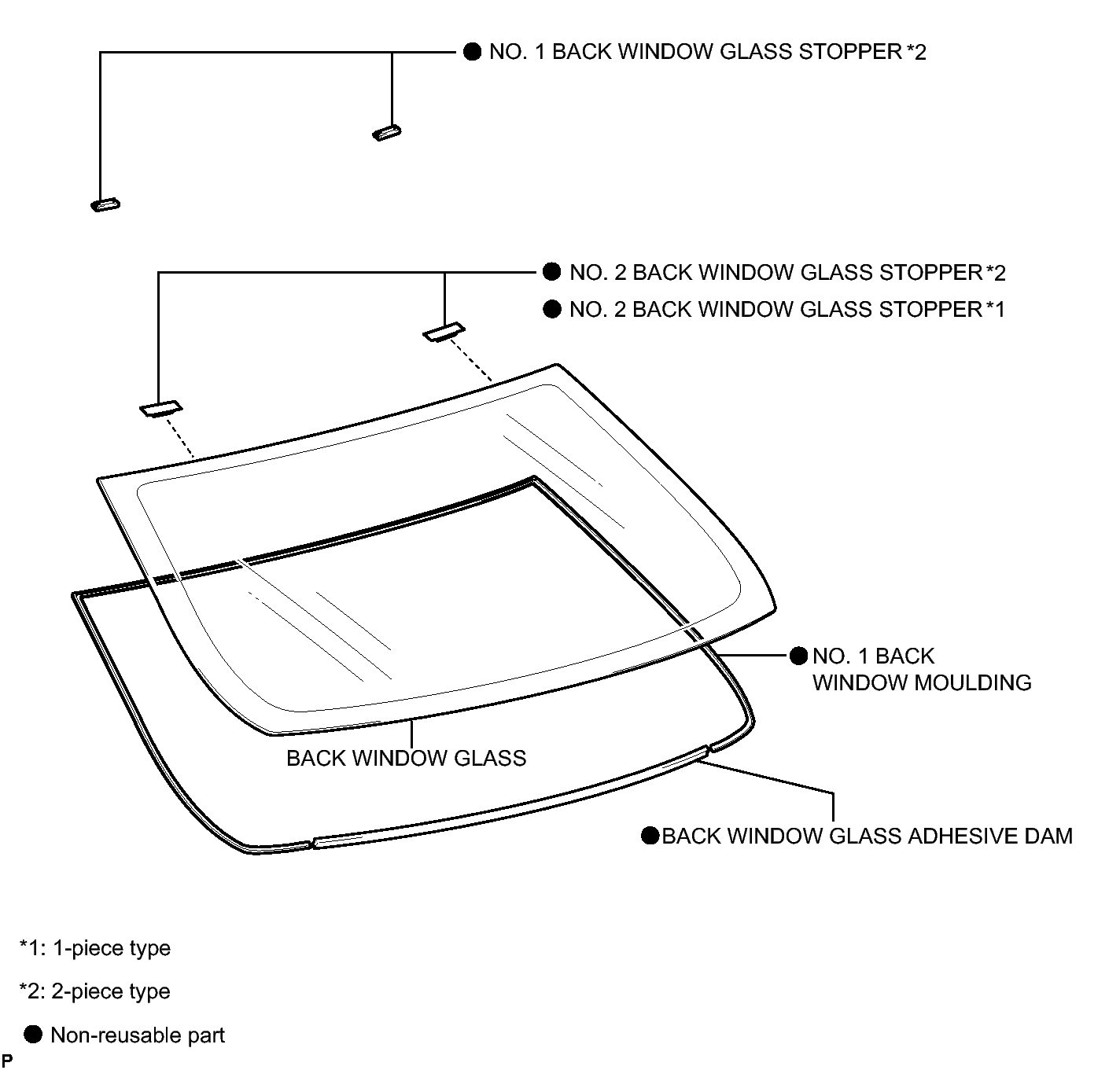

Fig 1: Identifying Back Window Glass Replacement Components With Torque Specifications (3 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

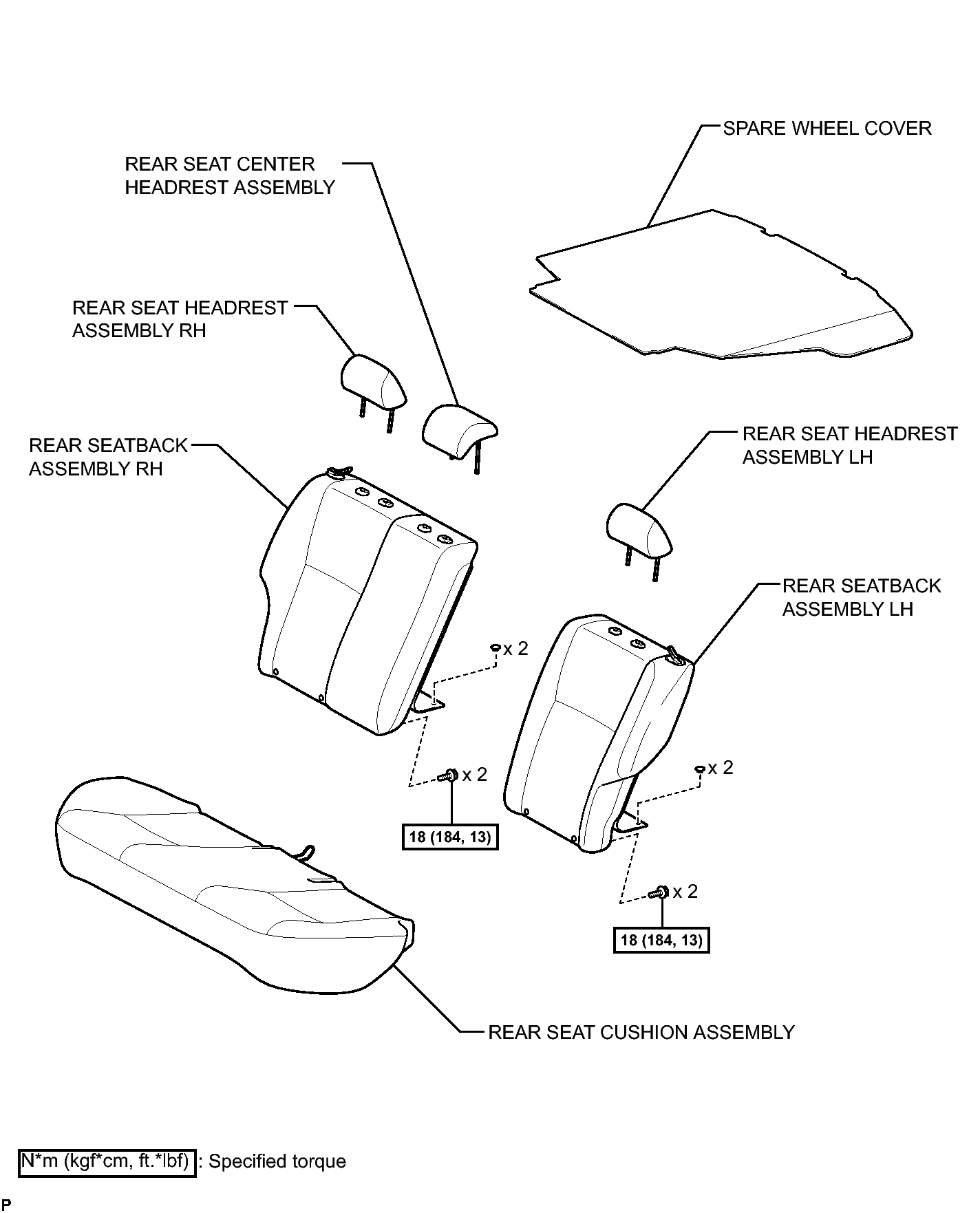

Fig 1: Identifying Back Window Glass Replacement Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
