Data Link Connector 3 (TMC Made): Notes

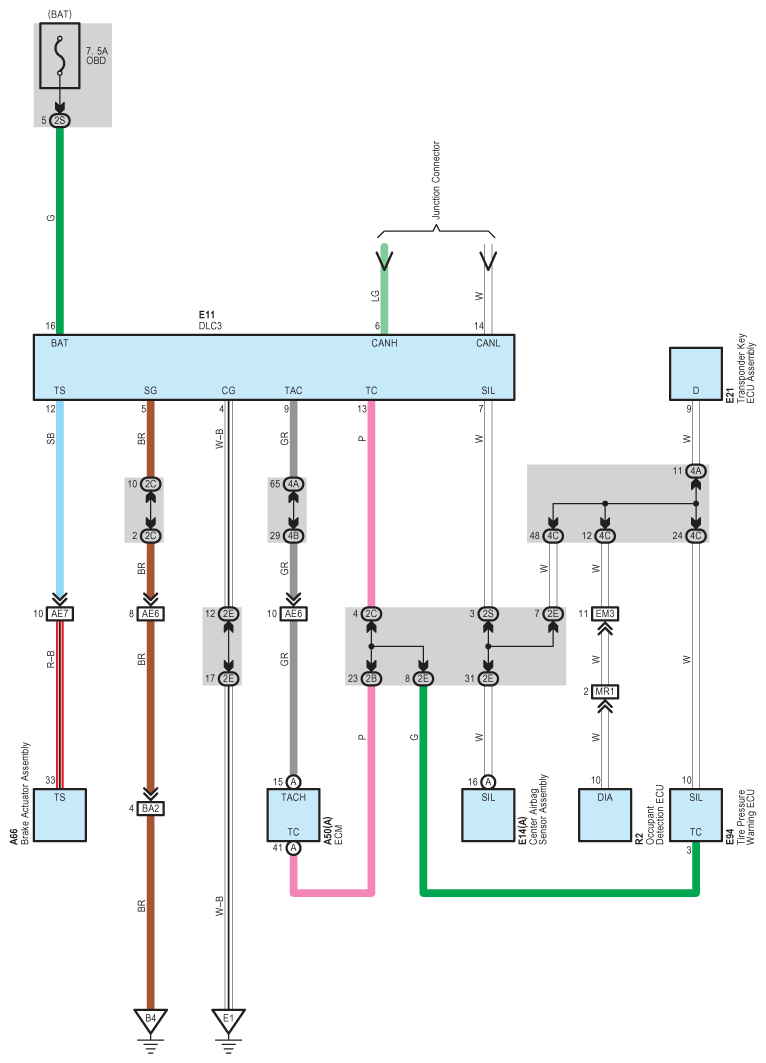

Fig 1: Data Link Connector 3 System Wiring Diagram (TMC Made)
G08842738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
